ChamSys GeNetix 10Scene Contact 10x Trigger / 2x 10Scene Ports DIN Mount

Name: ChamSys GeNetix 10Scene Contact 10x Trigger / 2x 10Scene Ports DIN Mount
Brand: ChamSys
Price: 1148178.72 GBP
Availability: InStock

Price Each £956,815.60 (£1,148,178.72 Including VAT at 20%)

REF: JP113296

Quantity:

ChamSys GeNetix 10Scene Contact 10x Trigger / 2x 10Scene Ports DIN Mount

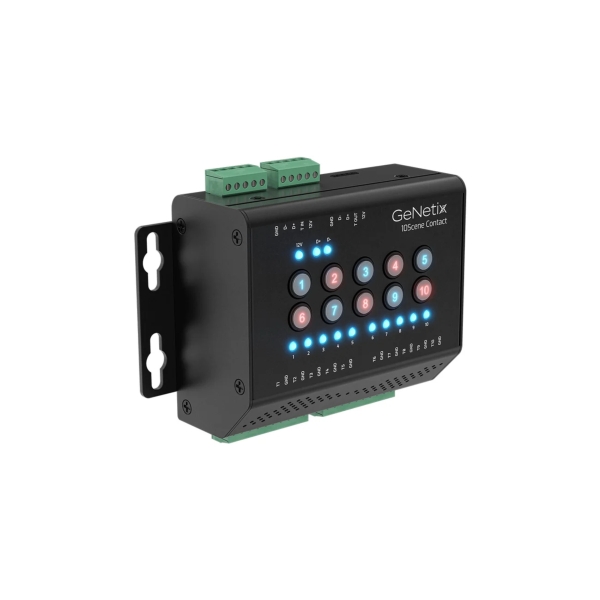

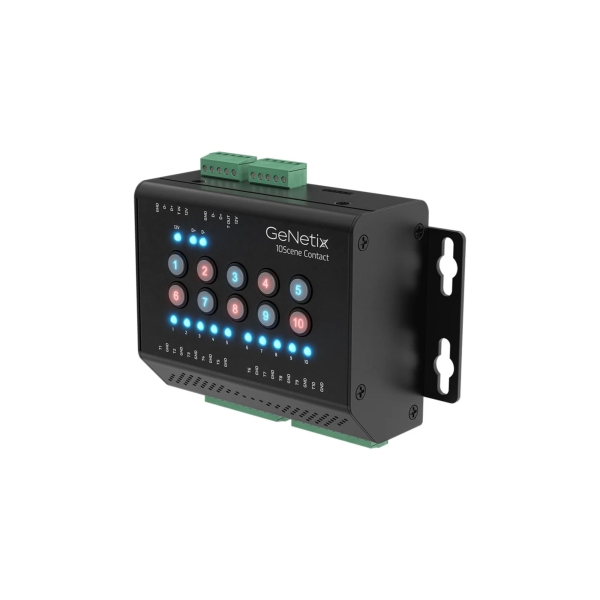

The ChamSys GeNetix 10Scene Contact 10x Trigger / 2x 10Scene Ports DIN Mount is a DIN rail mountable 10-input dry contact trigger interface that integrates ChamSys control solutions, enabling MagicQ and QuickQ Playbacks and Executes to be triggered by open/close contacts, as well as triggering scenes on GeNetix GN5 and GN10 nodes.

Its two 10Scene Ports allow the interface to be daisy-chained with 10Scene Wall Plates and up to ten 10Scene Contacts per chain, all connected via the 10Scene Protocol that also powers the interface.

10Scene Contact provides a user-friendly and easily-integrated solution for adding external dry contact trigger remote control to MagicQ, QuickQ, and GeNetix systems.

Click Here for Printer Friendly Version

ChamSys GeNetix 10Scene Contact 10x Trigger / 2x 10Scene Ports DIN Mount Features

- 10 Open/Close Contact Trigger Inputs
- Compatible with MagicQ / QuickQ and GN5/GN10 GeNetix Nodes
- Connects via 10Scene Protocol
- Daisy chain together with 10Scene Wall Plates and 10Scene Contacts
- Triggers either Playbacks or Executes when connected to MagicQ or QuickQ Systems
- Triggers Scenes on GeNetix GN5/GN10 Nodes

ChamSys GeNetix 10Scene Contact 10x Trigger / 2x 10Scene Ports DIN Mount Specifications

Hardware Specifications:
- Contact Trigger Inputs: 10
- 10Scene Ports: 2
- 10Scene Test Buttons: 10
- Max No of 10Scene Contact or 10Scene Wall Plates per chain: 10

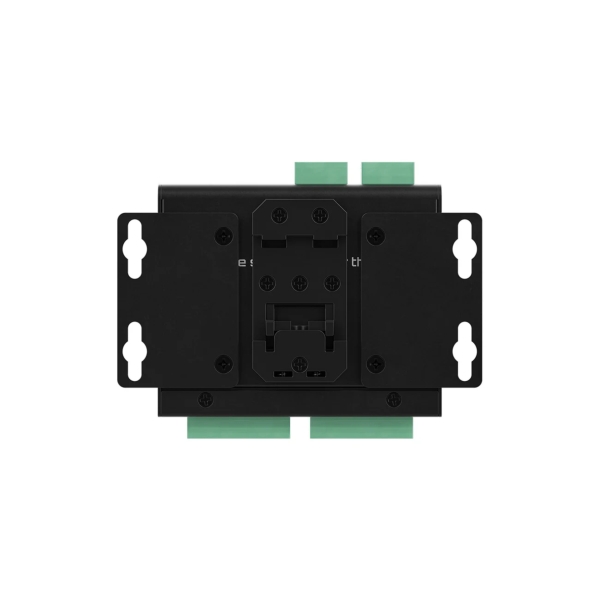

- DIN Rail Mounted: Yes
- Powered via 10Scene Protocol: Yes

Software Specifications:
- Compatible with QuickQ Consoles/Rack: Yes (via 10Scene connectors or via Gateway)
- Compatible with both MagicQ Consoles/Rack: Yes (via 10Scene connectors or via Gateway)
- Compatible with GN5/GN10/GN10P/GN10R: Yes

Weights and Dimensions:
- Width: 104mm (4.09 inches)
- Depth: 87mm (3.42 inches)
- Height Inc DIN Clip: 65mm (2.55 inches)
- Weight: 0.4 KG (0.88 lb)
