ChamSys MediaMaster VS1+ 4K Media Server

ChamSys MediaMaster VS1+ 4K Media Server Features

- 4K Video Output

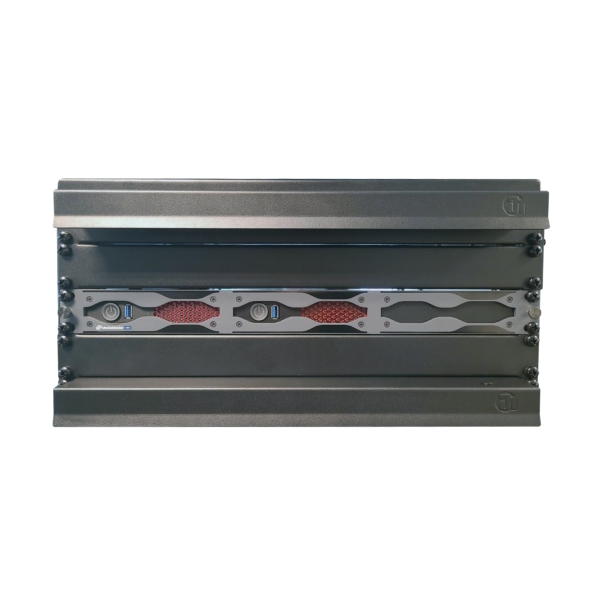

- Mount 3 Units in a 1U Rack Footprint
- MediaMaster Pro Software
- Includes LED Mapper & Video Mapper
- NDI Support

ChamSys MediaMaster VS1+ 4K Media Server Specifications

Hardware Specifications:
- Processor: Intel i7, 2.8 GHz
- Threads (Cores): 8 (4)
- RAM: 16GB (2x 8GB Crucial)
- RAM Type: DDR4 3200 MHz SODIMM
- Graphics Card: Intel Integrated Graphics
- Power Input: powerCON TRUE1 110 to 240 VAC
- Max Power Consumption (mains): TBC
- System Drive: 500GB SSD
- Storage Drive: Uses System Drive
- System Restore Drive: No
- Interface Output: 1 x HDMI 2K
- Media Output: 1 x HDMI 4K
- Ethernet Output: 1 x 2,5 GB/s
- Front USBs: 1 - USB 3.0 A Type
- Rear USBs: 2 x USB 3.0 A Type , 2 x USB-C

Software Specifications:
- Operating System: Windows 11 Pro
- MediaMaster Software: Pro
- Playback Layers: 48
- Surfaces: 250
- Outputs: 1
- Presets: 4096
- LED Mapper: Yes
- King Net Mapper: Yes
- Video Mapper: Yes
- Soft Edge / Geometric Correction: Yes
- CITP/MSEX: Yes
- NDI5 : Yes
- GDTF Personality Export: Yes
- Factory System Restore: Yes

Control:
- Art-Net: Yes
- sACN: Yes
- Stand Alone Keyboard Control: Yes
- DMX Control: Optional MagicDMX
- Front Panel Control: No

Weights and Dimensions:
- Width: 143mm (5.63 inches)
- Depth: 195mm (7.68 inches)
- Height: 43mm (1.69 inches) - 1U High
- Weight: 1.28 kg (2.82 lb)

Further Product Information Below

ChamSys MediaMaster Manual (PDF)

ChamSys MediaMaster VS1+ Data Sheet (PDF)
