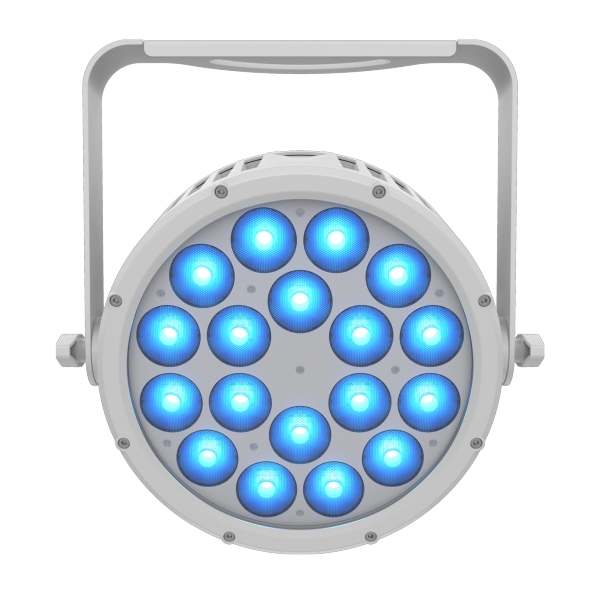

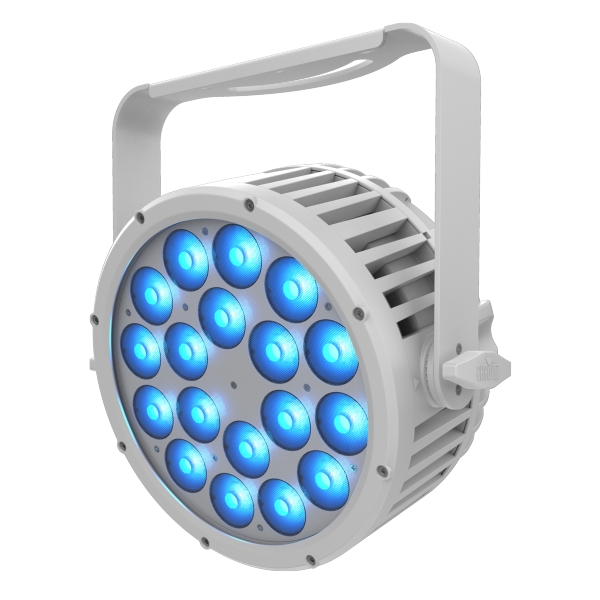

Chauvet Pro COLORdash Par H18X M RGBWA-UV LED Wash with C5-X Marine Grade Coating - IP67

Chauvet Pro COLORdash Par H18X M RGBWA-UV LED Wash Features

- Built For Coastal Environments: A specialized C5-X marine-grade coating and IP67-rated housing provide superior protection against salt spray, humidity, and extreme weather conditions.

- Expansive Color Palette: The six-color RGBWA-UV LED system produces a massive spectrum of colors, including brilliant whites and vibrant ultraviolet for dynamic visual effects.

- Flicker-Free Operation: Adjustable Pulse Width Modulation (PWM) and smooth dimming curves ensure flawless on-camera performance, free of flicker or choppiness in fades.

- Flexible Setup And Control: An OLED touchscreen display simplifies direct configuration, while RDM capability allows for remote addressing and management in complex lighting rigs

Chauvet Pro COLORdash Par H18X M RGBWA-UV LED Wash Specifications

Optical:
- Light Source: 18 LEDs (HEX-color RGBWAUV) 12 W
- Color Temperature (range): 2800 to 10,000K
- Color Temperature (at full): 8017 K
- Beam Angle: 25.2 °
- Field Angle: 39.4 °
- Lumens: 6485 lm
- Illuminance: 1259 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes

Connections:

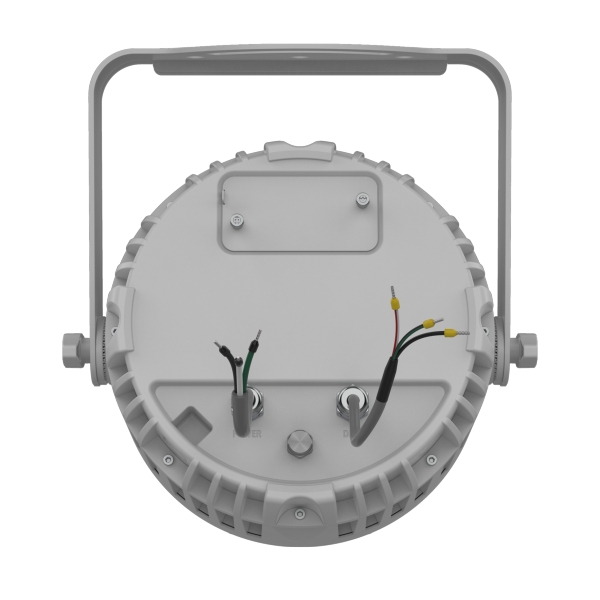

- Power Connection: Bare wired to Neutrik powerCON or Neutrik powerCON TRUE1 Compatible or Seetronic Powerkon (powerCON Compatible)
- Data Connectors: Bare Wire
- Cable Length:
- Cable Length (signal): 5 ft (1.5 m)
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 6, 8, 9, 13 or 14
- Modes/Personalities: 5 personalities (6ch, 8ch, 9ch, 13ch, 14ch)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 151 W, 0.666 A @ 230 V, 50 Hz

Certifications / Qualifications:
- CE, MET, FCC, UKCA
- IP Rating: IP67, outdoor/wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical:
- Exterior Color: White, C5-M Coated
- Housing Material: Aluminum diecast
- Dimensions: 254 x 254 x 140 mm
- Weight: 6.7 kg
