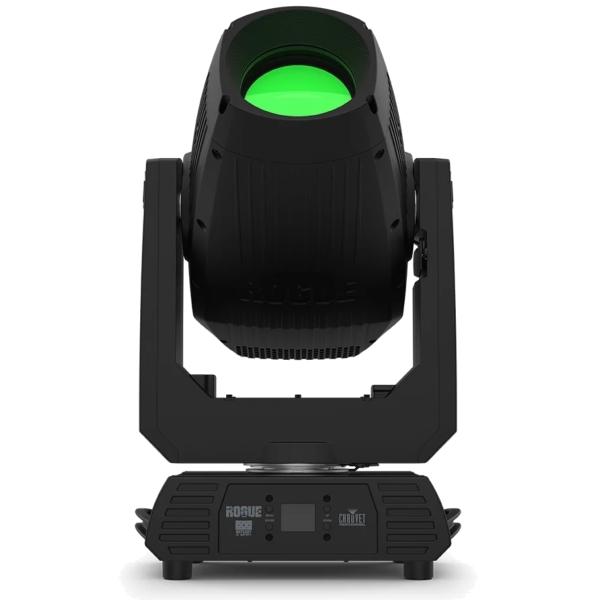

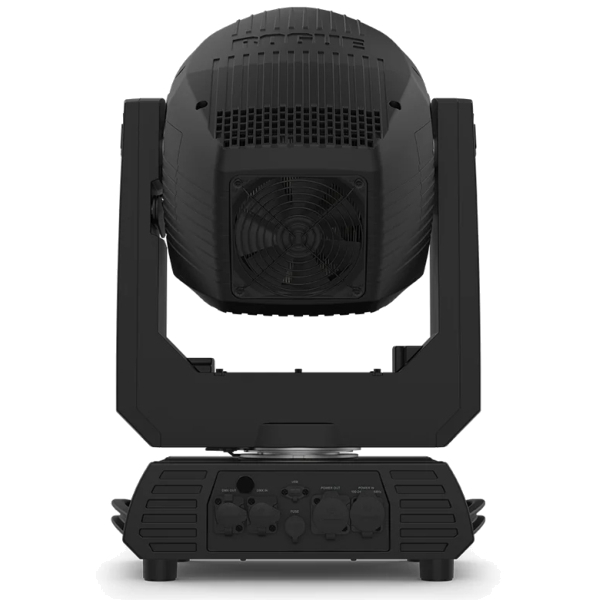

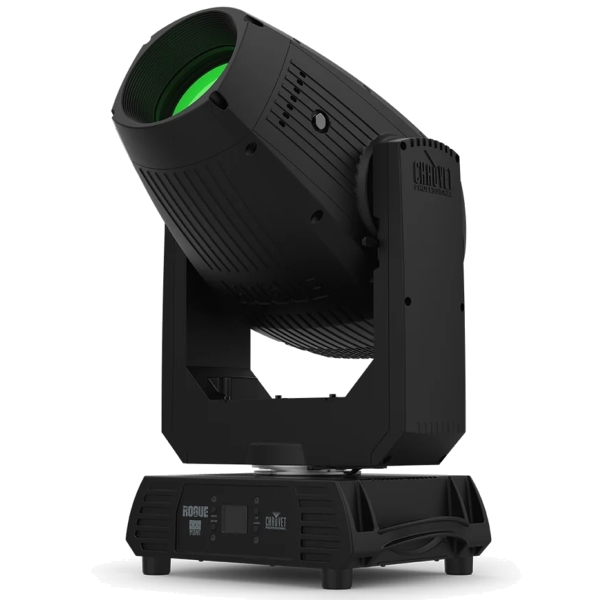

Chauvet Pro Rogue Outcast 3 Spot v2 300W Moving Head, IP65

Chauvet Pro Rogue Outcast 3 Spot v2 Features

- IP65 Rated Construction: This LED spot is encased in a lightweight aluminium and magnesium alloy, making it durable and ready for any environment.
- Wide Motorised Zoom Range: Offers a flexible zoom range from 4.9 ° to 38.7 ° to easily cover stages and surfaces from a distance.
- Seamless Gobo Morphing: Achieve perfect transitions and morphing effects between the two gobo wheels for dynamic visuals.
- Dual Colour Wheels: Features two independent wheels with seven colours each, plus split-colour ability and continuous variable speed scrolling.
- Dual Gobo Wheels: Expand your creative options with one fixed scrolling gobo wheel and one rotating, interchangeable gobo wheel.
- Advanced Beam Control: Shape and modify the beam with a built-in iris, a 5-facet prism, and a frost filter for wash effects.
- High Resolution 16-Bit Dimming: Create exceptionally smooth fades and achieve ultimate lighting control with beautiful 16-bit LED dimming.
- Weatherproof Power Linking: Safely link power between multiple units in any environment using IP65 rated input and output connections.
- Professional DMX Connections: Integrates easily into professional lighting rigs with standard 5-pin DMX input and output connections.
- Remote Device Management: RDM is enabled for convenient remote addressing and troubleshooting directly from your console.
- Flicker-Free On Camera Operation: Selectable PWM settings ensure your lighting remains completely flicker-free for broadcast and recording applications.
- Versatile DMX Profiles: Choose between simple and complex DMX channel profiles for ultimate programming flexibility and control.
- Easy Software Updates: Keep your fixture's software current with a convenient onboard USB-C port for easy uploads

Chauvet Pro Rogue Outcast 3 Spot v2 Specifications

Optical:
- Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy.
- Colour Temperature (at full): 7044 K
- Front lens diameter: 119 mm
- CRI: 70
- Beam Angle: 4.9 ° to 33.7 °
- Field Angle: 5.5 ° to 38 °
- Cutoff Angle: 5.6 ° to 38.7 °
- Zoom Range: 4.9 ° to 38.7 °
- Lumens - Source: 20,000
- Lumens - Output: 14,989
- Illuminance (4.9 °): 56,916lux @ 5 m
- Illuminance (38.7 °): 2,145 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects:
- Pan and Tilt: 540 °/270 °
- Pan and Tilt Ranges: 180 °, 360 °, 540 ° pan / 90 °, 180 °, 270 ° tilt
- Colours (1): 7 + white, split colours, continuous scroll at variable speeds
- Colours (2): 7 + white, split colours, continuous scroll at variable speeds
- Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 0.6 mm (max. thickness)
- Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorised
- Focus: Motorised
- Frost: Motorised
- Iris: Motorized
- Prism: 5 Facets, motorised, rotating
- Strobe Rate: 0 to 20 Hz
- Move in Black: Yes

Connections:
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 20 or 25
- Modes/Personalities: 2 personalities (20, 25)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 6 units @ 230 V
- Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz

Certifications / Qualifications:
- CE, MET, UKCA
- IP Rating: IP65, temporary outdoor/ wet, with pressure equalising
- M12 GORE valve
- Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
- Maximum Exterior Surface Temperature (Tc): 80 ° C / 176 ° F
- Maximum Ambient Temperature (ta): 45 ° C / 113 ° F

Physical & Dimensions:
- Exterior Colour: Black
- Housing Material: High-impact flame-retardant polymer
- Dimensions: 366 x 244 x 639 mm
- Weight: 23.2 kg

Further Product Information Below

Chauvet Pro Rogue Outcast 3 Spot v2 Quick Reference Guide (PDF)

Chauvet Pro Rogue Outcast 3 Spot v2 DMX Chart (PDF)

Chauvet Pro Rogue Outcast 3 Spot v2 Photometrics (PDF)

Chauvet Pro Rogue Outcast 3 Spot v2 Supplied With

- Rogue Outcast 3 Spot
- Seetronic Powerkon IP65 power cord
- 2x Omega brackets with mounting hardware
