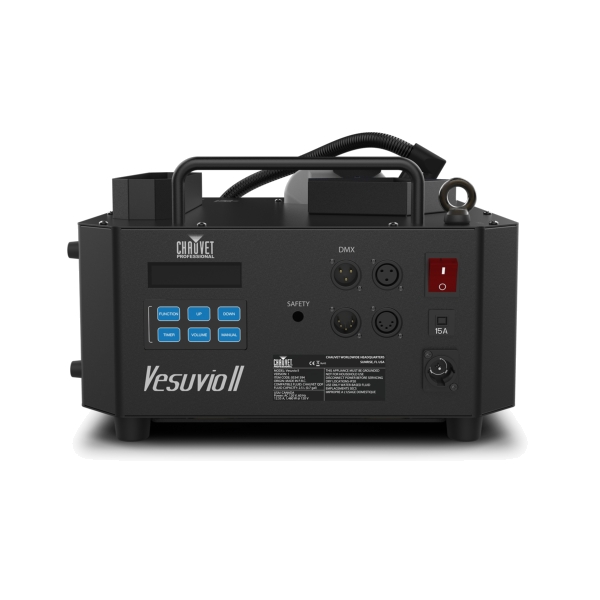

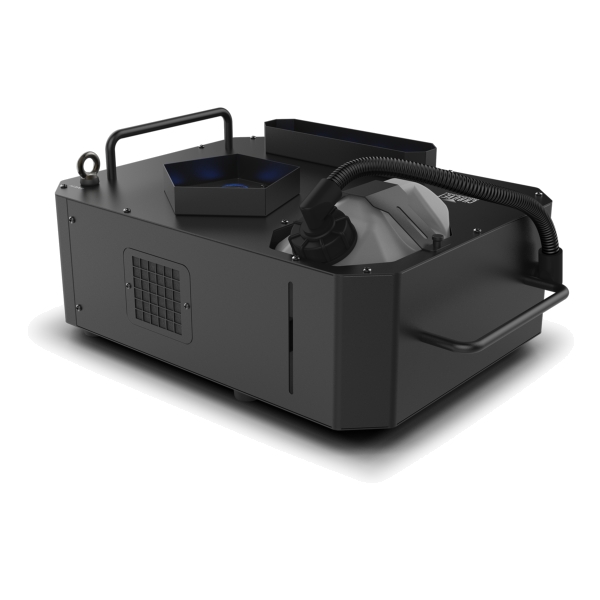

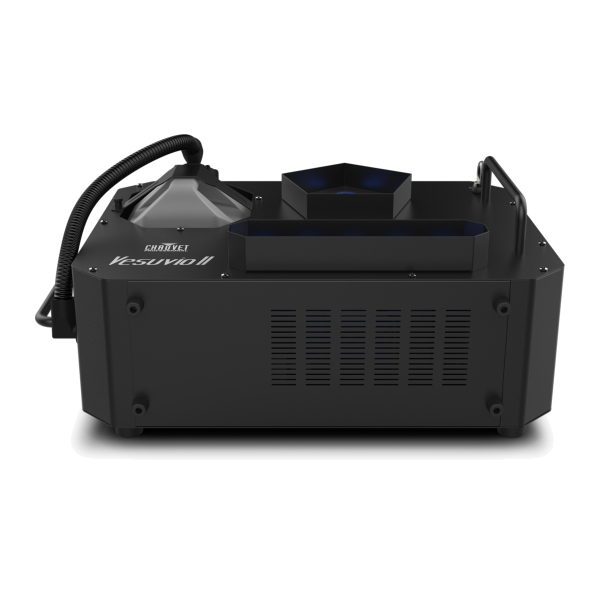

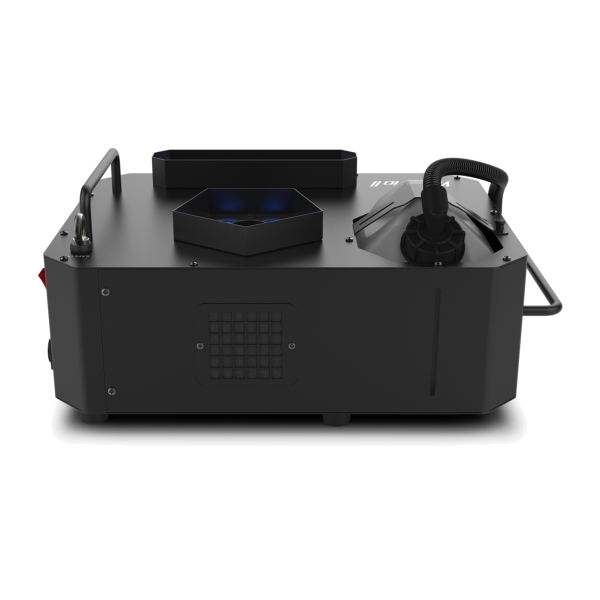

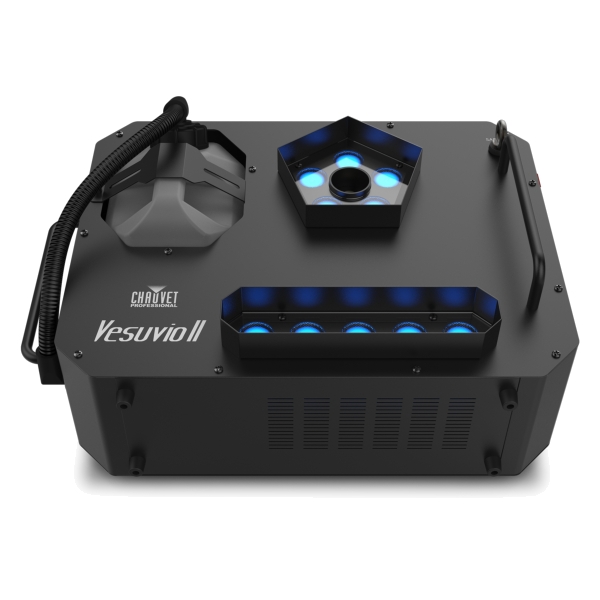

Chauvet Pro Vesuvio II Vertical Fogger with RGBA+UV LEDs

Chauvet Pro Vesuvio II Features

- Advanced Color Mixing: Utilizes red, green, blue, amber, and UV LEDs for a rich and expanded color palette.

- Continuous Fog Bursts: Produces an intense, 40-second continuous burst of fog to enhance any performance.

- High Volume Fog Output: Delivers a massive 40,000 CFM output, capable of filling large venues with dense fog.

- Large Fluid Capacity: Features a 2.5-liter fluid tank to ensure reliable, long-lasting operation during production.

- Robust Construction: Built with a strong and sturdy housing to withstand the rigors of various production environments.

- DMX Control: Integrates seamlessly into professional lighting setups with full DMX control for easy operation.

- Versatile DMX Connections: Includes both 3-pin and 5-pin DMX input/output connections for maximum compatibility.

- Dual LED sections with RGBA+UV sources provide vibrant, even illumination of fog plumes.
- Generates a massive 40,000 cfm output with an impressive 40-second continuous burst.
- Built for efficiency, consuming only 80 ml/min from its 2.5-liter fluid tank.
- Allows for vertical, horizontal, or overhead deployment with included mounting brackets.
- Provides full DMX control over 15 channels via 3-pin and 5-pin connectors.
- Features a robust housing built to withstand the rigors of touring and event production.

Chauvet Pro Vesuvio II Specifications

Optical:
- Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
- Illuminance (Centre): 199.5 lux @ 5 m
- Illuminance (Linear): 154 lux @ 5 m
- Illuminance (Both): 334 lux @ 5 m
- PWM Frequency: 126 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Output: 40,000 cfmLow Fluid Shutdown: No

Connections:
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX
- DMX Channels: 15
- Modes/Personalities: 1 personalities
- On-Board Control: Yes
- Included Remote: No

Electrical:
- Input Voltage (220V): 230 VAC, 50 Hz
- Power and Current (220V): 2,880 W, 12.55 A @ 120 V, 60 Hz
- Heat-up Time (220V): 10 min
- Breaker Size (220V): 15A

Certifications/Qualifications:
- CE
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Construction/Physical:
- Exterior Color: Black
- Housing Material: Steel
- Tank Capacity: 0.7 gal (2.5 l)
- Fluid Consumption: 80 ml/min
- Maximum Run time:
  - 1 hour @ 40s bursts, 1m intervals (using Chauvet QDF fluid)
  - 2 hours @ 40s bursts, 2m intervals (using Chauvet QDF fluid)
  - 2.5 hours @ 40s bursts, 3m intervals (using Chauvet QDF fluid)
- Dimensions: 495 x 335 x 239 mm
- Weight: 12.9 kg

Further Product Information Below

Chauvet Pro Vesuvio 2 Manual (PDF)

Chauvet Pro Vesuvio 2 Data Sheet (PDF)

Chauvet Pro Vesuvio 2 Quick Reference Guide (PDF)

Chauvet Pro Vesuvio II Supplied With

- Chauvet Vesuvio 2.0
- Seetronic Powerkon IP65 power cord
