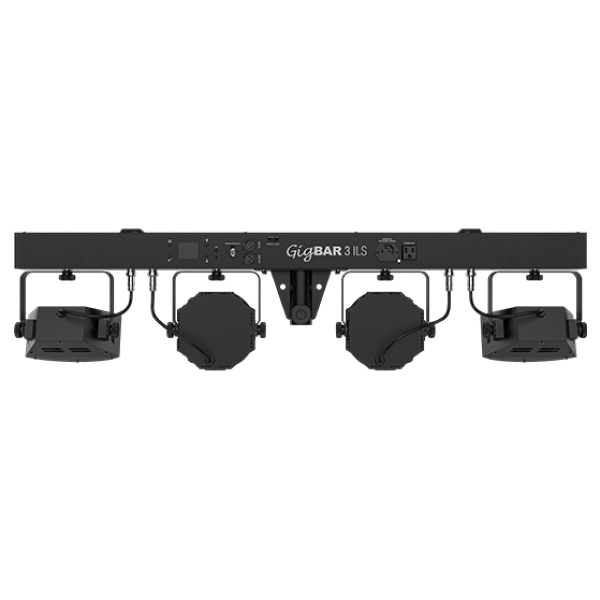

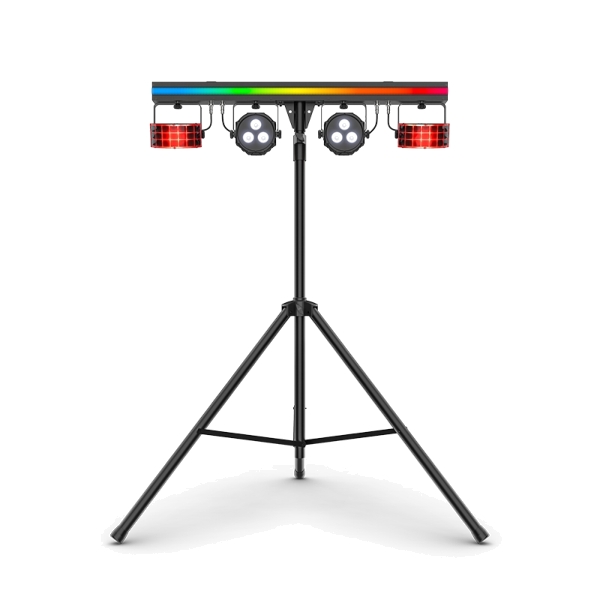

Chauvet DJ GigBAR 3 ILS Multi-Effects Lighting Bar

Chauvet DJ GigBAR 3 ILS Multi-Effects Lighting Bar Features

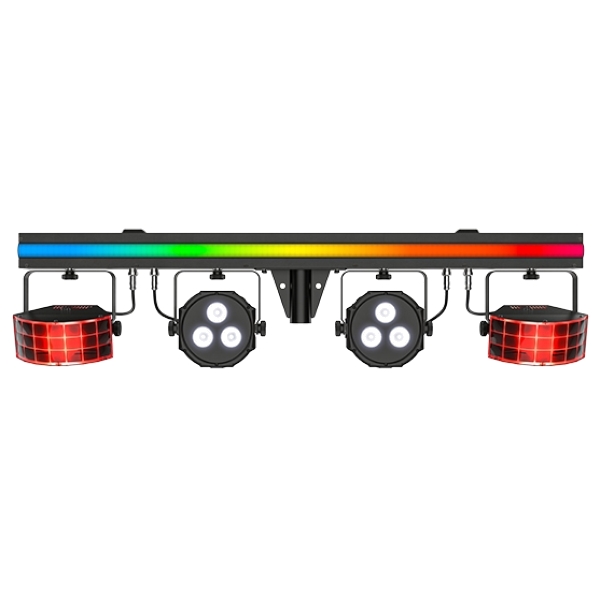

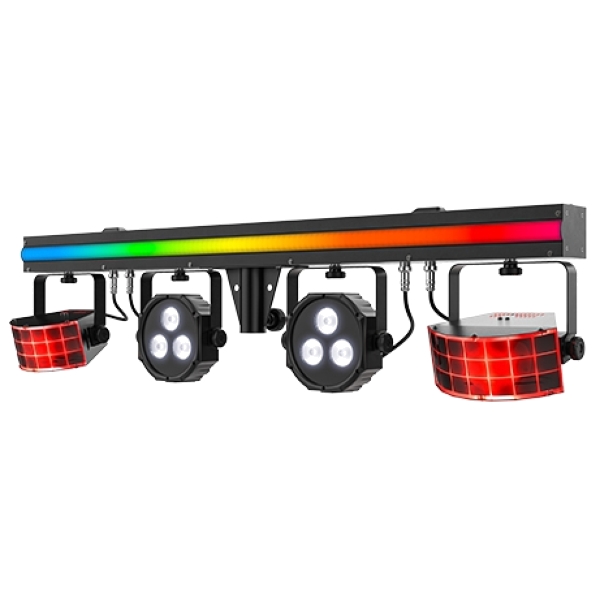

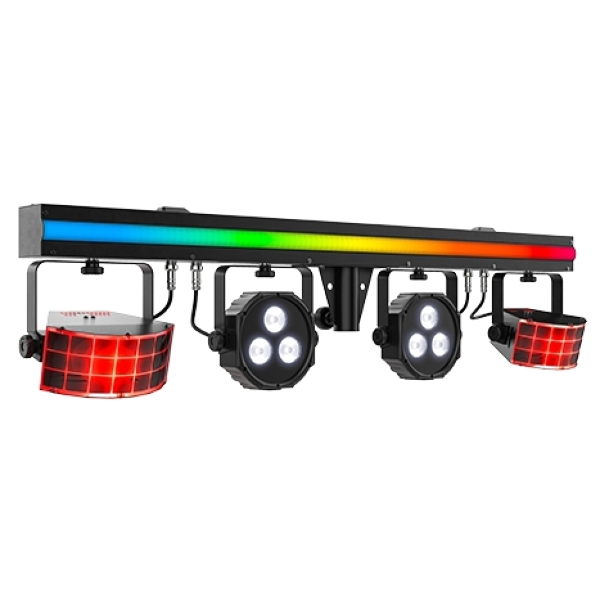

- 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar
- Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
- ILS compatibility for use in the ILS ecosystem
- Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly

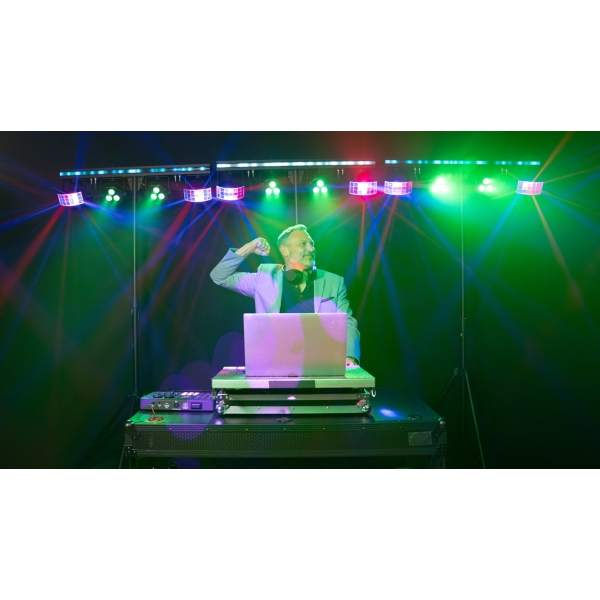

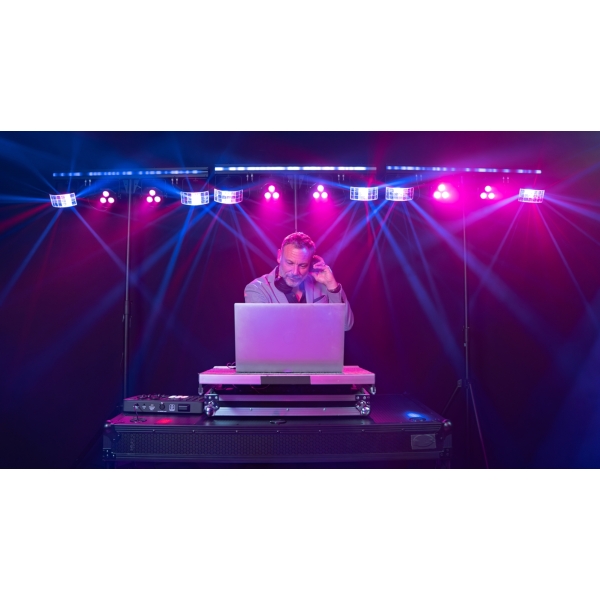

- Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
- Reversible tripod bracket allows for upside down mounting
- Easy navigation and access all functions directly from the full-color LCD display

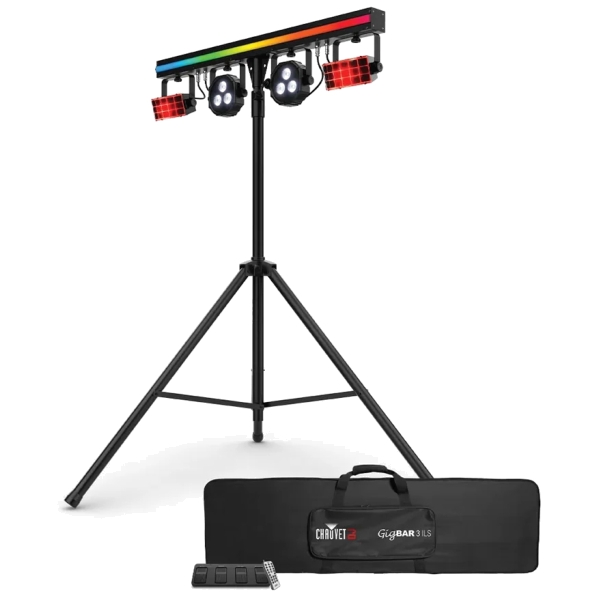

- Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags
- Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
- Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
- Save time running cables and extension cords by power linking multiple units

Chauvet DJ GigBAR 3 ILS Multi-Effects Lighting Bar Specifications

- DMX Channels: 2, 21, or 132
- DMX Connectors: 3-pin XLR
- Strobe Rate: 0 to 20 Hz
- Operating Frequency: 2.412 to 2.484 GHz
- Power Linking: 18 units 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 45 W, .4 A 230 V, 50 Hz
- Weight: 13.2 lbs. (6 kg)
- Size: 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
- Approvals: CE, ROHS, FCC
- Light Source (pars): 6 LEDs (quad-colour RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
- Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
- Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy

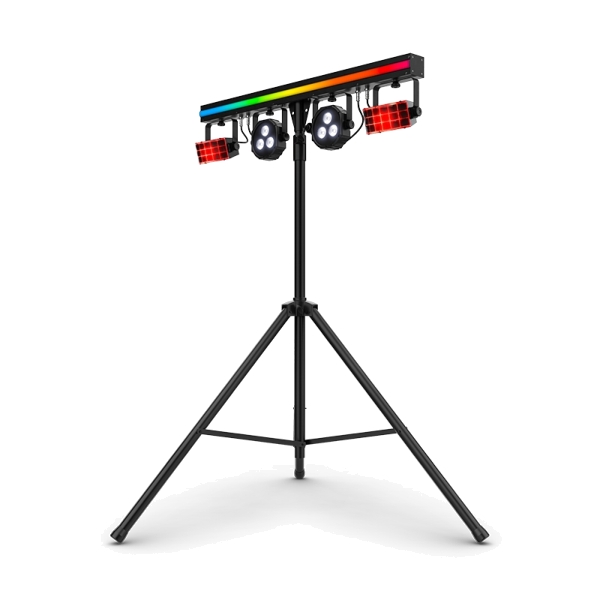

- Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
- Tripod Leg Width: 3.9 ft (1.2 m)
- Fits Tripod Size: 1.5 in (37.4 mm)
- Beam Angle (pars): 13°
- Field Angle (pars): 24°
- Coverage Angle (Derby): 114°
- Coverage Angle (LED Strip): 174°
- Cable Length: 9 ft (2.844 m)
- Foot Switch Operating Frequency: 433 MHz
- Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
- Footswitch battery: 9 V 300mA
- Optional Controllers: ILS Command, RF Remote

Further Product Information Below

Chauvet DJ GigBAR 3 ILS Manual (PDF)

Chauvet DJ GigBAR 3 ILS Data Sheet (PDF)

Chauvet DJ GigBAR 3 ILS Quick Reference Guide (PDF)

Chauvet DJ Core 5X1 ILS RGB+WW LED Wash/Effect Fixture Supplied With

- Chauvet Gig Bar 3 ILS
- Power cord
- Stealth filter
- Wireless footswitch
- RF remote
- Tripod
- Carrying bag
- Tripod bag
- User Manual
