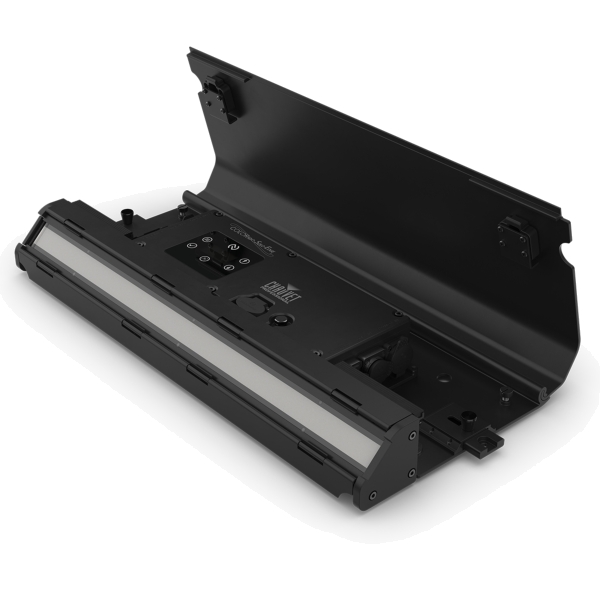

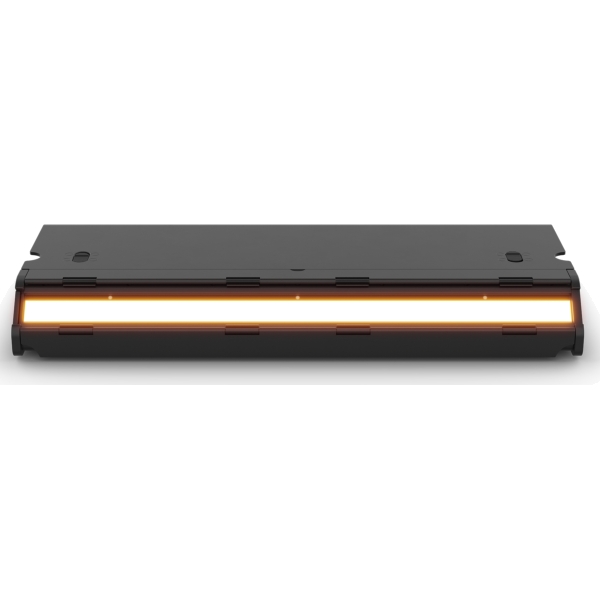

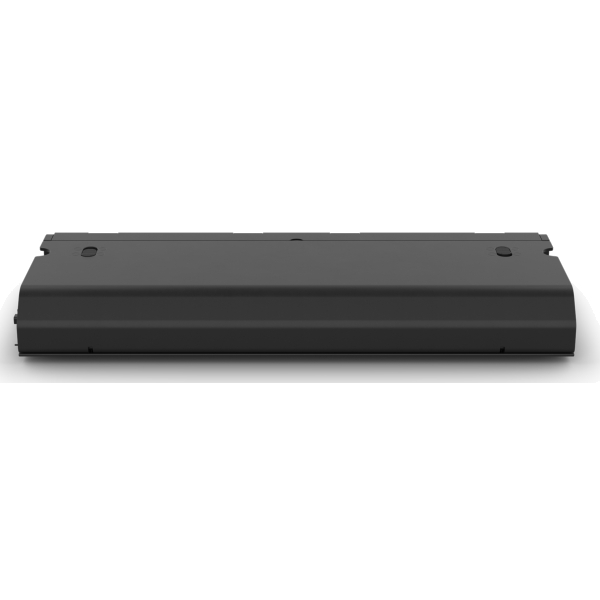

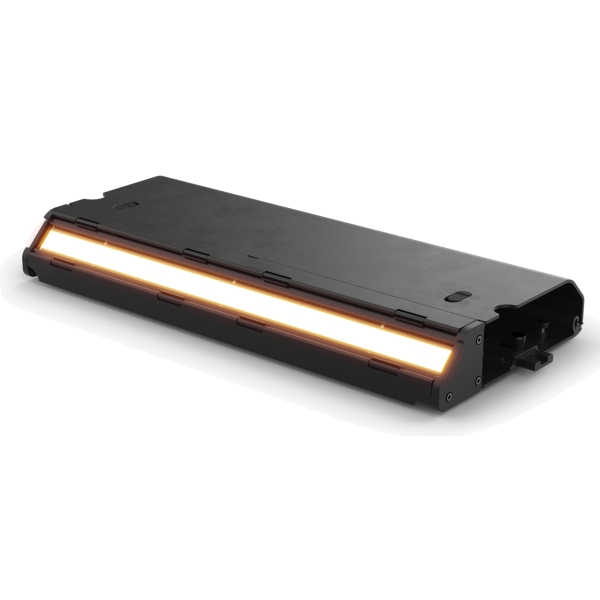

Chauvet Pro COLORado Solo Edge 1 RGBWL LED Footlight - IP65

Chauvet Pro COLORado Solo Edge 1 RGBWL LED Footlight Features

- Rugged, Low-Profile Design: Its IP65-rated, low-profile housing delivers high-quality white and full-color light for demanding indoor or temporary outdoor stage environments
- Smooth, Unobtrusive Output: A single-source lens produces smooth, even washes, while the included stealth filter helps the fixture visually disappear when not in use.
- Integrated Marker Lights: Use the fully controllable RGB marker lights to provide visual cues for performers or clearly define the edge of any stage.
- Seamless End-to-End Alignment: Create clean, uninterrupted lines of light with end-to-end connections and a covered display that conceals distracting cables and settings

Chauvet Pro COLORado Solo Edge 1 RGBWL LED Footlight Specifications

Optical:
- Light Source: 56 LEDs (Quintuple-colour-RGBwWL), K 20,000 hours life expectancy
- Colour Temperature (range): 2800 to 8000 K
- Colour Temperature (at full): 6350K
- CRI (2800): 96.2
- Beam Angle: 111.1° (Horizontal)
- Beam Angle: 120.1° (Vertical)
- Field Angle: 134.1 ° (Horizontal)
- Field Angle: 161.4° (Vertical)
- Lumens: 7,144
- Illuminance (total): 104 lux @ 5 m
- PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
- Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Framing Shutters: No
- Strobe Rate: 0 to 30Hz
- Standalone Colour Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: Yes
- Recall Custom Programs: Yes/No

Connections:
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: Art-Net, DMX, sACN
- DMX Channels:
  - 1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
  - 2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
- Art-Net Channels:
  - 1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
  - 2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
- Modes/Personalities: Personalities (22)
- Frequency (operating): 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking:
  - Power and Current: 126 W, 1.05 A @ 120 V, 60 Hz
  - Power and Current: 125 W, .61 A @208 V, 60 Hz
  - Power and Current: 125 W, .55 A @230 V, 50 Hz

Certifications / Qualifications:
- CE, MET, ROHS
- IP Rating: IP65, outdoor/wet, with pressure equalizing M6 GORE valve
- Temperature (Ambient): 5 °F to 113 °F (-15 °C to 45 °C)

Construction / Physical:
- Dimensions: 500 x 225 x 64 mm
- Weight: 5.7kg
- Exterior Colour: Black
- Housing Material: Aluminium alloy and Aluminium diecast

Further Product Information Below

Chauvet Pro COLORado Solo Edge 1 Manual (PDF)

Chauvet Pro COLORado Solo Edge 1 Quick Reference Guide (PDF)

Chauvet Pro COLORado Solo Edge 1 DMX Chart (PDF)

Chauvet Pro COLORado Solo Edge 1 RGBWL LED Footlight Supplied With

- Chauvet COLORado Solo Edge 1
- Seetronic Powerkon IP65 power cord
- Power and Data linking cables
- Stealth Filter
- Omega bracket with mounting hardware
