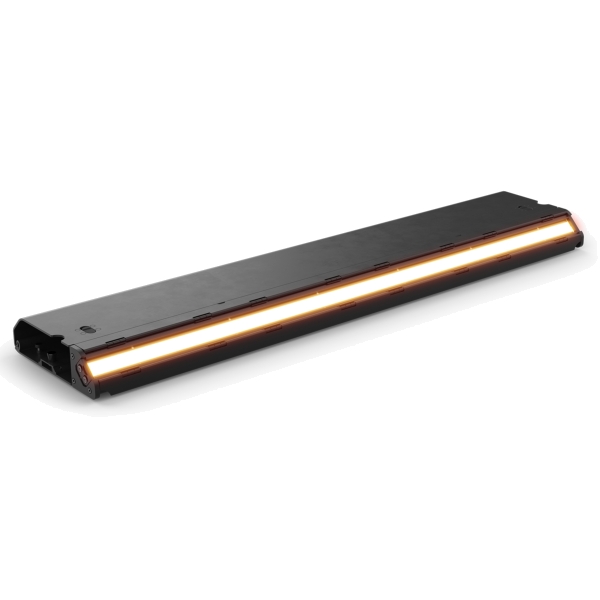

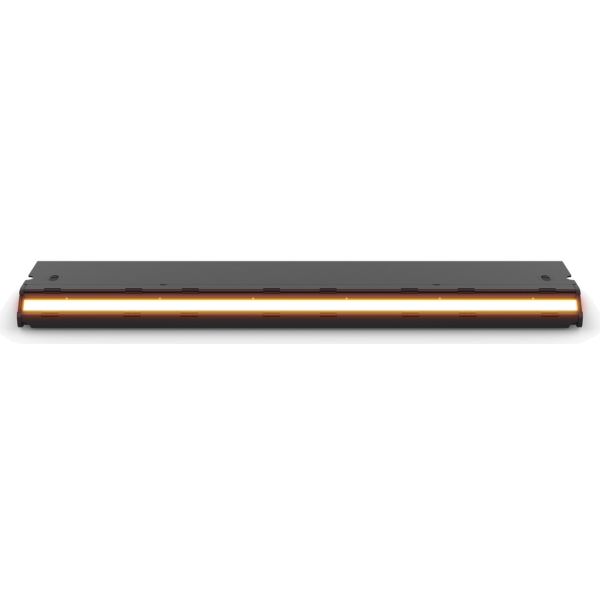

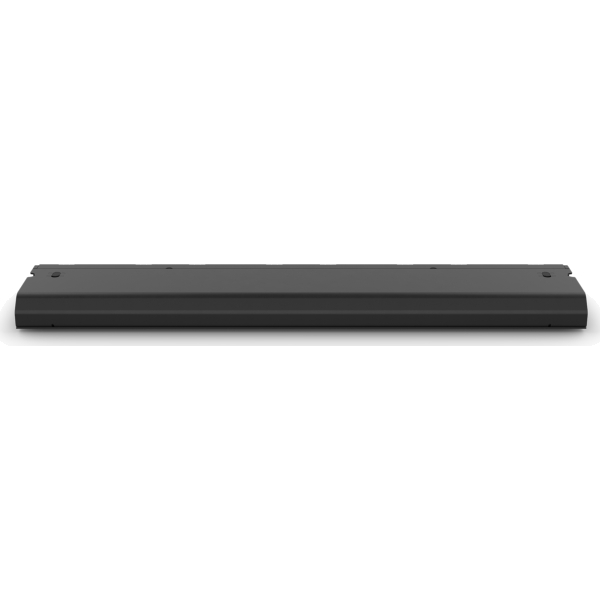

Chauvet Pro COLORado Solo Edge 3 RGBWL LED Footlight - IP65

Chauvet Pro COLORado Solo Edge 3 RGBWL LED Footlight Features

- Low-profile, 1m, IP65 rated footlight with full-color and high-quality white light
- Single-source lens for smooth, even output with no distracting points of light and an additional "stealth" filter to help the fixture disappear when off
- Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage

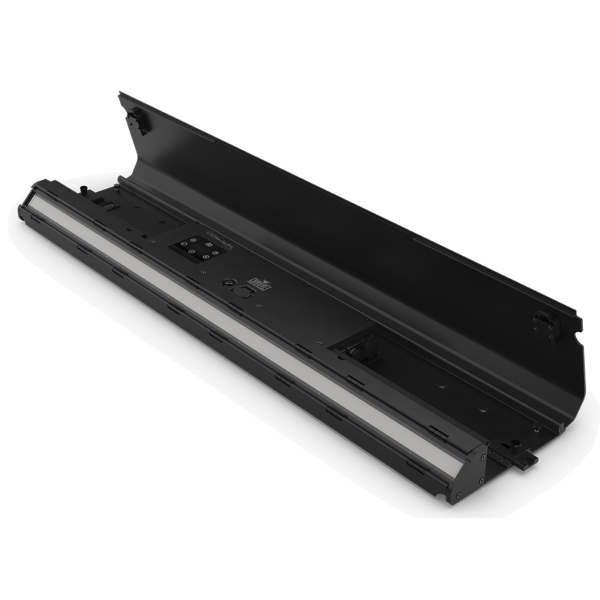

- Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen
- High-Quality Theatrical Light: An advanced RGBwWL LED system delivers a full color spectrum and high-CRI white light, all housed in a rugged IP65-rated frame.
- Smooth, Unseen Output: A single-source lens produces smooth, even washes, while the included stealth filter helps the fixture visually disappear when not in use.
- Integrated Stage Markers: Fully controllable RGB marker lights are built directly into the fixture to provide clear visual cues for talent or define stage boundaries.
- Seamless End-To-End Design: Create perfectly aligned, gapless arrays with end-to-end connections and a covered display that keeps the focus on the light, not the hardware

Chauvet Pro COLORado Solo Edge 3 RGBWL LED Footlight Specifications

Optical:
- Light Source: 112 LEDs (Quintuple-colour-RGBWL) , K 20,000 hours life expectancy
- Colour Temperature (range): 2800 to 8000 K
- Colour Temperature (at full): 6600 K
- CRI (2800): 93
- Beam Angle: 111° (Horizontal)
- Beam Angle: 120° (Vertical)
- Field Angle: 134° (Horizontal)
- Field Angle: 161° (Vertical)
- Lumens: 17,698
- Illuminance (total): 221 lux @ 5 m
- PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
- Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Framing Shutters: No
- Strobe Rate: 0 to 30Hz
- Standalone Colour Mixing: Yes
- Colour Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: Yes
- Recall Custom Programs: Yes/No

Connections:
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: Art-Net, DMX, sACN
- DMX Channels:
  - 1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
  - 2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
  - 4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69
- Art-Net Channels:
  - 1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
  - 2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
  - 4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69
- Modes/Personalities: personalities (32)
- Frequency (operating): 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz or 25KHz

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 11 units @ 230 V
- Power and Current: 236 W, 1.06 A @ 230 V, 50 Hz

Certifications / Qualifications:
- CE, MET, ROHS
- IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): 4 °F to 113 °F (-15 °C to 45 °C)

Construction / Physical:
- Dimensions: 1000 x 225 x 64 mm
- Weight: 10 kg
- Exterior Colour: Black
- Housing Material: Aluminium alloy and aluminium diecast

Further Product Information Below

Chauvet Pro COLORado Solo Edge 3 Manual (PDF)

Chauvet Pro COLORado Solo Edge 3 Quick Reference Guide (PDF)

Chauvet Pro COLORado Solo Edge 3 DMX Chart (PDF)

Chauvet Pro COLORado Solo Edge 3 RGBWL LED Footlight Supplied With

- COLORado Solo Edge 3
- Seetronic Powerkon IP65 power cord
- Power and Data linking cables
- Stealth Filter
- Omega bracket with mounting hardware
