Chauvet Pro COLORdash PAR Bar 4 RGBWA+UV LED Bar

Chauvet Pro COLORdash PAR Bar 4 RGBWA+UV LED Bar Features

- Generates a comprehensive color palette, including true UV, from four high-power LED arrays.
- Offers flexible beam control, adjusting from 15° to 30° with an included wide filter.
- Supports DMX and RDM control via 5-pin XLR or a standard CAT6 Ethernet connection.
- Features adjustable PWM to eliminate on-camera flicker for broadcast and recording applications.
- Delivers exceptionally smooth fades with a choice of four selectable dimming curves.
- Simplifies setup with power linking for up to 4 units at 208 V
- Complete 4-Head Wash Solution: This all-in-one system features four heads with high-power RGBAW-UV LED arrays for vibrant, comprehensive color mixing.
- Versatile Mounting Options: Multiple, convenient mounting methods are available to accommodate a wide range of setups and applications.
- Independently Focusable Heads: Each of the four heads can be focused individually, allowing for precise and customizable stage coverage.

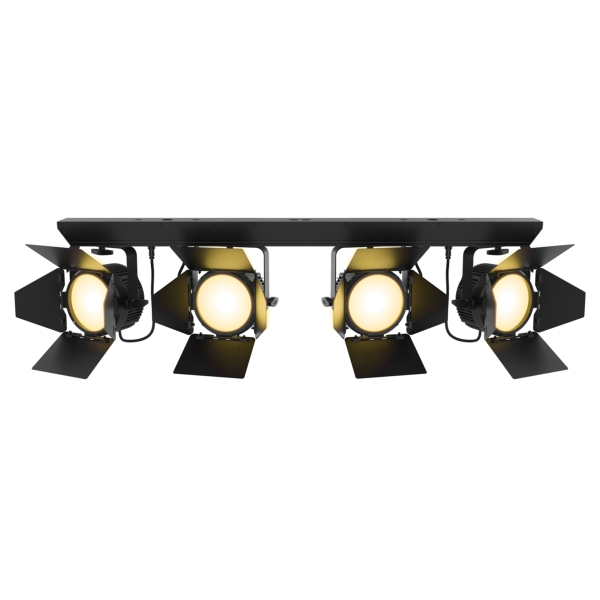

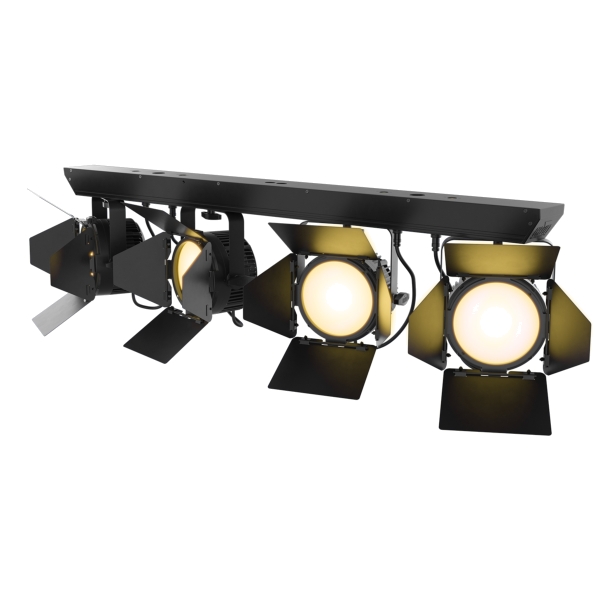

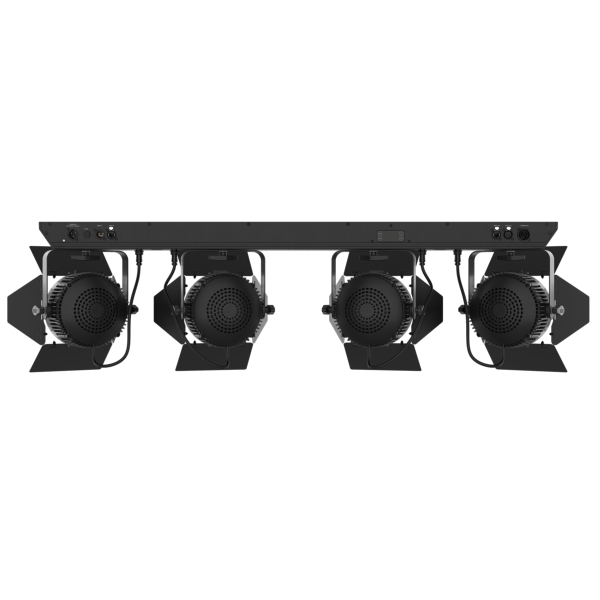

- Included Barndoors: Comes equipped with barndoors for each head to shape the light beam and eliminate spill in unwanted areas.
- Simple DMX Connectivity: Easily connect to your DMX controller using a standard CAT6 Ethernet cable for reliable operation.
- Adjustable PWM: Avoid on-camera flickering with adjustable Pulse Width Modulation to match your camera's frame rate.
- Remote Device Management: RDM capability allows for remote addressing and configuration, adding significant operational flexibility.
- Smooth Dimming Curves: Selectable dimming curves eliminate flicker and choppiness to ensure perfectly smooth fades.
- OLED Touchscreen Display: An easy-to-read OLED display with a password-protected touchscreen interface allows for simple and secure setup.
- Advanced Optics: A high-efficiency optical system provides exceptional color mixing and a powerful, even light output

Chauvet Pro COLORdash PAR Bar 4 RGBWA+UV LED Bar Specifications

Optical:
- Light Source: 1, RGBAW-UV LED Array (per head)
- Beam Angle narrow (Single Par): 15.3°
- Field Angle narrow (Single Par): 29.8°
- Beam Angle wide (Single Par): 30.4°
- Field Angle wide (Single Par): 49.4°
- Lumens (Single Par): 4305 lm
- Lumens (All Pars): 17930 lm
- Illuminance Narrow (Single Par): 1482 lux @ 5 m
- Illuminance Wide (Single Par): 510 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes

Connections:
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR, Neutrik etherCON or Amphenol XLRnet (etherCON Compatible)
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 6,8,9,14,24,32,36,41
- Modes/Personalities: 8 personalities (6,8,9,14,24,32,36,41)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 100 V; 2 units @ 120V; 4 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
- Power and Current: 550W, 2.41 A @ 230 V, 50 Hz
- Power and Current: 559W, 2.33 A @ 240 V, 50 Hz

Certifications / Qualifications:
- Certifications: CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): 32 °F to 104 °F (0 °C to 40 °C)

Construction / Physical:
- Dimensions: 1150.6 x 131 x 281.4 mm
- Weight: 12 kg
- Exterior Color: Black
- Housing Material: Aluminum Alloy

Further Product Information Below

Chauvet Pro COLORDash Par Bar 4 Manual (PDF)

Chauvet Pro COLORDash Par Bar 4 Quick Reference Guide (PDF)

Chauvet Pro COLORDash Par Bar 4 DMX Chart (PDF)

Chauvet Pro COLORdash PAR Bar 4 RGBWA+UV LED Bar Supplied With

- Chauvet COLORdash Par Bar
- Seetronic Powercon IP65 power cord
- 4x Wide Filter
- 4x Barndoors
- Tripod mount
