Chauvet Pro WELL Fit X X6 LED Uplighter Pack of 6 in Charging Flightcase

Chauvet Pro WELL Fit X X6 RGBW LED Uplighter Pack of 6 in Charging Flightcase Features

- A fully realized kit of (6) battery operated chrome IP65-rated uplight-style fixtures with (9) RGB warm white LEDs, and a beam angle of 11.3 degrees

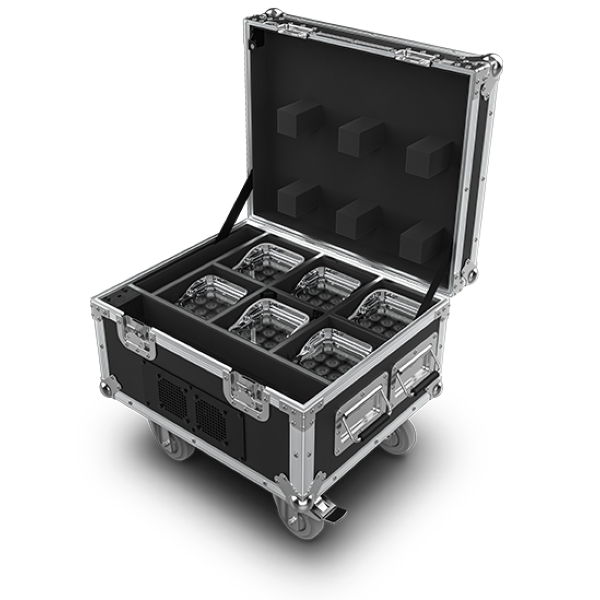

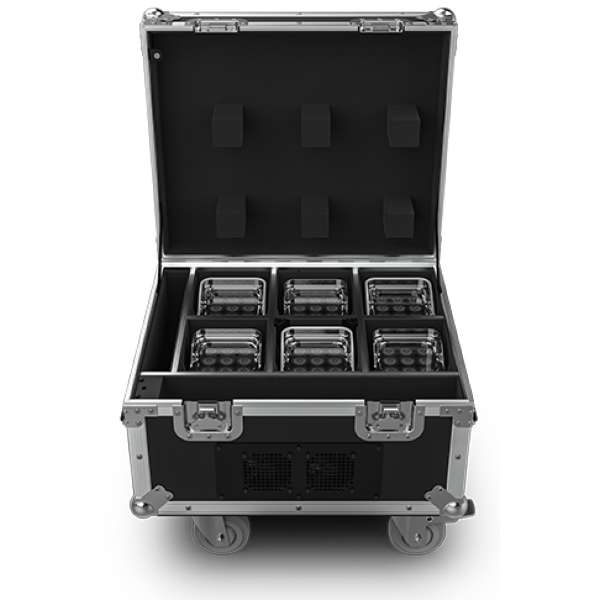

- Charging case designed to charge with the lid closed to save warehouse space
- Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
- Built-in battery charger allows fixture to operate while charging
- Control over RDM, CRMX, or RF
- Easy connection to WELL CONNECT box and ConnectFX app
- USB-C port for convenient software updates
- Pressure equalizing M6 Gore valve
- Adjustable front foot for adjusting fixture angle
- Kensington lock position
- Built-in safety cable attachment point
- Easy-to-read OLED display
- Built-in theft alarm (audio and visual notification)
- Built-in PWM adjustment
- Included RF remote
- Included 6 pack charging case

Chauvet Pro WELL Fit X X6 RGBW LED Uplighter Pack of 6 in Charging Flightcase Specifications

Optical:
- Light Source: 9 LEDs (RGBWW) 7.5 W, (556 mA), 50,000 hours life expectancy
- Color Temperature (range): 2600 to 10,000K
- Beam Angle: 11.5°
- Field Angle: 21.1°
- Lumens: 1762 lm (OFF battery setting)
- Illuminance: 1087 lux @ 5 m (OFF battery setting)
- Lumens: 1944 lm (5-hour battery setting)
- Illuminance: 1205 lux @ 5 m (5-hour battery setting)
- Lumens: 1233 lm (8-hour battery setting)
- Illuminance: 764 lux @ 5 m (8-hour battery setting)
- Lumens: 821 lm (12-hour battery setting)
- Illuminance: 507 lux @ 5 m (12-hour battery setting)
- Lumens: 550 lm (18-hour battery setting)
- Illuminance: 339 lux @ 5 m (18-hour battery setting)
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No

Connections:
- Power Connection: 5.5mm right-angle barrel jack
- Cable Length (charger): 8.5 ft (2.6m) (sold separately)
- Power Input (charging case): Seetronic TRUE1 IP65
- Power Output (charging case): Seetronic TRUE1 IP65
- Software Connection: USB-C

Control:
- Control Protocol: RDM, CRMX, NFC, RF
- DMX Channels: 5, 8, or 12
- Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
- Wireless WDMX "G" Compatibility: G4S
- Wireless Lumen Radio Compatibility: CRMX

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Single unit:
  - Power and Current (single unit charging): 55 W, 0.44 A @ 230 V, 50 Hz
  - Power and Current (single unit charging): 55 W, 0.421 A @ 240 V, 50 Hz
- 6 Pack case:
  - 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
  - Power and Current: 254W, 2.3A @ 230V
  - Power and Current: 255W, 2.15A @ 240V

Certification / Qualification:
- CE, FCC, UKCA
- IP Rating: IP65, temporary outdoor/ wet use (fixture)
- IP Rating: IP20 (case)
- Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
- Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

Physical:
- Exterior Color: Chrome
- Housing Material: Aluminum diecast
- Dimensions:
  - Fixture: 126 x 126 x 176 mm
  - 6 pack case: 554 x 470 x 345 mm
- Weight (single unit): 3.2 kg

Further Product Information Below

Chauvet Pro WELL Fit X X6 Manual (PDF)

Chauvet Pro WELL Fit X X6 Data Sheet (PDF)

Chauvet Pro WELL Fit X X6 Quick Reference Guide (PDF)

Chauvet Pro WELL Fit X X6 RGBW LED Uplighter Pack of 6 in Charging Flightcase Supplied With

- 6x WELL FIT X
- 1x 6 slot charging case
- 1x basic RF controller
- 1x True 1 power cable
- 1x QRG
