Chauvet Pro WELL POD 2X6 RGBW LED PAR Fixtures 6 Pack with Charging Case - IP65

Chauvet Pro WELL POD 2X6 RGBW LED PAR Fixtures 6 Pack with Charging Case Features

- A fully realized kit of (6) battery operated black IP65-rated par style fixtures with (7) RGB warm white LEDs, and a beam angle of 12.8 degrees
- Charging case designed to charge with the lid closed to save warehouse space
- Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
- Built-in battery charger allows fixture to operate while charging
- Built-in IP65 5-pin DMX in/out allows for wired data
- Built in Seetronic IP65 PowerKon input/output
- Control over DMX, CRMX, RDM, or RF
- Easy connection to WELL CONNECT box and ConnectFX for app control
- USB-C port for convenient software updates
- Removable split yoke for both hanging and floor standing
- Pressure equalizing M6 Gore valve
- Built-in safety cable attachment point

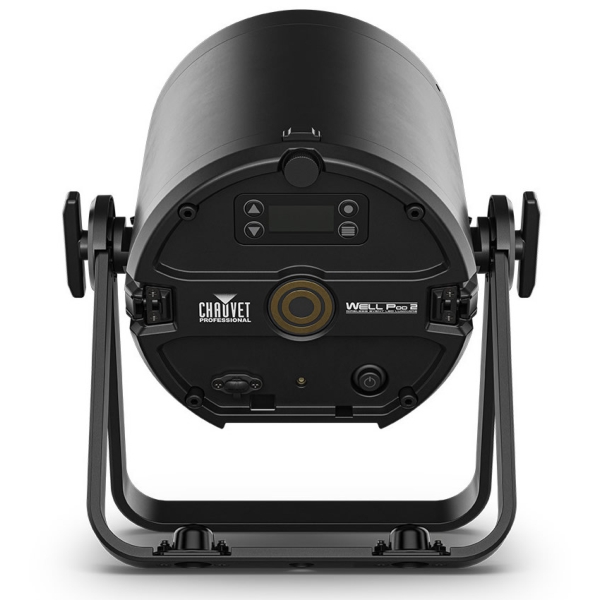

- Easy-to-read OLED display
- Built-in theft alarm (audio and visual notification)
- Built-in PWM adjustment
- Included RF remote
- Included 6 pack charging case

Chauvet Pro WELL POD 2X6 RGBW LED PAR Fixtures 6 Pack with Charging Case Specifications

Optical:
- Light Source: 7 LEDs (RGBWW) 7.5 W, (556 mA), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 6500 K
- Beam Angle: 11.5°
- Field Angle: 21.6°
- Cutoff Angle: 36.9°
- Lumens: 1797 lm (AC power)
- Illuminance: lux 1089 @ 5 m (AC power)
- Lumens: 718 lm (OFF battery setting)
- Illuminance: 436 lux @ 5 m (OFF battery setting)
- Lumens: 834 lm (5-hour battery setting)
- Illuminance: 507 lux @ 5 m (5-hour battery setting)
- Lumens: 528 lm (8-hour battery setting)
- Illuminance: 319 lux @ 5 m (8-hour battery setting)
- Lumens: 335 lm (12-hour battery setting)
- Illuminance: 202 lux @ 5 m (12-hour battery setting)
- Lumens: 214 lm (18-hour battery setting)
- Illuminance: 129 lux @ 5 m (18-hour battery setting)
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 1 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No

Connections:
- Power Connection: Edison (local) plug to Seetronic PowerKon IP65
- Power Input (fixture and charging case): Seetronic PowerKon IP65
- Power Output (fixture and charging case): Seetronic PowerKon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: USB-C

Control:
- Control Protocol: RDM, CRMX, NFC, RF
- DMX Channels: 5, 8, or 12
- Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
- Wireless WDMX "G" Compatibility: G4S
- Wireless Lumen Radio Compatibility: CRMX

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Single unit:
  - Power Linking: 40 units @ 120 V; 64 units @ 208 V; 72 units @ 230 V
  - Power and Current: 48 W, .4 A @ 120 V, 60 Hz
  - Power and Current: 47.8 W, .23 A @ 208 V, 60 Hz
  - Power and Current: 48.3 W, .21 A @ 230 V, 50 Hz
- 6 Pack case:
  - Power Linking: 3 units @ 120 V; 6 units @ 208 V; 6 units @ 230 V
  - Power and Current: 340 W, 3.33 A @ 120 V, 60 Hz
  - Power and Current: 334 W, 1.89 A @ 208 V, 60 Hz
  - Power and Current: 336 W, 1.72 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, UKCA, FCC, ROHS
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical:
- Exterior Color: Black
- Housing Material: Aluminum die-cast
- Dimensions:
  - Fixture: 206 x 222.5 x 138 mm
  - Fixture without Bracket: 138 x 144 x 133 mm
  - 6 pack case: 832 x 492 x 390 mm
- Weight (Fixture): 9.43 kg

Further Product Information Below

Chauvet Pro WELL POD 2X6 Data Sheet (PDF)

Chauvet Pro WELL POD 2X6 Quick Reference Guide (PDF)

Chauvet Pro WELL POD 2X6 Photometrics (PDF)

Chauvet Pro WELL POD 2X6 RGBW LED PAR Fixtures 6 Pack with Charging Case Supplied With

- 6x WELL POD 2
- 1x 6 slot charging case
- 6x detachable split yokes
- 1x RF controller
- 1x QRG
