Chauvet Pro WELL POD 3X4 RGBW LED PAR Fixtures 4 Pack with Charging Case - IP65

Chauvet Pro WELL POD 3X4 RGBW LED PAR Fixtures 4 Pack with Charging Case Features

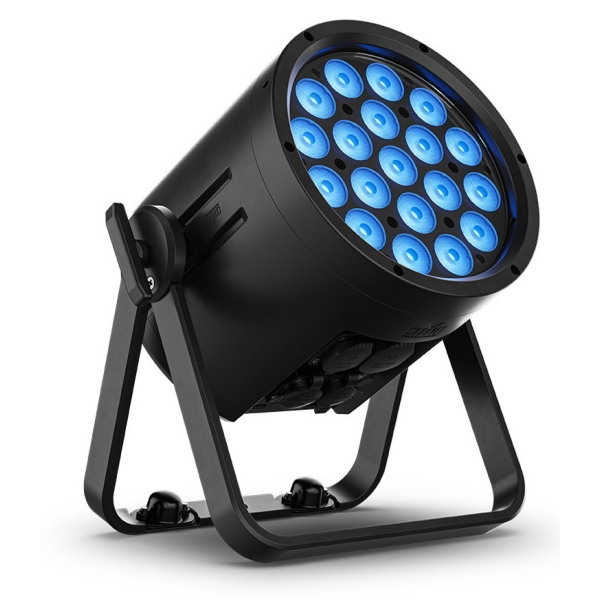

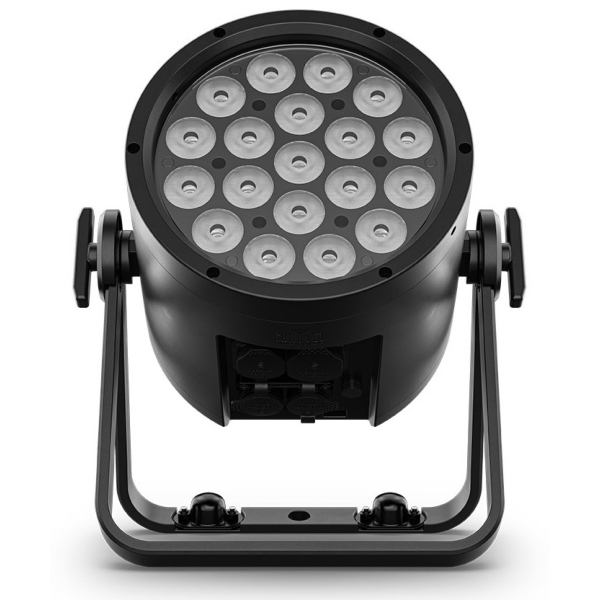

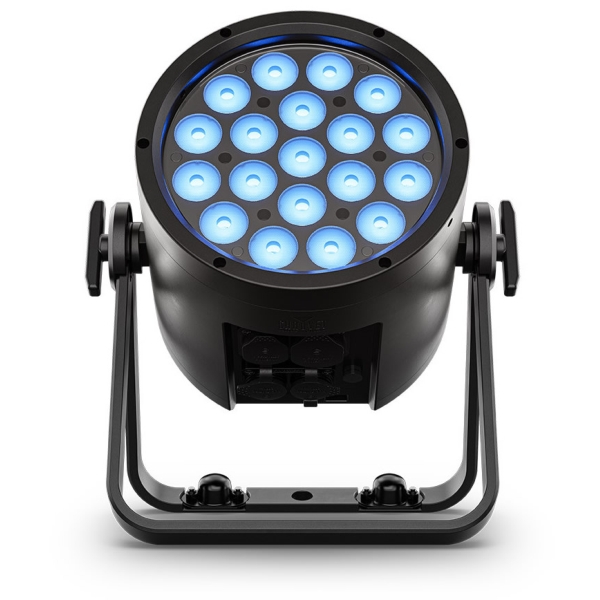

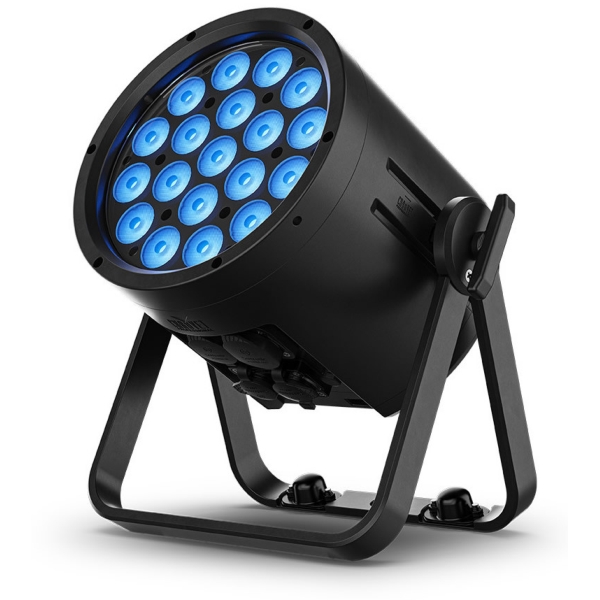

- A fully realized kit of (4) Battery operated black IP65 rated par style fixture with (19) RGB Warm White LEDs and a beam angle of 12.7 degrees

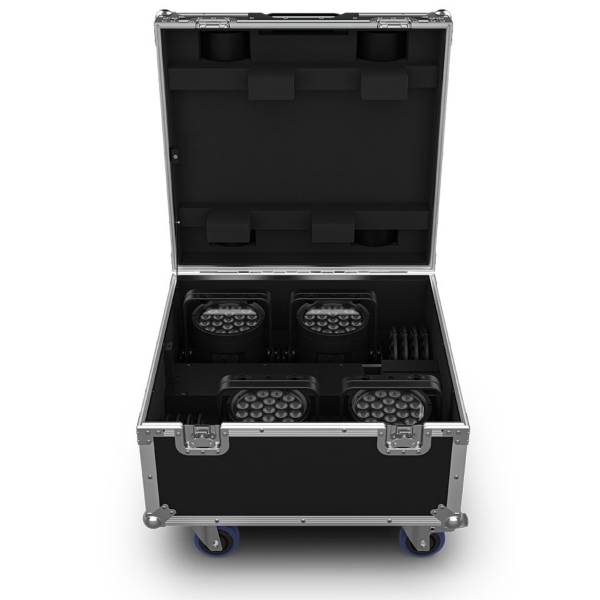

- Charging case designed to charge with the lid closed to save warehouse space
- Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
- Built in battery charger allows fixture to operate while charging
- Built in IP65 5 pin DMX in/out allows for wired data
- Built in Seetronic IP65 PowerKon input/output
- Control over DMX, CRMX, RDM, or RF
- Easy connection to WELL CONNECT box and ConnectFX for app control
- USB-C port for convenient software updates
- Removable split yoke for both hanging and floor standing
- Pressure equalizing M6 Gore valve
- Built in safety cable attachment point

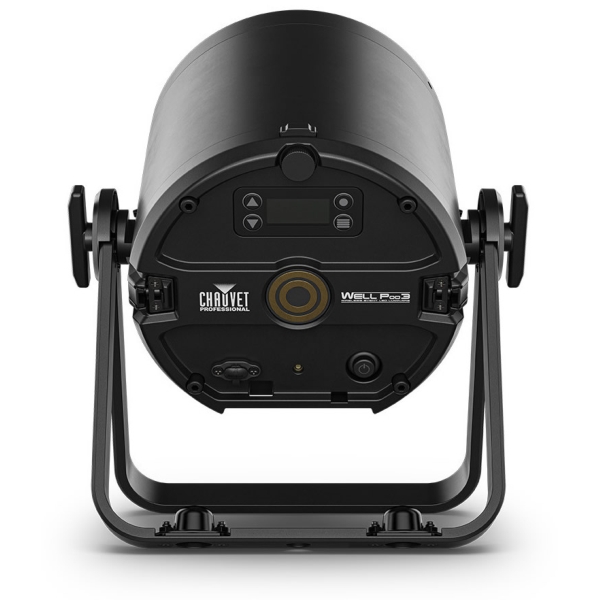

- Easy to read OLED display
- Built in theft alarm (audio and visual notification)
- Built in PWM Adjustment
- Included RF remote
- Included 4 pack charging case

Chauvet Pro WELL POD 3X4 RGBW LED PAR Fixtures 4 Pack with Charging Case Specifications

Optical:
- Light Source: 19 LEDs (RGBWW), 13.4W, (960mA) 50,000 hours life
- Color Temperature (range): 2800 to 6500 K
- Beam Angle: 12.7°
- Field Angle: 25.4°
- Cutoff Angle: 47.2°
- Lumens: 3557 lm (AC power)
- Illuminance: 1692 lux @ 5 m (AC power)
- Lumens: 1994 lm (OFF battery setting)
- Illuminance: 946 lux @ 5 m (OFF battery setting)
- Lumens: 2177 lm (5-hour battery setting)
- Illuminance: 1033 lux @ 5 m (5-hour battery setting)
- Lumens: 1379 lm (8-hour battery setting)
- Illuminance: 655 lux @ 5 m (8-hour battery setting)
- Lumens: 845 lm (12-hour battery setting)
- Illuminance: 398 lux @ 5 m (12-hour battery setting)
- Lumens: 555 lm (18-hour battery setting)
- Illuminance: 261 lux @ 5 m (18-hour battery setting)
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 1 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No

Connections:
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input (fixture and charging case): Seetronic Powerkon IP65
- Power Output(fixture and charging case): Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: USB-C

Control:
- Control Protocol: RDM, CRMX, NFC, RF
- DMX Channels: 5, 8, or 12
- Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
- Wireless WDMX "G" Compatibility: G4S
- Wireless Lumen Radio Compatibility: CRMX

Electrical:
- Single Unit:
  - Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  - Power Linking: 16 units @ 120 V; 27 units @ 208 V; 30 units @ 230 V;
  - Power and Current: 56 W, 0.39 A @ 230 V, 50 Hz
- 4 Pack Case:
  - Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;
  - Power and Current: 305 W, 2.2 A @ 230 V, 50 Hz
- 4 Pack case fuse: T5A, 250V

Battery:
- Battery type: Lithium Ion
- Rechargeable: Yes
- Battery Charge Time: 2.53 hours
- Battery Life: 3hr, 5hr, 8hr, 12hr
- Battery Power: 25.9V, 6.6 Ah

Certification / Qualification:
- CE, UKCA, FCC, ROHS
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Physical:
- Exterior Color: Black
- Housing Material: Aluminum die-cast
- Dimensions:
  - Fixture: 248 x 276 x 178 mm
  - Fixture without Bracket: 248 x 178 x 178 mm
  - 6 pack case: 685 x 650 x 380 mm
- Weight (Fixture): 5.1 kg

Further Product Information Below

Chauvet Pro WELL POD 3X4 Manual (PDF)

Chauvet Pro WELL POD 3X4 Data Sheet (PDF)

Chauvet Pro WELL POD 3X4 Quick Reference Guide (PDF)

Chauvet Pro WELL POD 3X4 RGBW LED PAR Fixtures 4 Pack with Charging Case Supplied With

- 4x WELL POD 3
- 1x Charging case
- 4x Omega brackets
- 4x Detachable split yokes
- 1x RF controller
- 1x Quick Reference Guide
