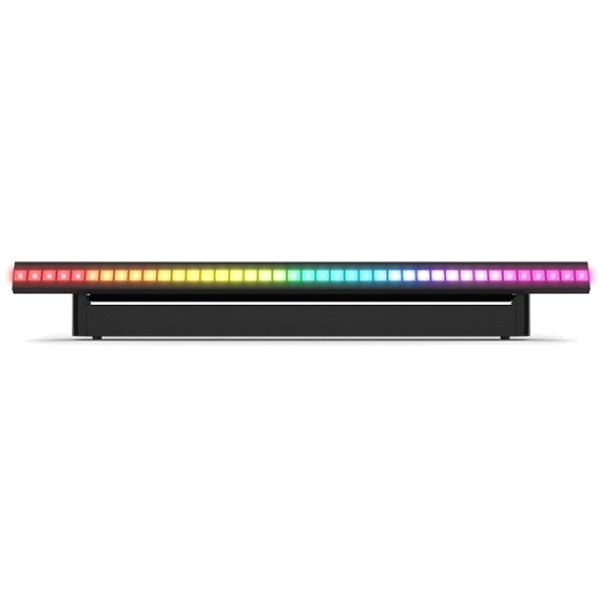

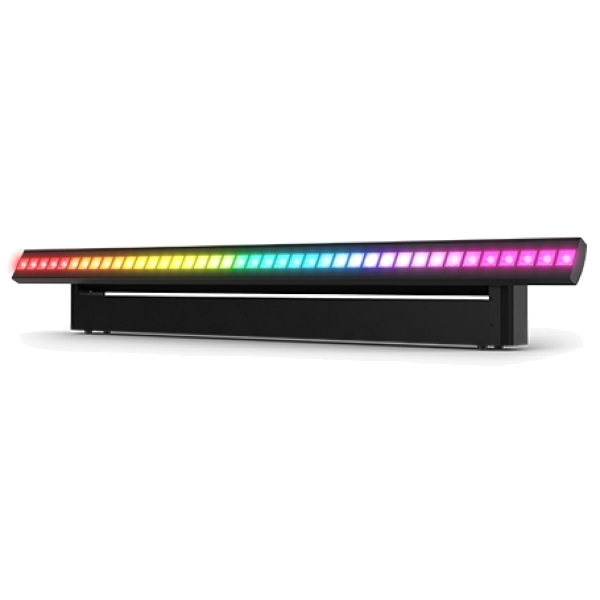

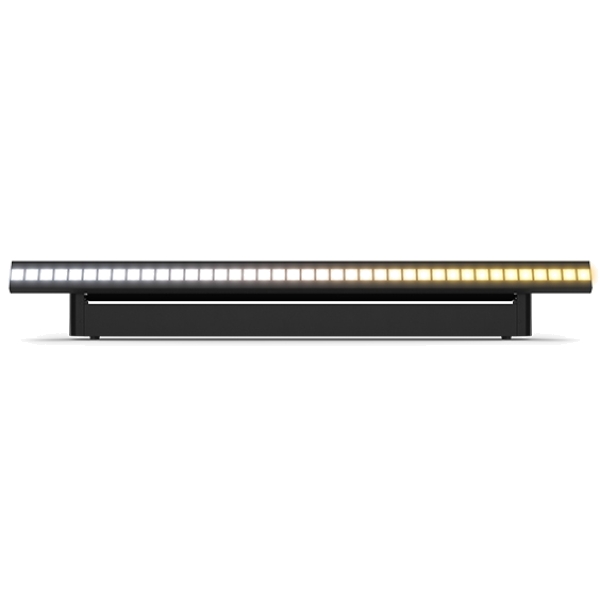

Chauvet DJ COLORband Spectra ILS RGB+WW LED Moving Pixel Map Batten, 40x 0.7W

Chauvet DJ COLORband Spectra ILS RGB+WW LED Moving Pixel Map Batten Features

- Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder, or wall-washer
- Built-in motors ensure the light can be angled anywhere
- Create eye-catching animations and effects with individual pixel control
- Multiple control options such as DMX, ILS, RF, or master/slave for complete flexibility
- D-Fi USB compatibility for wireless master/slave or DMX control

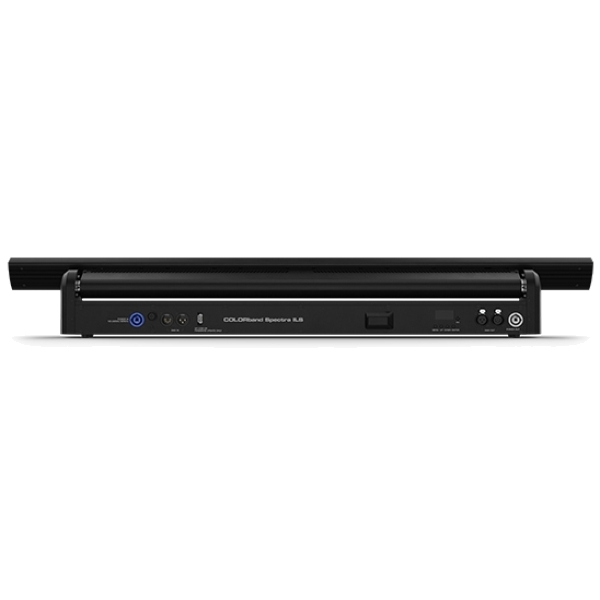

- Flexible control options with onboard 3 and 5-pin DMX connectors
- PowerCON-compatible power input/output connections for power linking
- Fits best in the CHS-60 VIP Gear Bag

Chauvet DJ COLORband Spectra ILS RGB+WW LED Moving Pixel Map Batten Specifications

- DMX Channels: 6, 11, 17, 19 or 164
- DMX Connectors: 3- and 5-pin XLR
- Tilt: 180°
- Light Source: 40 LEDs (quad-colour RGB+WW), 0.7A, 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 17°
- Field Angle: 32°
- Illuminance 3,872 lux @ 2 m
- Lumens: 1,938
- Colour Temperature Range: 3,000K-14,000K
- Power Linking: 16 units @230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 72 W, 0.8 A @ 230 V, 50 Hz
- Weight: 4.6 kg
- Size: 1000 x 60 x 142 mm
- Optional Controllers: RFC, RFC-XL, ILS Command
- Approvals: CE, ROHS

Further Product Information Below

Chauvet DJ COLORband Spectra ILS Manual (PDF)

Chauvet DJ COLORband Spectra ILS Data Sheet (PDF)

Chauvet DJ COLORband Spectra ILS Quick Reference Guide (PDF)

Chauvet DJ COLORband Spectra ILS RGB+WW LED Moving Pixel Map Batten Supplied With

- Chauvet COLORband Spectra ILS
- Power cable
- Omega Bracket
- Quick Reference Guide
