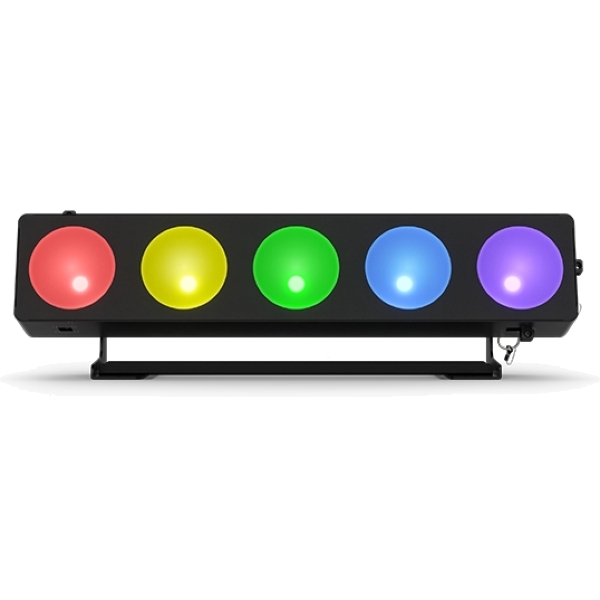

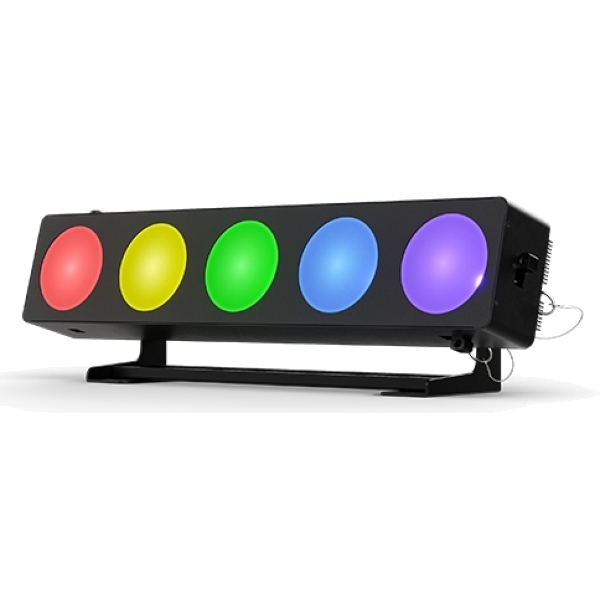

Chauvet DJ Core 5X1 ILS RGB+WW LED Wash/Effect Fixture, 5x 35W

Chauvet DJ Core 5X1 ILS RGB+WW LED Wash/Effect Fixture Features

- Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light.

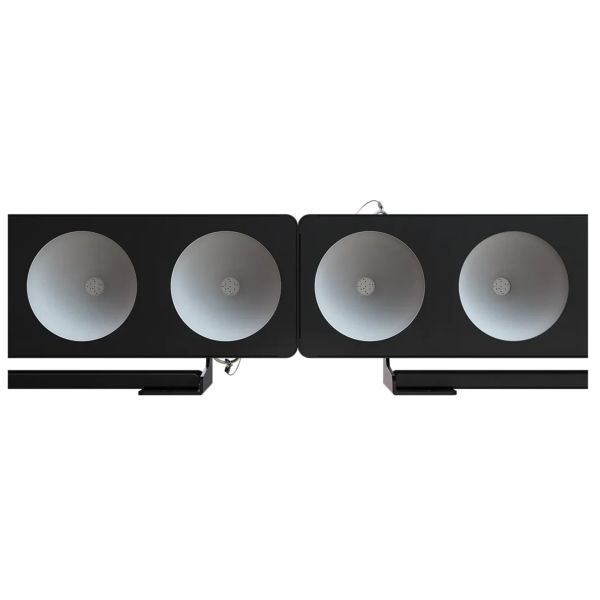

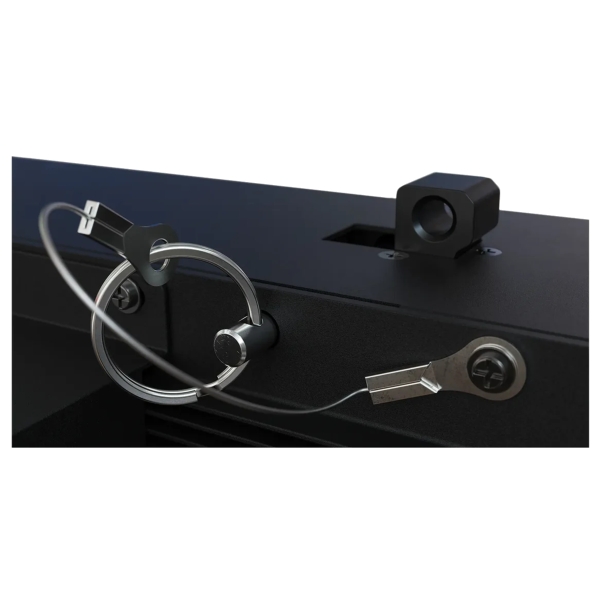

- Attach multiple fixtures together using the built-in, toolless connecting hardware
- ILS compatibility for use in the ILS ecosystem (D-Fi USB sold separately)

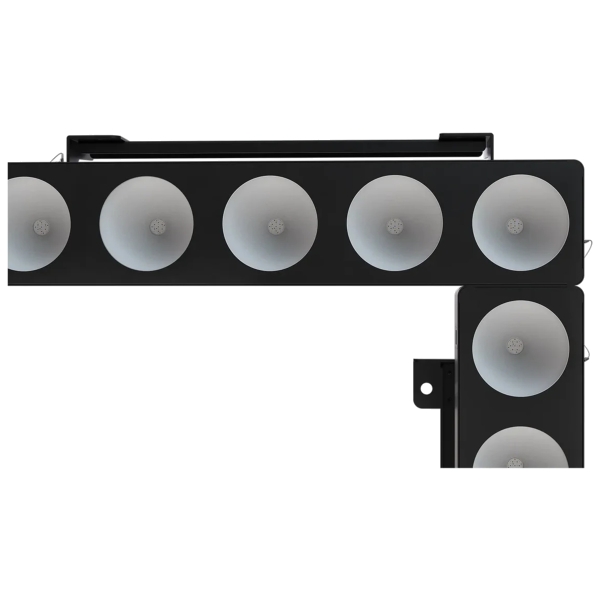

- Connect up to 6 fixtures together vertically using the toolless linking hardware
- Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
- Withstand the harshness of traveling from gig to gig with a robust housing
- Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave

Chauvet DJ Core 5X1 ILS RGB+WW LED Wash/Effect Fixture Specifications

- DMX Channels: 4, 8, or 22
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 5 LEDs (quad-colour RGB+WW) 35W, (1.2A)
- 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 54°
- Field Angle: 75°
- Illuminance: 953 lux @ 2 m
- Lumens: 2,875
- Cable Length: 5 ft (1.52 m)
- Power Linking: 10 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 113 W, 1.1 A @ 230 V, 50 Hz
- Bracket Mounting Hole: 13 mm
- Weight: 5 kg
- Size: 600 x 79 x 120 mm
- Optional Controllers: ILS Command, RFC, RFC-XL
- Approvals: CE, RoHS

Further Product Information Below

Chauvet DJ Core 5X1 ILS Manual (PDF)

Chauvet DJ Core 5X1 ILS Data Sheet (PDF)

Chauvet DJ Core 5X1 ILS Quick Reference Guide (PDF)

Chauvet DJ Core 5X1 ILS RGB+WW LED Wash/Effect Fixture Supplied With

- Chauvet CORE 5X1 ILS
- Power cord
- Quick Reference Guide
