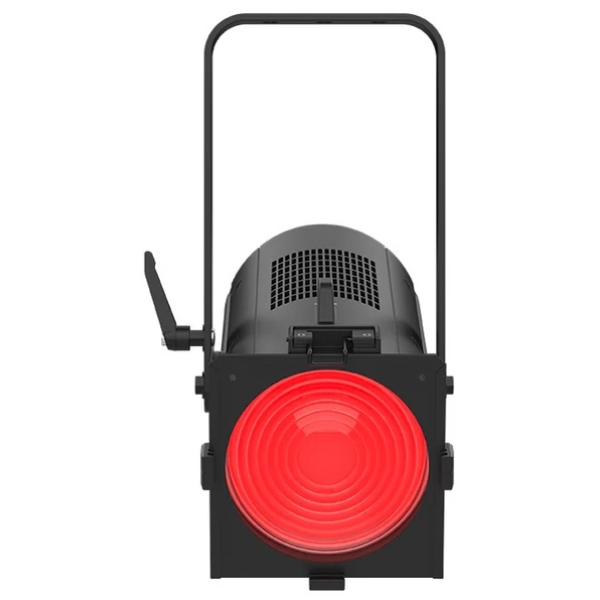

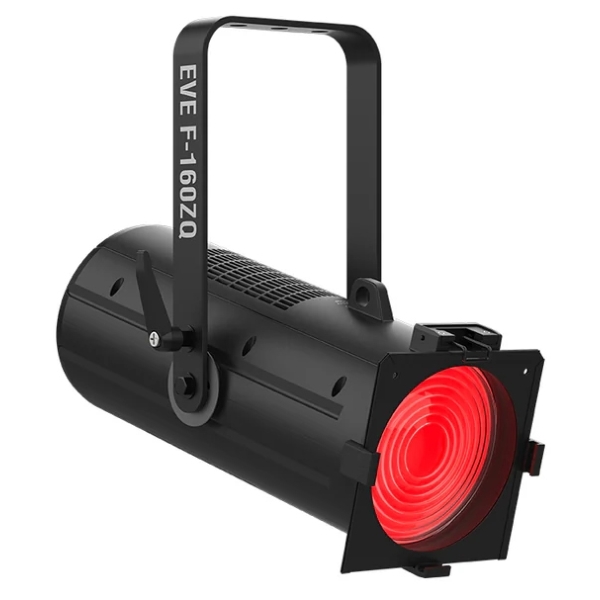

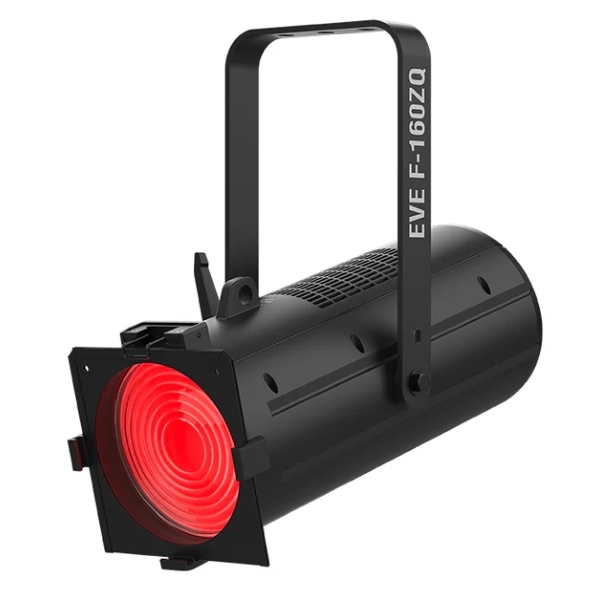

Chauvet DJ EVE F-160ZQ RGBW LED Fresnel, 160W

Chauvet DJ EVE F-160ZQ RGBW LED Fresnel Features

- Full-color Fresnel designed for mobile and installation applications
- Integrated zoom optics ensure subject remains in the spotlight from a wide range of distances
- Pre-set color temperature ranges eliminate the need for manual color blending
- Flicker-free operation suitable for on-camera use
- D-Fi USB compatibility for wireless master/slave or DMX control
- powerCON-compatible power input/output connections for power linking

Chauvet DJ EVE F-160ZQ RGBW LED Fresnel Specifications

- DMX Channels: 3, 4 or 11
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 1 LED (quad-color RGBW) 160 W, (7.3 A), 50,000 hours life expectancy
- Beam Angle: 16° - 61°
- Field Angle: 29° - 90°
- Power Linking: 16 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Approvals: CE, RoHS, MET
- Accessory Holder Size: 6.25 in
- Color Temperature Range: 2800 K – 8000 K
- Strobe Rate: 1 to 30 Hz
- Illuminance:
  - 24°: 7072 lux @ 2 m
  - 37°: 2964 lux @ 2 m
  - 24°: 1132 lux @ 5 m
  - 37°: 474 lux @ 5 m
- CRI: 96
- Optional Controllers: DMX
- Power and Current: 150 W, 0.7 A @ 230 V, 50 Hz
- Dimensions (W x H x D): 248 x 429 x 467 mm
- Weight: 5.5 kg

Further Product Information Below

Chauvet DJ EVE F-160ZQ Manual (PDF)

Chauvet DJ EVE F-160ZQ Quick Reference Guide (PDF)

Chauvet DJ EVE F-160ZQ RGBW LED Fresnel Supplied With

- Chauvet DJ EVE F-160ZQ
- Power cord

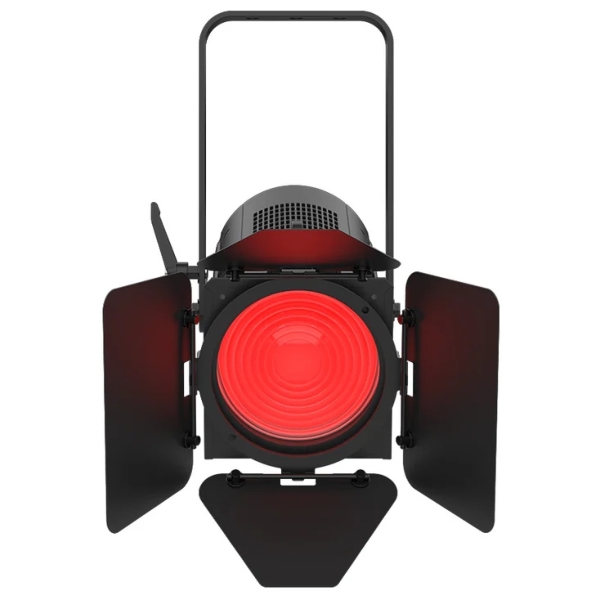

- Barn doors
- Gel frame
- Quick reference guide
