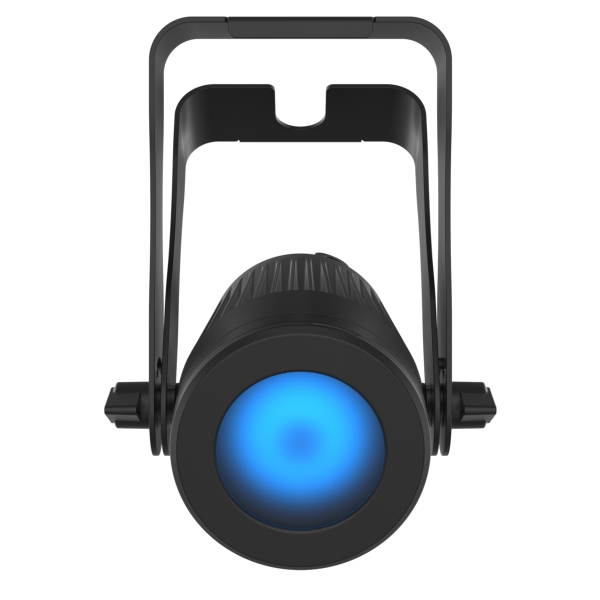

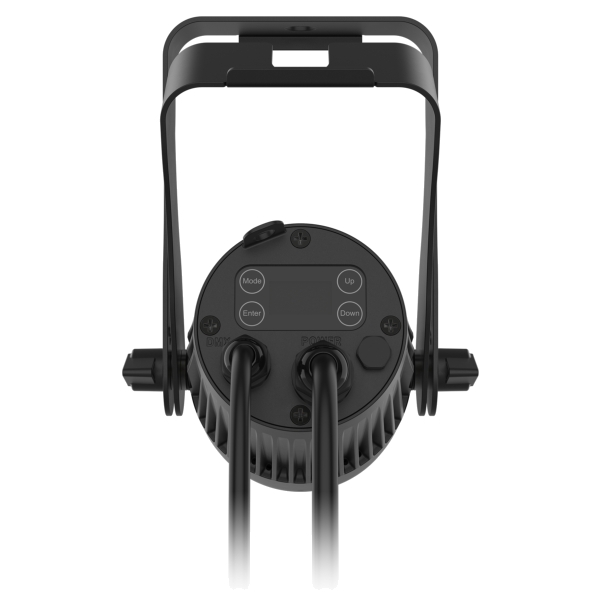

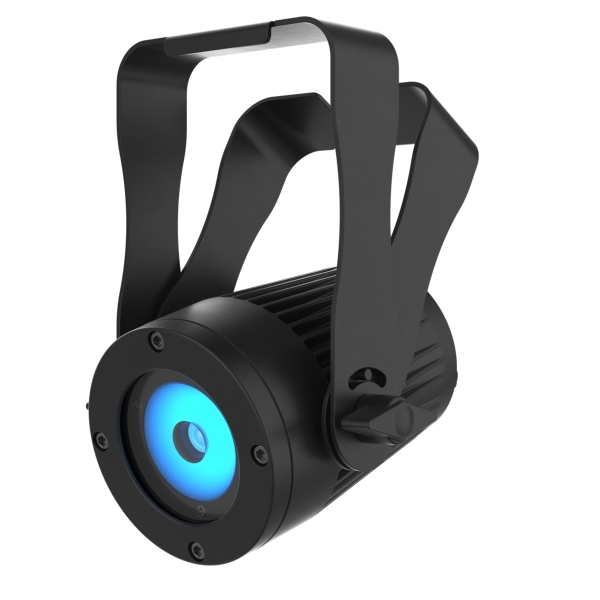

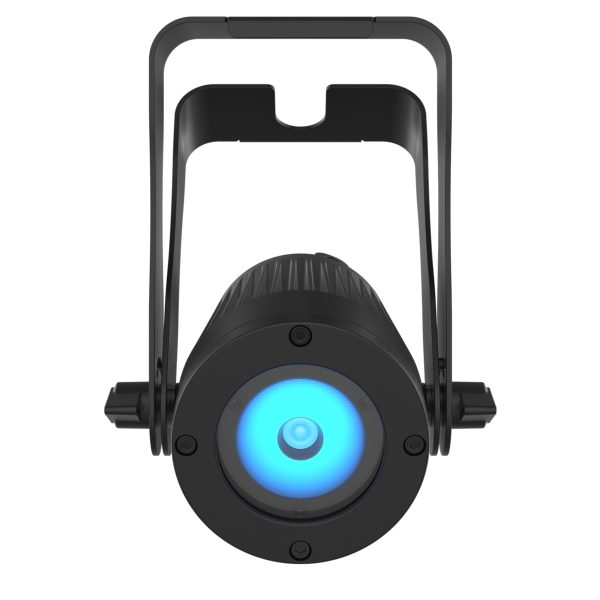

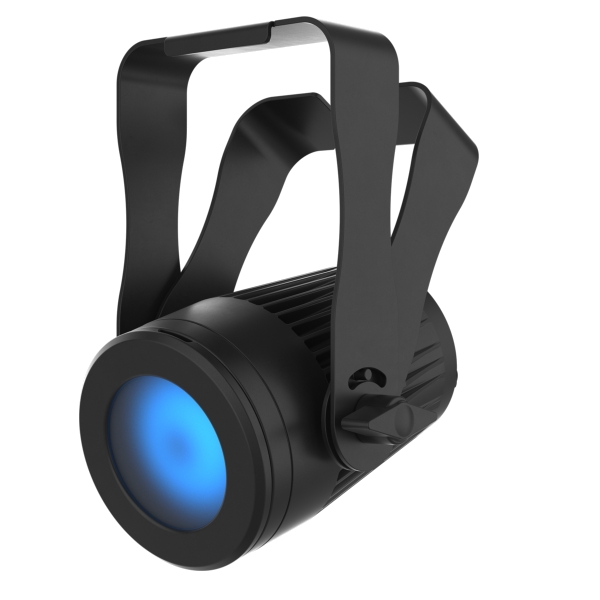

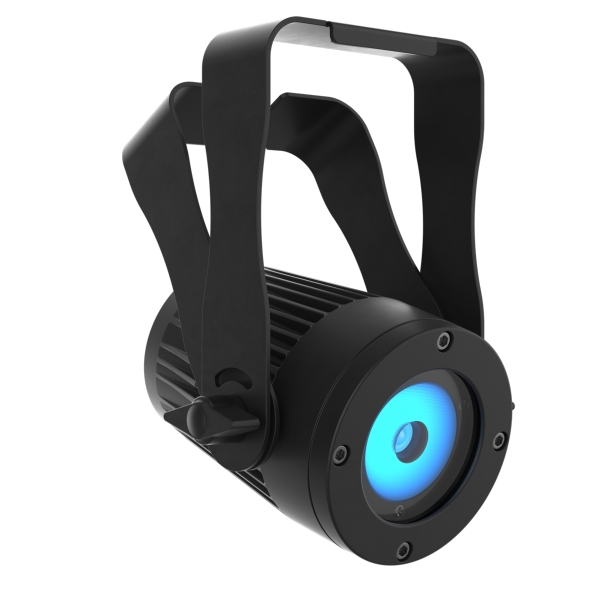

Chauvet Pro COLORdash Accent 5X IP RGBAW+UV LED Wash - IP65

Chauvet Pro COLORdash Accent 5X IP RGBAW+UV LED Wash Features

- Hex-color (RGBWAUV) compact LED wash
- Extremely compact with excellent output and IP65-rated versatility
- Variable electronic dimmer (0-100%)
- Simple and complex DMX channel profiles with RDM for programming versatility
- Double-bracketed yoke doubles as floor stand
- Easy to use OLED digital display
- Replaceable filter for additional beam angles
- Built-in auto programs recalled via DMX or Master/Slave
- Rich Hex-Color Spectrum: A single 40W RGBAW+UV LED source delivers a wide palette of saturated colors, pastels, and true ultraviolet effects from a compact housing.
- Powerful All-Weather Design: The IP65-rated, palm-sized body delivers impressive output for versatile accent lighting indoors or out, regardless of weather conditions.
- Smooth Dimming Control: Achieve seamless fades and precise intensity adjustments with a variable electronic dimmer that offers five distinct dimming modes for ultimate control.
- Flexible DMX and RDM: Utilize simple or complex DMX channel profiles and RDM for remote addressing, ensuring versatile integration into any professional lighting rig.
- Versatile Mounting Options: A double-bracketed yoke allows for conventional truss mounting or use as a convenient floor stand for flexible uplighting applications.
- Clear OLED Display: Easily navigate menus and configure settings directly on the fixture using the high-contrast OLED display, even in low-light environments.
- Included Beam-Shaping Filter: Expand the tight 11.4° beam to a wider 21.5° wash with the included filter, adapting the light for different coverage needs.
- Standalone Automated Programs: Access built-in automated programs via DMX or Master/Slave mode for dynamic looks without the need for complex programming

Chauvet Pro COLORdash Accent 5X IP RGBAW+UV LED Wash Specifications

Optical:
- Light Source: 1 LED (Hex-colour RGBWA+UV) 40 W, (950 mA), 50,000 hours life expectancy.
- Beam Angle w/ filter: 21.5°
- Field Angle w/ filter: 47.1°
- Beam Angle w/o filter: 11.4°
- Field Angle w/o filter: 20.4°
- Lumens: w/o filter: 890 lm
- Lumens: w/ filter: 733 lm
- Illuminance (total) w/ filter: 126 lux 5 m
- Illuminance (total) w/o filter: 618 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Colour Mixing: Yes
- Dim Modes: 5
- Built-in Automated Programs: Yes

Connections:
- Power Connection: Edison plugs to hard-wired
- Power Input: Hard-wired
- Data Connectors: 5-pin XLR DMX input and output cable whips
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 6, 8, 9, 13 or 14
- Modes/Personalities: 5 personalities (6, 8, 9, 13 or 14)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 43 W, 0.44 A @ 230 V, 50 Hz

Certifications / Qualifications:
- CE, MET, FCC, RoHS
- IP Rating: IP65, temporary outdoor/wet use with pressure equalising M6 GORE valve
- Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Construction / Physical:
- Dimensions: 184 x 145 x 88 mm
- Weight: 1.3 kg
- Exterior Colour: Black

Further Product Information Below

Chauvet DJ COLORdash Accent 5 x IP Manual (PDF)

Chauvet DJ COLORdash Accent 5 XIP Quick Reference Guide (PDF)

Chauvet DJ COLORdash Accent 5 X IP Photometrics (PDF)

Chauvet Pro COLORdash Accent 5X IP RGBAW+UV LED Wash Supplied With

- Chauvet COLORdash Accent 5XIP
- Frosted filter
