Chauvet Pro EPIX D4 IP 4 Port Drive Power/Processor for EPiX LINE - IP65

The Chauvet Pro EPIX D4 IP 4 Port Drive Power/Processor is a four-port IP65 power and processing module that simplifies pixel mapping with the intuitive KLSTR system and onboard GDTF for seamless workflow integration.

Its rugged, modular design delivers full creative freedom and industry-leading efficiency to lighting designers, system integrators, and rental houses for any outdoor application.

ÉPIX D4 IP is a 4-port drive housing the ÉPIX mapping system - built to easily detect, configure, and control outdoor-rated ÉPIX Line 10 IP and ÉPIX Line 10 IP S linear pixel strips. Its powerful processing unit handles addressing with the intuitive KLSTR push-and-pull mapping system, allowing users to focus on layouts and concepts.

ÉPIX D4 IP is the heart of this latest generation ÉPIX family that introduces a revolutionary new standard in video mapping and a robust new ecosystem. Users can easily create simple and effective designs with the app as well as push highly complex designs and visions through a scalable workflow using industry-standard MVR files.

Designed with modularity, serviceability, and universal connectivity at its core, ÉPIX D4 IP delivers full creative freedom, scalability, and industry-leading efficiency to lighting designers, systems designers, and rental and production houses.

Click Here for Printer Friendly Version

Chauvet Pro EPIX D4 IP 4 Port Drive Power/Processor Features

- Remote power supply and processing module for ÉPIX line products
- Supports MVR with GDTF onboard, creating a seamless production flow from design to playback at the lighting desk
- Utilizes ÉPIX Mapping System to detect, configure, and control ÉPIX line products
- Industrial design accommodates the rental/touring and Installation applications
- Supports RSTP with automatic signal backup

Intuitive Pixel Mapping:

The onboard ÉPIX Mapping System automatically detects and configures connected pixel strips, dramatically simplifying complex layouts and saving valuable setup time on site.

Seamless Design Workflow:

Native MVR and GDTF support creates an efficient production flow, allowing you to move from lighting design software to console playback without extra steps.

Built For Any Environment:

A rugged, IP65-rated housing and modular 2U rack-mount design provide maximum durability and flexibility for both touring productions and permanent architectural installations.

Centralized Power And Control:

Drive up to four runs of ÉPIX pixel strips from a single unit, streamlining your system's power and data distribution for cleaner, more reliable setups.

Uninterrupted Signal Reliability:

RSTP support provides automatic signal backup and redundancy, ensuring your visuals run flawlessly without interruption even in the event of a network cable failure.

Chauvet Pro EPIX D4 IP 4 Port Drive Power/Processor Specifications

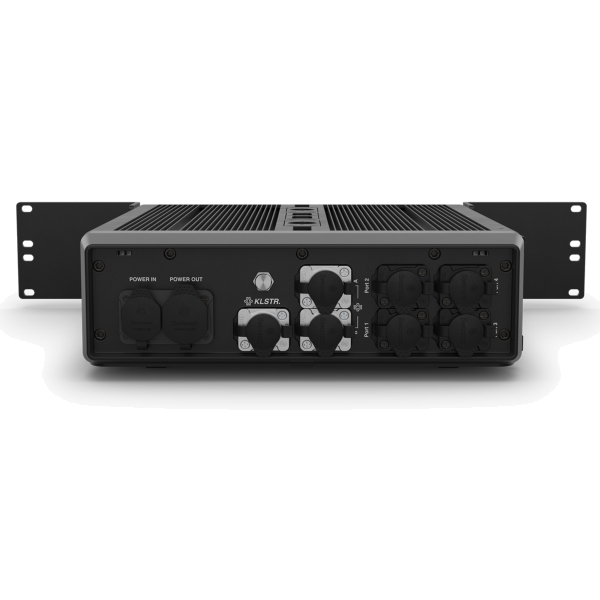

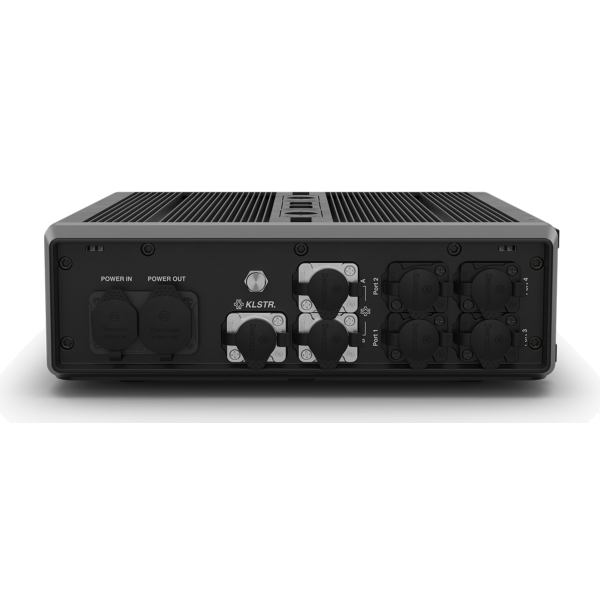

Connections:
- Power input: Seetronic Powerkon (powerCON Compatible)
- Power output: Seetronic Powerkon (powerCON Compatible)
- Device output (4): 4-pin XLR (IP65)
- Data connectors (3): Seetronic etherKON (etherCON Compatible)
- Intended Load: Epix Line 10 IP, Epix Line 10 IP S
- Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
- Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line: 210 ft (64 m)
- Max. cable length (shielded cables) between Epix D4 IP and first Epix Line: 65 ft (20 m)
- Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line: 300 ft (91 m)
- Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line: 150 ft (45 m)
- Max. cable length (unshielded cables) between each Epix Line: 100 ft (30 m)

Control:
- Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System]
- DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
- Video Refresh Rate: 60 Hz

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 0 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V; 3 units @ 240 V
- Power and Current:
- 1,200 W, 5.22 A @ 230 V, 50 Hz
- 1,200 W, 5 A @ 240 V, 50 Hz

Certifications / Qualifications:
- Compliance: [CE, MET, ROHS]
- Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

Construction / Physical:
- Dimensions: 357 x 300 x 289 mm

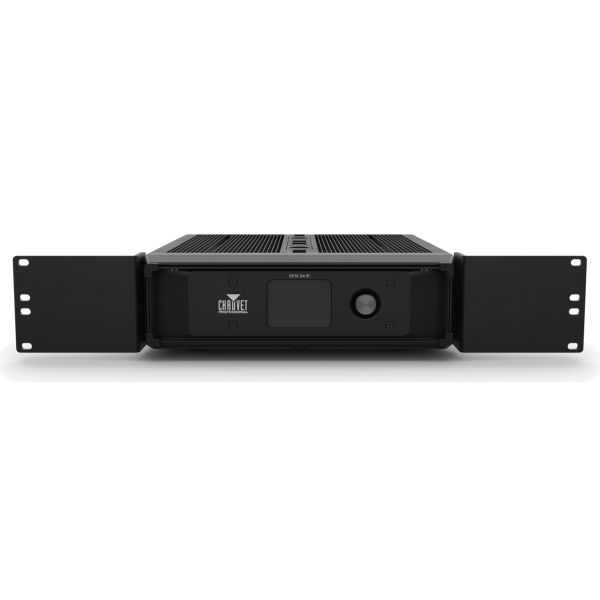

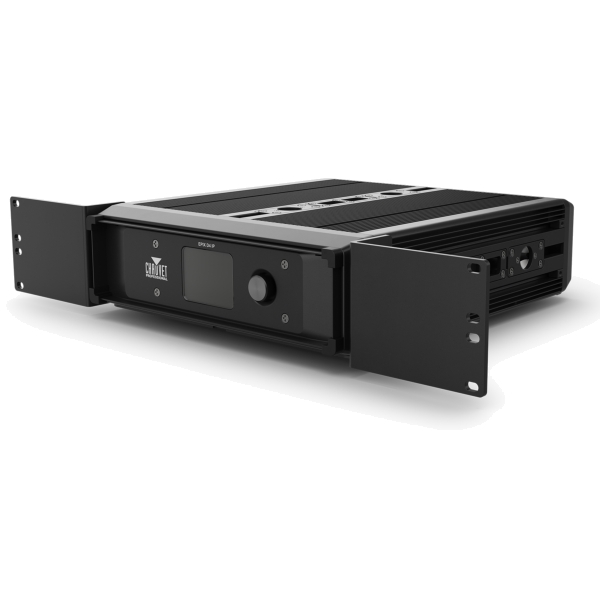

- Dimensions (with rackmount brackets): 514 x 300 x 289 mm
- Weight: 6.8 kg
- Exterior Colour: Black
- Housing Material: Aluminium extrusion, aluminium die-cast, rubber
- Rackmount: 2U
- IP Rating: IP65

Further Product Information Below

Chauvet Pro EPIX D4 IP Manual (PDF)

Chauvet Pro EPIX D4 IP Quick Reference Guide (PDF)

Chauvet Pro EPIX D4 IP 4 Port Drive Power/Processor Supplied With

- 1x Epix D4 IP
- 1x Power Cord (Seetronic powerKON)
- 2x Rack Ears with Screws
- 1x Omega bracket
