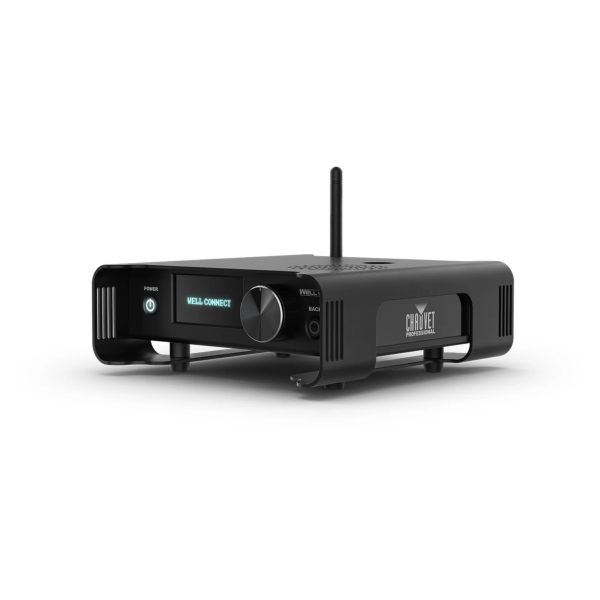

Chauvet Pro Well Connect Battery Powered W-DMX/CRMX Wireless Transceiver

Chauvet Pro Well Connect Features

- Wireless Control Hub: Compact, battery-powered Bluetooth and W-DMX/CRMX transceiver designed to control WELL fixtures or any DMX lighting system
- App-Driven Operation: Pairs seamlessly with the ConnectFX app on iOS and Android for intuitive wireless control of scenes and effects
- Flexible Output Options: Supports both wireless & wired DMX protocols, offering reliable signal distribution for any setup
- 12-Hour Battery Life: Integrated lithium-ion battery delivers all-day wireless operation; USB-C port provides continuous power when needed

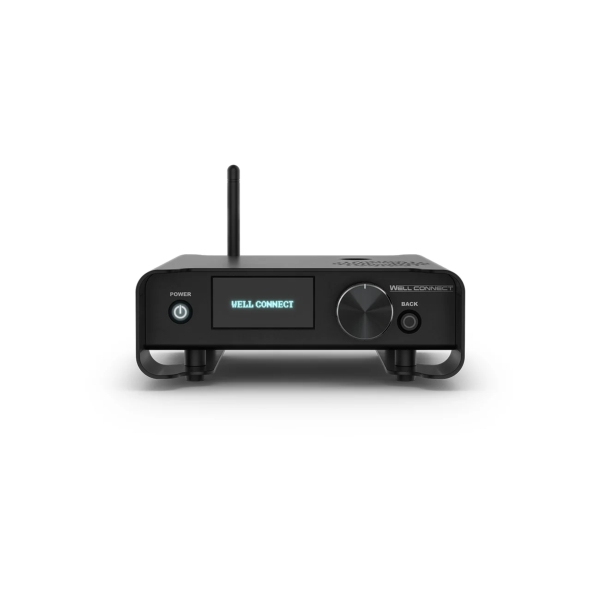

- Onboard Playback: Trigger pre-programmed scenes directly from the unit’s display—no console required
- Rugged & Road-Ready: Durable aluminum housing and M12 threaded bolt ensure quick, secure mounting in demanding environments
- Smart Firmware Management: Web-based UI allows for easy firmware updates and configuration

Chauvet Pro Well Connect Specifications

Construction / Physical:
- Dimensions: 6.89 x 7.01 x 2.56 in (175 x 178 x 65 mm)
- Weight: 1.8 lb (0.9 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy

Connections:
- Power Input: USB-C

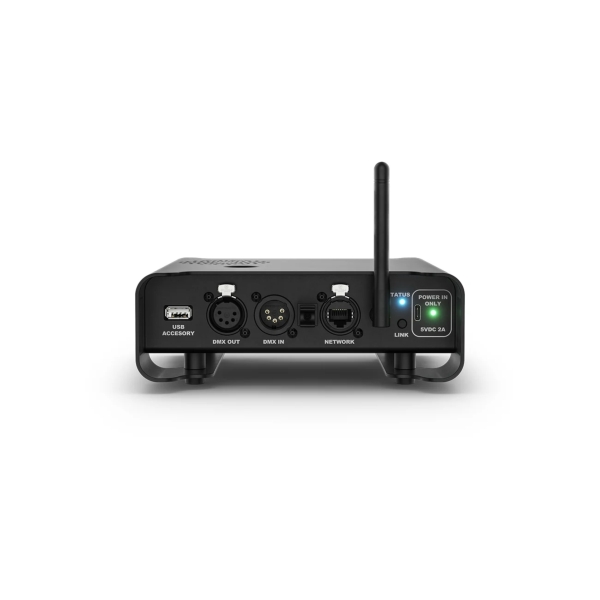

- Data Connectors: 5-pin XLR IN/OUT, USB-A Female, RJ45

Control:
- Control Protocol: Chauvet CONNECT app, Art-Net, DMX, W-DMX, sACN

Electrical:
- Input Voltage: 5 VDC, 2A via USB-C

Battery:
- Battery type: Lithium Ion
- Rechargeable: Yes
- Battery Charge Time: 8 hours
- Battery Life: 12 hours
- Battery Power: 12 V, 24 Ah

Certifications / Qualifications:
- CE, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Further Product Information Below

Chauvet Pro Well Connect Manual (PDF)

Chauvet Pro Well Connect Data Sheet (PDF)

Chauvet Pro Well Connect Quick Reference Guide (PDF)

Chauvet Pro Well Connect Supplied With

- WELL CONNECT
- EPSU USB-A
- USB-A to USB-C cable
