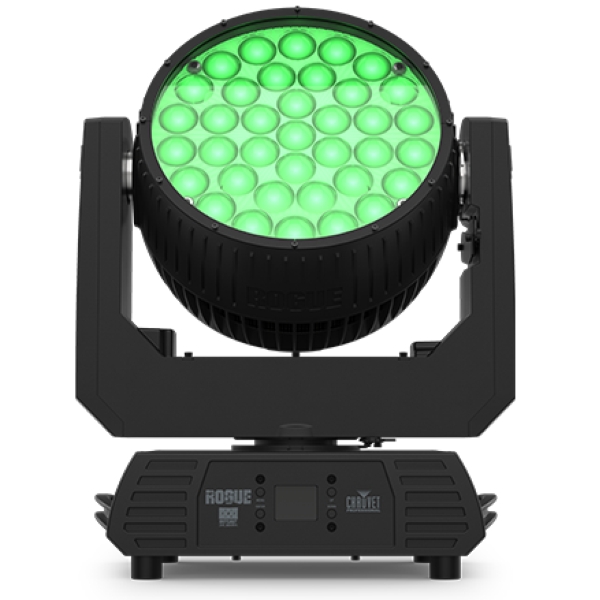

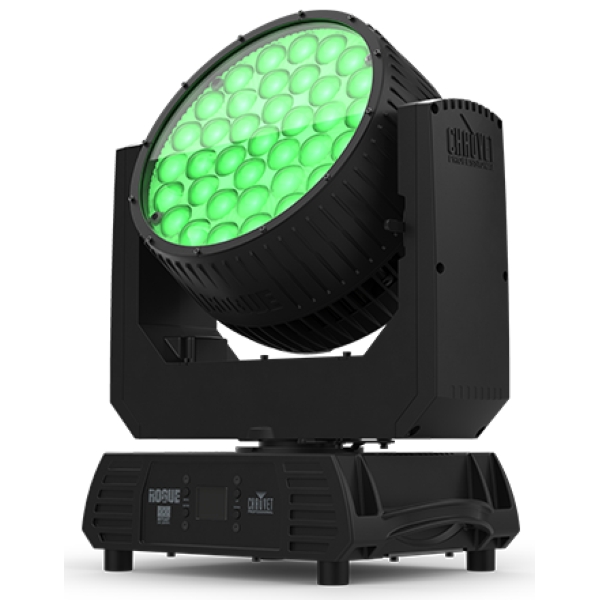

Chauvet Pro Rogue Outcast 3X Wash RGBW LED Moving Head, IP65

Name: Chauvet Pro Rogue Outcast 3X Wash RGBW LED Moving Head, IP65
Brand: Chauvet Pro
Price: 3104.15 GBP
Availability: InStock

Buy 4+ units for £9312.43 Inc VAT. To Do So, Click Here to Register.

Price Each £2,586.79 (£3,104.15 Including VAT at 20%)

REF: JP110875

Quantity:

Chauvet Pro Rogue Outcast 3X Wash RGBW LED Moving Head, IP65

The Chauvet Pro Rogue Outcast 3X Wash RGBW LED Moving Head brings a fast zoom from beam to wash, the power to punch through fog or haze, and alloy-armored IP65-rated durability that withstands the elements, from dust to rain, indoors or out. Offering the convenience of selecting simple or complex DMX personalities, this versatile workhorse suits the widest range of applications, including on-camera use with its user selectable calibrated white. 37 bright 25W RGBW LEDs occupy 9 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.

Click Here for Printer Friendly Version

Chauvet Pro Rogue Outcast 3X Wash RGBW LED Moving Head Features

- Fully-featured IP65 RGBW LED yoke wash fixture with LED zone control, zoom, durable, and lightweight aluminum/magnesium alloy body.??
- 16-bit dimming of master dimmer, as well as individual colors for smooth control of fades?
- 37 RGBW LEDs, 25 W each
- 5-pin DMX input/output connections?
- 9 zones of LED control for pixel mapping control
- Fast/ smooth pan and tilt movement?
- RDM-enabled for remote addressing and trouble shooting?
- Selectable PWM options for camera operation
- Easy-to-read OLED display with simple, effective menu options
- User-selectable calibrated white for 7500 K at full output
- 6 distinct dimming modes for advanced control
- Easy-to-read OLED display with simple and effective menu options?
- Simple and complex DMX channel profiles for programming versatility?
- USB-C port for uploading software

Chauvet Pro Rogue Outcast 3X Wash RGBW LED Moving Head Specifications

Optical:
- Light Source: 37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 10000 K
- Beam Angle: 9.3° to 33.9°
- Field Angle: 11.6° to 49.5°
- Cutoff angle: 13.1° to 62.6°
- Zoom Angle: 9.3° to 62.6°
- Lumens – Source: 17,000
- Lumens – Output: 13,440
- Illuminance (9.3°) : 18,260 lux @ 5 m
- Illuminance (62.6°):1,556 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects:
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 230° Tilt.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 25 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No

Connections:
- Power Connection: Edison (local) plug to Seetronic PowerKON IP65
- Power Input: Seetronic PowerKON IP65
- Power Output: Seetronic PowerKON IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 21, 62, 71, 107
- Modes/Personalities: 4 personalities

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
- Power and Current: 695 W, 3.07 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, MET, FCC, FCC, UKCA
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical:
- Dimensions: 396 x 437 x 298 mm
- Weight: 17.38 kg
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer

Further Product Information Below

Chauvet Pro Rogue Outcast 3X Wash Manual (PDF)

Chauvet Pro Rogue Outcast 3X Wash Data Sheet (PDF)

Chauvet Pro Rogue Outcast 3X Wash Reference Guide (PDF)

Chauvet Pro Rogue Outcast 3X Wash RGBW LED Moving Head Supplied With

- Rogue Outcast 3X Wash
- Seetronic PowerKon IP65 power cord
- 2x 140D Omega brackets with mounting hardware
