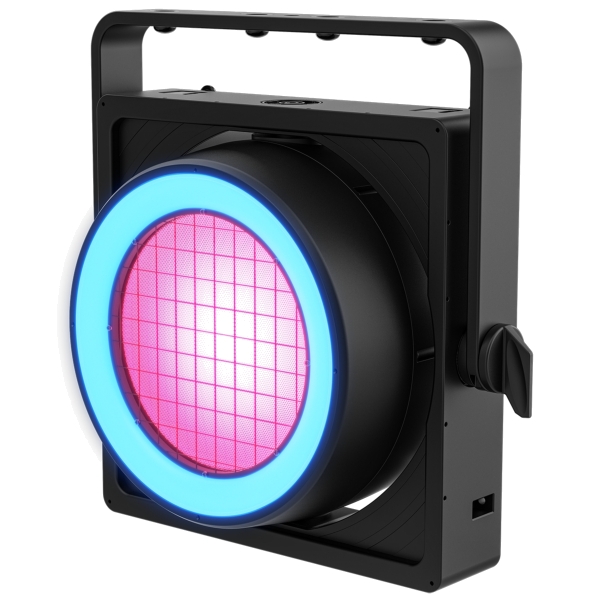

Chauvet Pro Array Ultra RGBA-WW Motorised LED Wash/Blinder with RGB Ring - IP65

Chauvet Pro Array Ultra RGBA-WW Motorised LED Wash/Blinder with RGB Ring Features

- High-power, big aperture full color (RGBwWA), IP65 blinder in the STRIKE Array Family
- Class defining output for stadium filling light in any color or high quality white with our trademark red-shift dimming
- Features motorized pan (or tilt based on mount orientation), and RGB ring with segment control for added versatility and effects

60,000+ Lumen Single-Source Punch:

A single high-output pod delivers 60,000+ lumens of blinder-intensity impact-built to read on camera and carry from studio floors to stadium tours

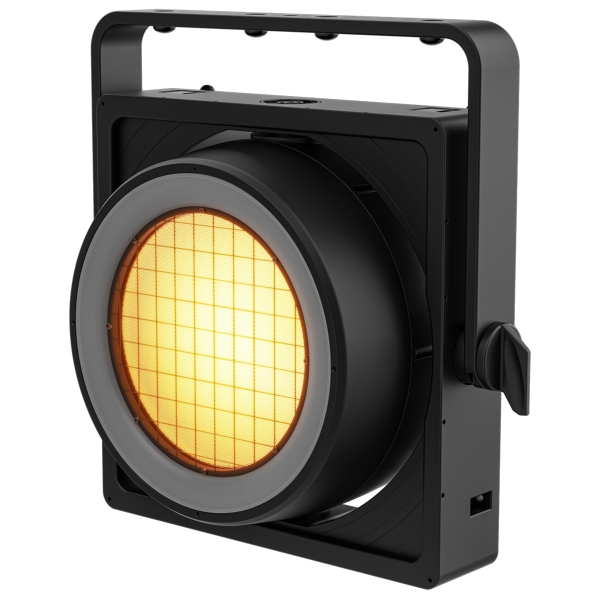

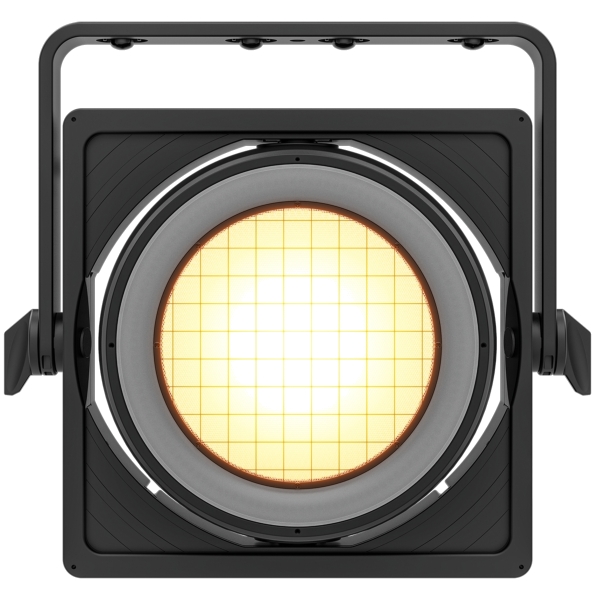

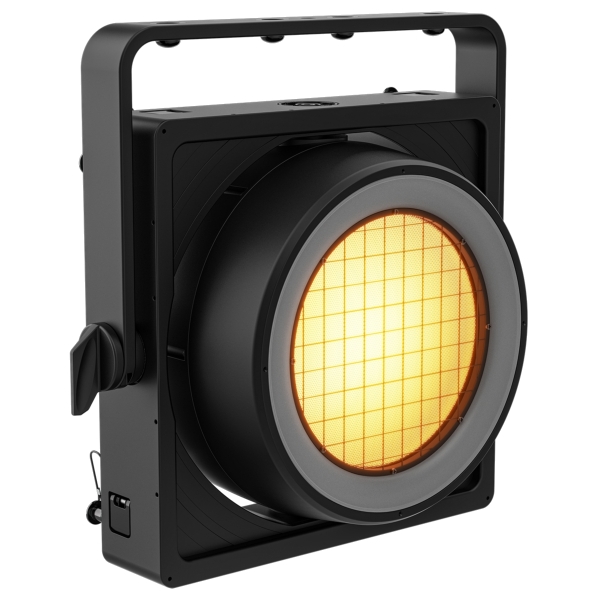

RGBA-WW color mixing produces saturated color and clean, high-CRI whites, with red-shift dimming for natural warmth on fades and superior on-camera skin tones

A single motorized axis provides pan or tilt movement, adding a layer of dynamic motion to traditional blinder effects for more engaging looks

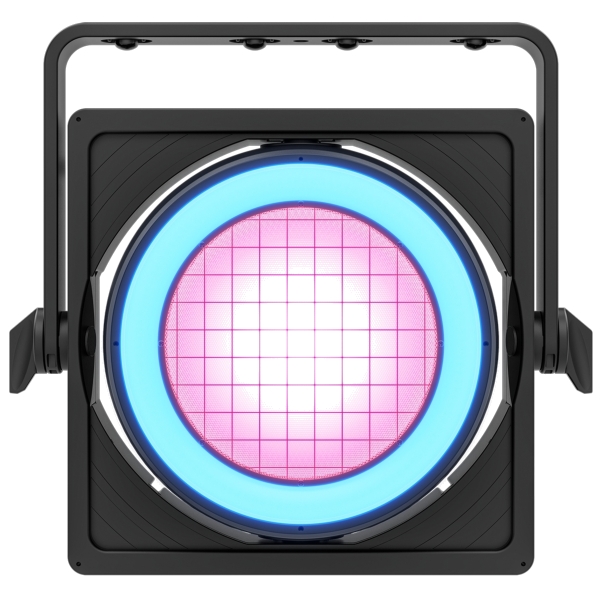

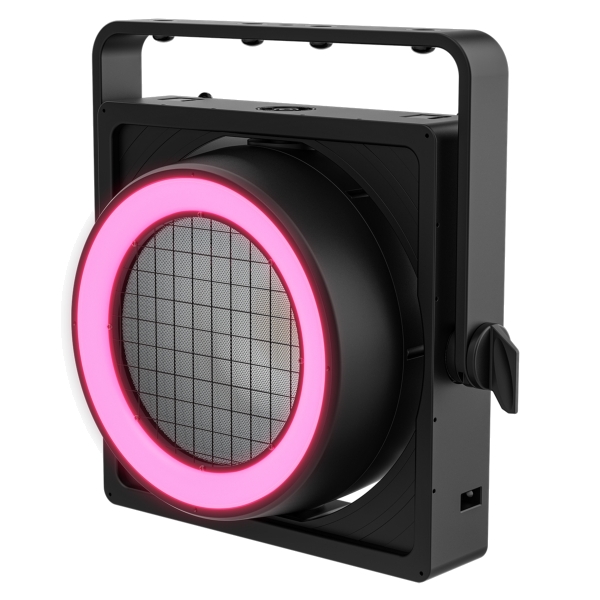

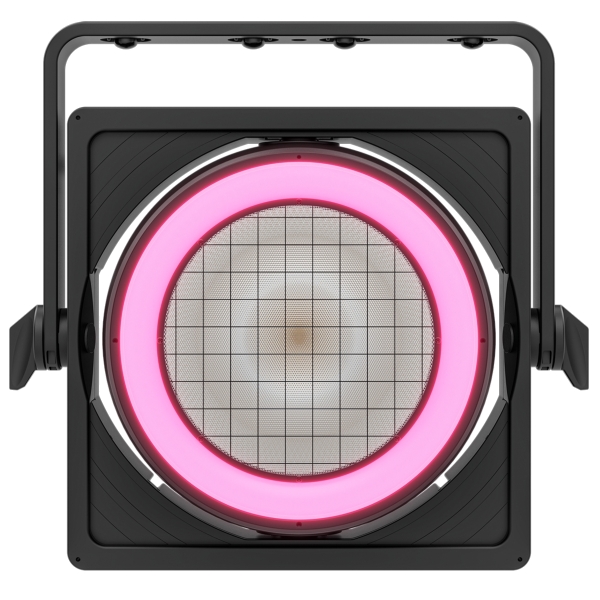

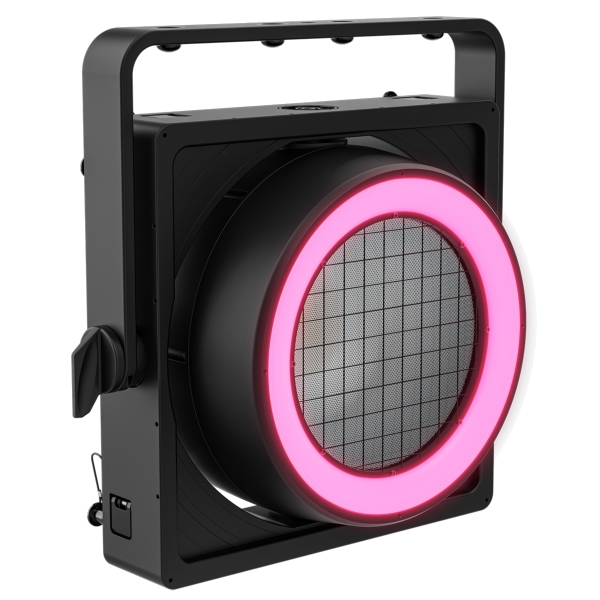

A distinctive 12-segment RGB ring adds pixel-style effects, chases, and eye-candy-expanding looks beyond "on/off blinder" for live and broadcast

Physically mounts with all fixtures in the STRIKE Array family for seamless lineup builds, consistent rigging, and familiar deployment across existing systems

Chauvet Pro Array Ultra RGBA-WW Motorised LED Wash/Blinder with RGB Ring Specifications

Optical:
- Light Source: Pod 1 LEDs (RGBWWA)
- Light Source: Ring 120 LEDs (RGB)

Dynamic Effects:
- Pan: +-25°
- Pan Ranges: 50°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30Hz
- Standalone Colour Mixing: Yes
- Colour Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes

Connections:
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
- Cable Length (power): 5 ft (1.5 m)
- Software Update: USB-C

Control:
- Control Protocol: Art-Net, sACN, DMX, RDM
- DMX Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
- Art-Net Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
- Modes/Personalities: 11 personalities (4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 230 V;
- Power and Current: 995 W, 4.34 A @ 230 V, 50 Hz

Certifications / Qualifications:
- Compliance: CE, MET, FCC
- MET Listing Number: [E113093-1110, E113093-1125]
- US Safety: [UL 60950-1]
- Canadian Safety: [CSA C22.2 No. 60950-1]
- Thermal Dissipation @ 230V: 819 BTU per hour
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical:
- Dimensions: 486 x 452 x 280 mm
- Weight: 18 kg
- Exterior Colour: Black
- Housing Material: Aluminium Profile, Die-casting magnesium
- IP Rating: IP65

Further Product Information Below

Chauvet Pro Strike Array Ultra Manual (PDF)

Chauvet Pro Strike Array Ultra Data Sheet (PDF)

Chauvet Pro Strike Array Ultra DMX Chart (PDF)

Chauvet Pro Array Ultra RGBA-WW Motorised LED Wash/Blinder with RGB Ring Supplied With

- Chauvet STRIKE Array Ultra
- Seetronic Powerkon IP65
- 2x Omega bracket
- Stealth Filter
