Citronic DMX-SR8 19-Inch Rack-Mount 8-Way DMX Splitter

Name: Citronic DMX-SR8 19-Inch Rack-Mount 8-Way DMX Splitter
Brand: Citronic
Price: 107.64 GBP
Availability: InStock

Price Each £89.70 (£107.64 Including VAT at 20%)

REF: JP115132

Quantity:

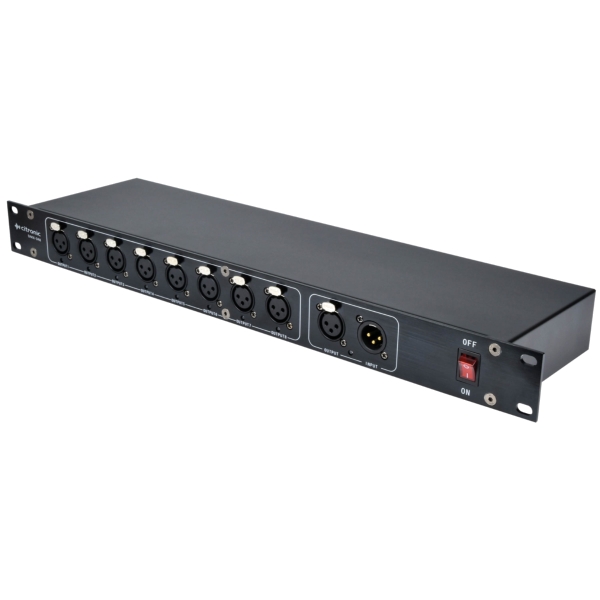

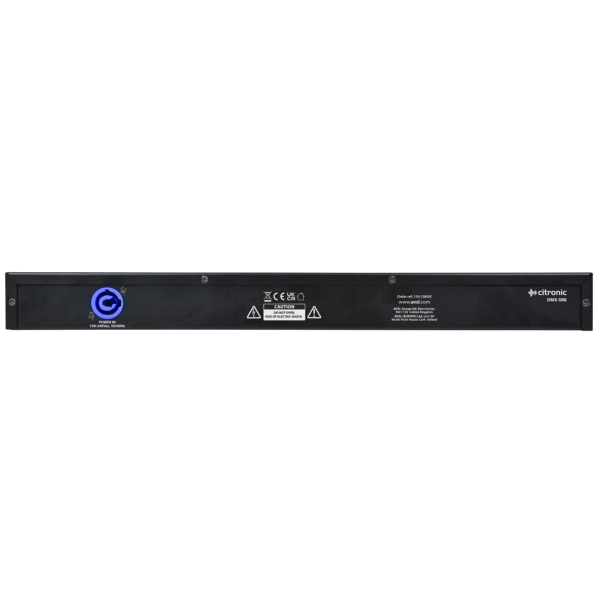

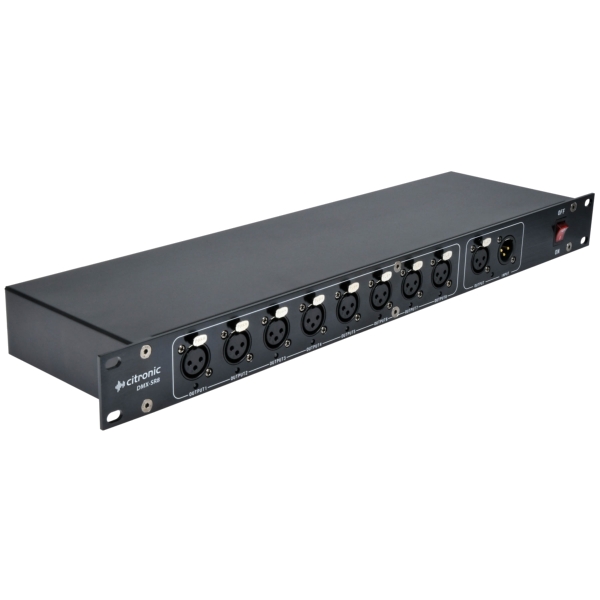

Citronic DMX-SR8 19-Inch Rack-Mount 8-Way DMX Splitter

The Citronic DMX-SR8 19-Inch Rack-Mount 8-Way DMX Splitter is designed to distribute a single DMX512 signal to multiple lighting fixtures while maintaining signal integrity. The unit features one DMX input, a link output, and eight isolated outputs to protect connected equipment from interference or faults on the DMX line. Housed in a robust 1U 19-inch rack chassis, this splitter is ideal for fixed installations, touring racks, and professional lighting control systems where reliable DMX distribution is required.

Click Here for Printer Friendly Version

Citronic DMX-SR8 19-Inch Rack-Mount 8-Way DMX Splitter Features

- 8 (or 4) DMX signal distribution outputs with electrical isolation
- Supports up to 32 fixtures per output
- 19-inch Rack Mountable (1U)
- Electrical isolation between input and thru output

Citronic DMX-SR8 19-Inch Rack-Mount 8-Way DMX Splitter Specifications

- DMX connection: 1x 3-Pin Input, 1x 3-Pin Thru, 8x 3-Pin Output
- Power connection: Power in (twist and lock)
- Power supply: AC90V~240V, 50Hz/60Hz
- Power consumption: 15w
- Dimensions: 45mm x 140mm x 484 mm
- Weight: 1.77 kg

Citronic DMX-SR8 19-Inch Rack-Mount 8-Way DMX Splitter Supplied With

- Citronic DMX-SR8
- Twist and Lock UK mains lead (1.5m)
