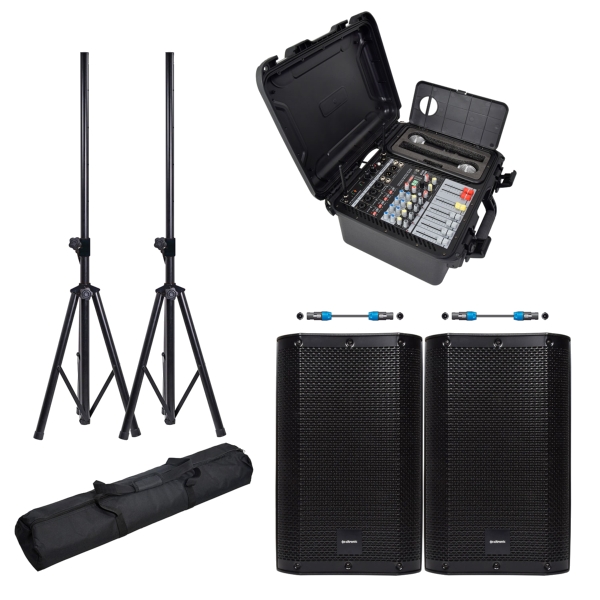

Citronic FLITE-600 Complete PA Bundle with 2x Citronic CASA-10 Speakers

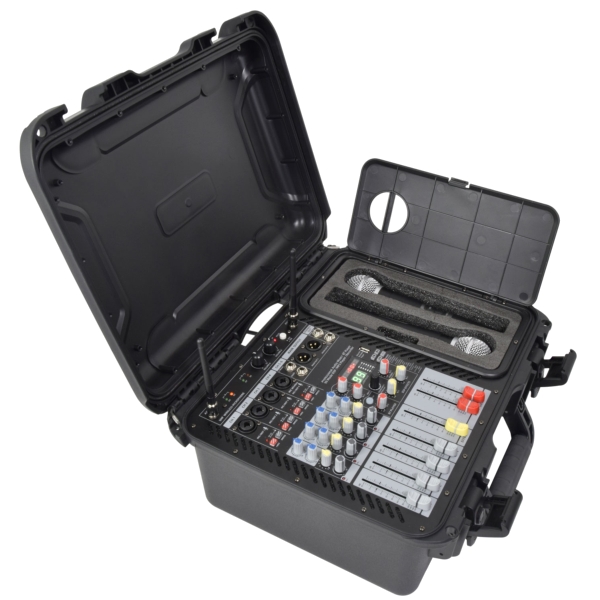

Citronic FLITE-600 Complete PA Bundle Features

- 2x 300W powered mixer
- 2x 10-inch full-range PA cabinets
- 2x 6m SpeakON speaker leads
- 2x tripod speaker stands + carry bag
- 2x UHF wireless handheld microphones
- 99 program DSP effects
- Bluetooth connectivity
- USB player/recorder and interface

Adastra MM321 1U Rack Mixer with Bluetooth, USB Player and FM Tuner Specifications

- Power supply: 100-240Vac, 50/60Hz (IEC)
- Fuse: T1AL
- Inputs (Mic): 3x XLR (bal/unbal)
- Inputs (Aux): 2x L+R RCA
- Input (Line): 3.5mm jack to media player
- Audio source: Internal Bluetooth, USB & FM player
- Outputs: L+R XLR, Mono 6.3mm jack, Record out (RCA)
- Emergency control: 24V contacts mute all except channel 1
- Phantom power: +20V (switchable channels 1-3)
- Front panel controls: Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
- Rear panel controls: Priority muting level, mic/line and phantom DIP switches
- Input impedance: 2.2 k? (Mic/Line), 10 k? (Aux)
- Frequency response (Mic): 20Hz - 18kHz
- Frequency response (Line): 14Hz - 20kHz
- Frequency response (Aux): 10Hz - 23kHz
- Input sensitivity (Mic/Line): -45dBV
- Input sensitivity (Aux/Line): -10dBV
- Signal to noise ratio (Mic): 55dB
- Signal to noise ratio (Aux/Line): 60dB
- THD: 0.05%
- Dimensions: 482 x 130 x 44mm
- Weight: 1.43kg

---

Citronic CUBA-8 Passive 8-Inch Full-Range Speaker Specifications

- Construction: Polyurea coated MDF + powder-coated steel grille
- Connection: 2x Speakon sockets
- Frequency Response: 60 Hz - 20 kHz
- Drivers:
  - HF: 35 mmØ (1.35-inch) with Titanium Compression Driver
  - LF: 200 mmØ (8-inch) woofer with 50 mmØ (2-inch) voice coil
- Power Handling:
  - RMS: 250 W
  - Max: 500 W
- Sensitivity: 95dB
- SPL (Max): 121 dB

Physical:
- Dimensions (W x H x D): 265 x 435 x 265 mm
- Weight: 10 kg

---

Citronic TU4-H Specifications

- Power supply 12-18Vdc, 500mA (mains adaptor supplied)
- Carrier Frequencies:
  - 823-832MHz (Channel 65 - License Required)
  - 863-865MHz (Channel 70 - License Free)
- Wireless range: Up to 60m (Line of Sight)
- Antenna connection: 2x BNC
- Batteries: 2x AA per channel

Reciever:
- Dimensions: 482 x 185 x 44 mm
- Weight: 1.5 kg

Handheld:
- Dimensions: 258 x 47 mmØ
- Weight: 354 g (no battery)

Further Product Information Below

Citronic FLITE 600 Manual (PDF)

Citronic D1000-4xCUBA-8 Supplied With

- 1x MM321 rack mixer + BT/USB/FM
- 1x 8K HDMI audio extractor
- 1x 3.5mm - XLR M lead 1.5m
- 1x HDMI cable 5.0m
- 1x TU4 quad PLL handheld mic set
- 1x mono Jack-XLRM lead 1.5m
- 1x D1000 class-D amplifier 2 x 500W
- 1x twin XLRF - XLRM lead 0.75m
- 4x speaker leads 12.0m
- 4x CUBA-8 PA cabinets
- 1x 6U rack cabinet 450mm deep
- 1x 4-gang extension lead black 2m
- 3x 1U perforated rack blanking panels
