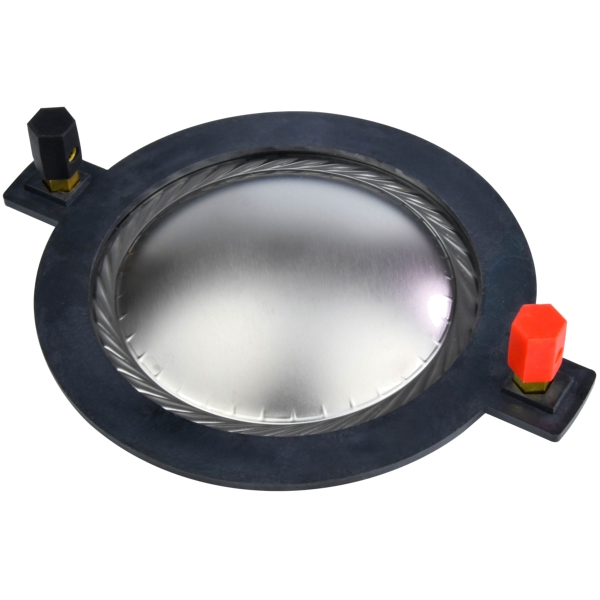

Citronic TDCORVA-1215 HF Replacement Diaphragm for CORVA-12 & CORVA-15, 150W @ 8 Ohms

The Citronic TDCORVA 1215 HF Replacement Diaphragm for driving the horn flare of a high power PA cabinet. The voice coil is mated to a 50mmØ Titanium diaphragm, handling up to 150Wrms of high frequency top produce the very high SPLs of upper frequencies needed in commercial sound reinforcement enclosures. A direct replacement for CORVA-12 and CORVA-15 active or passive PA cabinets.

Direct replacement for the Citronic CORVA12 & CORVA15 speakers.

Click Here for Printer Friendly Version

Citronic TDCORVA-1215 HF Replacement Diaphragm Features

- Up to 150Wrms power handling
- Accurate and efficient Titanium diaphragm

Citronic TDCORVA-1215 HF Replacement Diaphragm Specifications

- Impedance: 8 Ω
- Power handling:
- RMS: 150W
- Max: 300W
- Frequency response: 800Hz-20kHz
- Diaphragm: Titanium - 140 x 110 x 30mm, 40.3g
- Sensitivity: 105dB/mW
- Voice coil: 75mmØ (3-inch) Kapton
- Magnet Ceramic: 1.75 kg (62oz)
- Throat: 50mmØ (2-inch)
- Dimensions: 125 x 225 mmØ
- Weight: 4.5 kg

New Products

Adastra WA-225 Wall-Mount Amplifier with USB/SD, FM Tuner and Bluetooth, 2x 25w @ 4 Ohms

Price Each £50.49 (£60.59 Including VAT at 20%)

Citronic D1000-4xCUBA-8 Medium Hall PA Install Package, ~120msq

Price Each £1,195.31 (£1,434.37 Including VAT at 20%)

Adastra 1U 12x D-Type Punched 19-Inch Rack Panel

Price Each £8.01 (£9.61 Including VAT at 20%)

Adastra 1U 4x D-Type Punched 19-Inch Rack Panel

Price Each £7.77 (£9.32 Including VAT at 20%)

Adastra 1U 8x D-Type Punched 19-Inch Rack Panel

Price Each £7.89 (£9.47 Including VAT at 20%)

Citronic SMS001 Small Studio Swivel Microphone Boom Arm

Price Each £14.77 (£17.72 Including VAT at 20%)

Adastra A2300 Mixer-Amplifier, 2x 300w @ 4 Ohms

Price Each £167.23 (£200.68 Including VAT at 20%)

Adastra A4300 Mixer-Amplifier, 4x 300w @ 4 Ohms

Price Each £203.42 (£244.10 Including VAT at 20%)

Adastra A6300 Mixer-Amplifier, 6x 300w @ 4 Ohms

Price Each £277.06 (£332.47 Including VAT at 20%)

Adastra CA-5D 5.25-Inch EN54-24 Fire-Rated Ceiling Speaker, 6W @ 8 Ohms or 100V Line

Price Each £17.31 (£20.77 Including VAT at 20%)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Citronic TDCORVA-1215 HF Replacement Diaphragm for CORVA-12 & CORVA-15, 150W @ 8 Ohms

Related products:

Citronic CORVA-12 12 inch Passive Speaker, 700W @ 8 Ohms

Citronic CORVA-15 15 inch Passive Speaker, 900W @ 8 Ohms

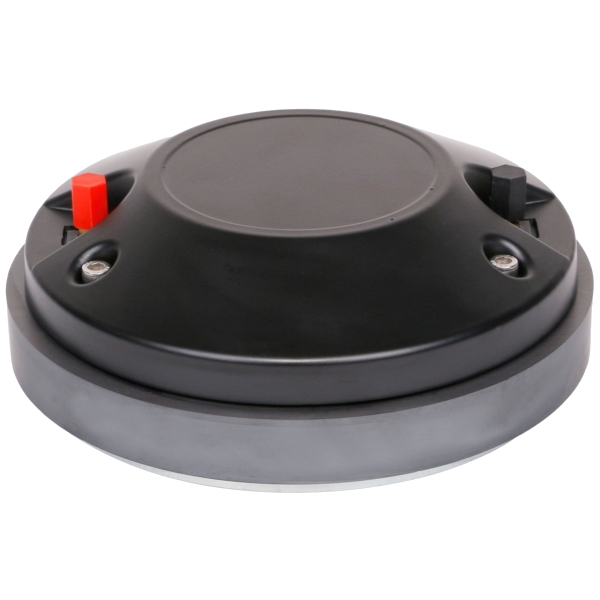

Citronic HFCORVA-1215 HF Replacement Compression Driver for CORVA-12 & CORVA-15, 150W @ 8 Ohms
