Citronic Large Portable Passive PA Package

Citronic Large Portable Passive PA Package Features

- Mixer with inbuilt USB / Bluetooth / DAB+ player
- 4U rack bag for UHF receiver, mixer & amp
- Speaker stands and connecting leads included

Citronic Large Portable Passive PA Package Specifications

Adastra MM321 1U Rack Mixer with Bluetooth, USB Player and FM Tuner Specifications

- Power supply: 100-240Vac, 50/60Hz (IEC)
- Fuse: T1AL
- Inputs (Mic): 3x XLR (bal/unbal)
- Inputs (Aux): 2x L+R RCA
- Input (Line): 3.5mm jack to media player
- Audio source: Internal Bluetooth, USB & FM player
- Outputs: L+R XLR, Mono 6.3mm jack, Record out (RCA)
- Emergency control: 24V contacts mute all except channel 1
- Phantom power: +20V (switchable channels 1-3)
- Front panel controls: Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
- Rear panel controls: Priority muting level, mic/line and phantom DIP switches
- Input impedance: 2.2 kΩ (Mic/Line), 10 kΩ (Aux)
- Frequency response (Mic): 20Hz - 18kHz
- Frequency response (Line): 14Hz - 20kHz
- Frequency response (Aux): 10Hz - 23kHz
- Input sensitivity (Mic/Line): -45dBV
- Input sensitivity (Aux/Line): -10dBV
- Signal to noise ratio (Mic): 55dB
- Signal to noise ratio (Aux/Line): 60dB
- THD: 0.05%
- Dimensions: 482 x 130 x 44mm
- Weight: 1.43kg

Citronic D600 Class-D Power Amplifier Specifications

- Power supply: 220-240Vac, 50/60Hz (IEC)
- Fuse: T8A (20 x 5mm)
- Modes:
  - Stereo
  - Parallel (mono)
  - Bridge (mono)
- Input sensitivity: 0.775V - 1.0V - 1.44V switchable
- Low-cut filter: 75Hz switchable
- Input connections: L+R XLR female (L+R XLR male through)
- Output connections: L+R SPK connectors (+1 for bridge mode)
- Power (RMS):
  - 4 Ω: 2x 300 W
  - 8 Ω: 2x 150 W
  - Bridged @ 8 Ω: 1x 600 W

Physical:
- Dimensions: 482 x 245 x 44 mm
- Weight: 3.77 kg

Citronic CASA-12 Passive 12 Inch Speaker Specifications

- Impedance: 8 Ohms
- Connection: 2x SPK socket
- LF Driver: 300mmØ (12-inch) with 75mmØ (3-inch) Voice Coil
- HF Driver: 35mmØ (1.35-inch) Ti compression driver
- Power Handling:
  - RMS: 300W
  - Peak: 600W

Physical:
- Dimensions: 610 x 375 x 340mm
- Weight: 11.0kg

Further Product Information Below

Adastra MM321 Manual (PDF)

Citronic D600 Manual (PDF)

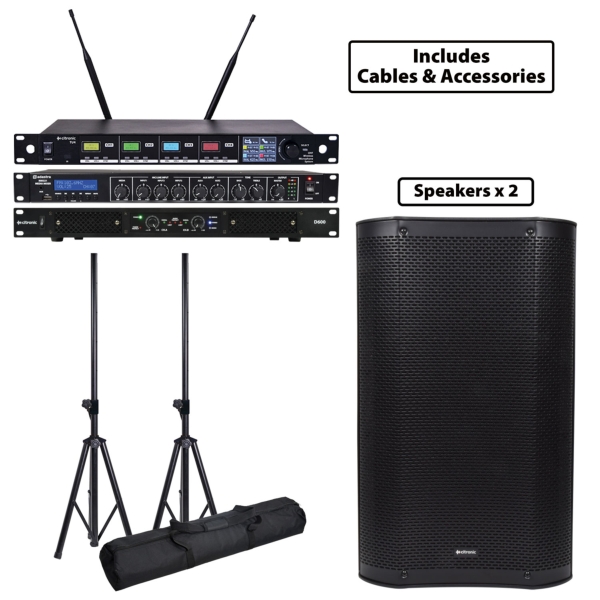

Citronic Large Portable Active PA Package Supplied With

- 1x MM321 rack mixer + BT/USB/FM
- 1x TU4 quad PLL handheld mic set
- 1x D600 Class-D power amp
- 1x 1U perforated rack blanking panel
- 1x 4U rack bag
- 1x twin XLRF - XLRM lead 0.75m
- 2x CASA-12 PA speaker 300W each
- 1x 2 speaker stand kit inc bag
- 2x speaker leads 12.0m
- 1x 4-gang extension lead black 2m
- 1x mono jack-XLRM lead 1.5m
