Citronic Large Halls PA Package, ~180msq

Citronic Large Halls PA Package Features

- Up to 1400Wrms output power
- Mixer with inbuilt USB / Bluetooth / DAB+ player
- HDMI audio extractor and connecting cables
- Wall or floor mountable rack cabinet & accessories

Citronic Large Halls PA Package Specifications

Adastra MM321 1U Rack Mixer with Bluetooth, USB Player and FM Tuner Specifications

- Power supply: 100-240Vac, 50/60Hz (IEC)
- Fuse: T1AL
- Inputs (Mic): 3x XLR (bal/unbal)
- Inputs (Aux): 2x L+R RCA
- Input (Line): 3.5mm jack to media player
- Audio source: Internal Bluetooth, USB & FM player
- Outputs: L+R XLR, Mono 6.3mm jack, Record out (RCA)
- Emergency control: 24V contacts mute all except channel 1
- Phantom power: +20V (switchable channels 1-3)
- Front panel controls: Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
- Rear panel controls: Priority muting level, mic/line and phantom DIP switches
- Input impedance: 2.2 kΩ (Mic/Line), 10 kΩ (Aux)
- Frequency response (Mic): 20Hz - 18kHz
- Frequency response (Line): 14Hz - 20kHz
- Frequency response (Aux): 10Hz - 23kHz
- Input sensitivity (Mic/Line): -45dBV
- Input sensitivity (Aux/Line): -10dBV
- Signal to noise ratio (Mic): 55dB
- Signal to noise ratio (Aux/Line): 60dB
- THD: 0.05%
- Dimensions: 482 x 130 x 44mm
- Weight: 1.43kg

Citronic PLX2000 Power Amplifier, 2x 700W @ 4 Ohms Specifications

- Power supply: 230Vac, 50Hz (IEC)
- Controls: Level channel 1, level channel 2, ground, mode, clip limiter
- Input Impedance: 20kΩ
- Frequency Response: 5Hz - 50kHz
- Total Harmonic Distortion: 0.05%
- Slew Rate: 40V/us
- Damping Factor: >400
- Speaker Output: 4mm Binding Post pair and Speakon per channel (Rear Mounted)
- Protection: Short-circuit, overload, D.C. and thermal protect
- Dimensions: 482 x 453 x 88 mm, 2U
- Output Power (RMS):
  - 2x 1000W @ 2Ω
  - 2x 700W @ 4Ω
  - 2x 400W @ 8Ω
  - 1x 1700W @ 4Ω (Bridged)
  - 1x 1250W @ 8Ω (Bridged)

Citronic CUBA-12 Passive 12-Inch Full-Range Speaker Specifications

- Construction: Polyurea coated MDF + powder-coated steel grille
- Connection: 2x Speakon sockets
- Frequency Response: 45 Hz - 20 kHz
- Drivers:
  - HF: 35 mmØ (1.35-inch) with Titanium Compression Driver
  - LF: 300 mmØ (12-inch) woofer with 64 mmØ (2.5-inch) voice coil
- Power Handling:
  - RMS: 400 W
  - Max: 800 W
- Sensitivity: 98 dB
- SPL (Max): 123 dB

Physical:
- Dimensions (W x H x D): 385 x 625 x 380 mm
- Weight: 18 kg

Further Product Information Below

Adastra MM321 Manual (PDF)

Citronic PLX2000 Manual (PDF)

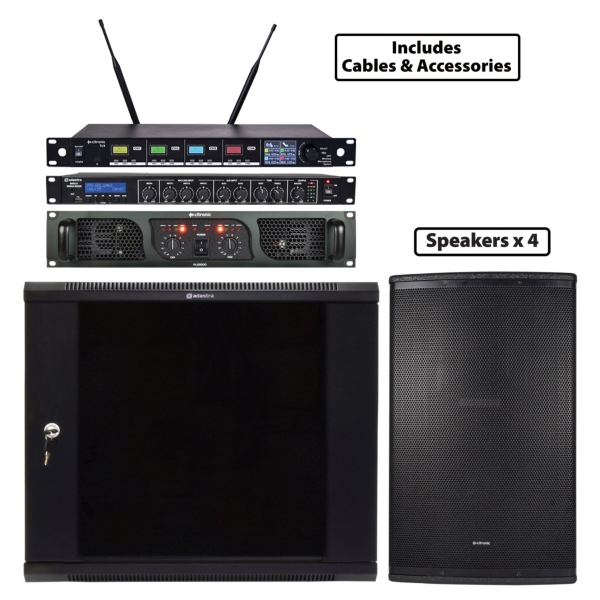

Citronic Large Halls PA Package Supplied With

- 1x MM321 rack mixer + BT/USB/FM
- 1x 8K HDMI audio extractor
- 1x 3.5mm - XLR M lead 1.5m
- 1x HDMI cable 5.0m
- 1x TU4 quad PLL handheld mic set
- 1x mono Jack-XLRM lead 1.5m
- 1x PLX2000 amplifier 2 x 700W
- 1x twin XLRF - XLRM lead 0.75m
- 4x speaker leads 12.0m
- 4x CUBA-12 PA cabinets
- 4x 35mm speaker wall brackets
- 1x 9U rack cabinet 600mm deep
- 1x 4-gang extension lead black 2m
- 2x 2U perforated rack blanking panels
- 1x 1U perforated rack blanking panel
