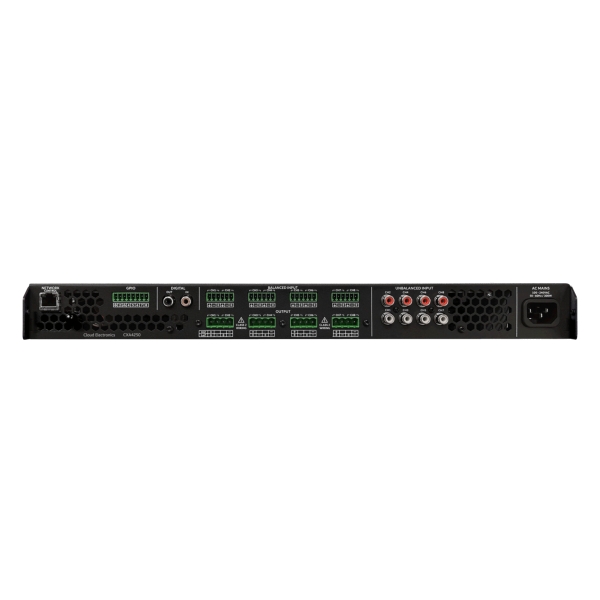

Cloud CXA4250 4/8-Channel Digital Power Amplifier, 4x 250W @ 8 Ohms or 70V / 100V Line

Cloud CXA4250 4/8-Channel Digital Power Amplifier Features

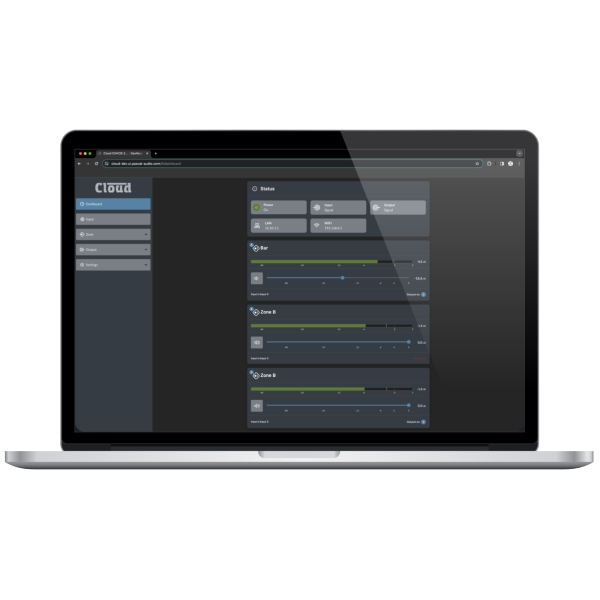

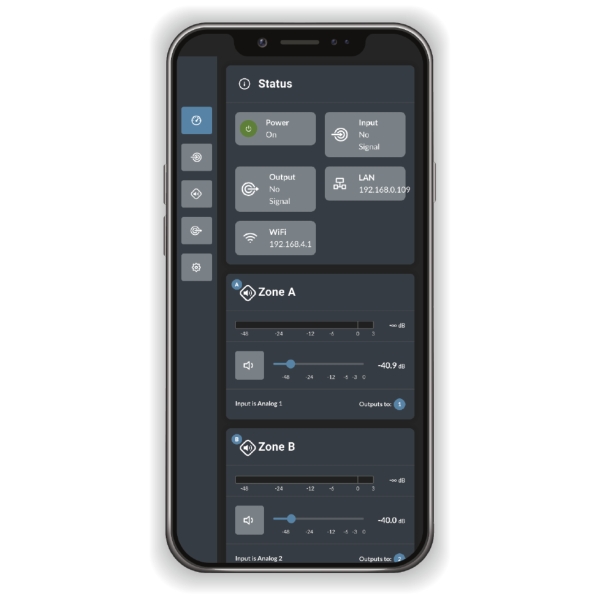

- Full-matrix DSP configuration via built in CXA web app

Cloud CXA4250 4/8-Channel Digital Power Amplifier Specifications

- Total System Power: 1000 W
- Output Power:
  - @ 4/8 Ω: 8x 125 W
  - @ 70/100V: 4x 250 W
- Powershare (up to): 4x 250 W
- Power Consumption: 300 W
- Power Ratings: 1% THD @ 120Vac and 230Vac
- Output Circuitry: UMAC Class D - full bandwidth PWM modulator with ultra-low distortion
- Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
- Signal To Noise-Ratio: >106dB (A-weighted, 20Hz-20kHz, 8Ω load)
- THD+N (typical): < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
- Frequency Response: 20Hz-20kHz (+0/-0.8dB (8Ω load, 3dB below rated power)
- Protection Circuits:
  - Short circuit
  - DC
  - Undervoltage
  - Temperature
  - Overload protection
- Power Supply: UREC universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
- Operating temperature: 0-40°C
- Operating Voltage / Frequency: Universal Mains, 100V-240V, 50Hz-60Hz
- Standby Consumption: < 0.6W
- Dimensions: 44 x 220 x 319 mm
- Weight: 3.8 kg

Power Efficiency @ ⅛ Full Power:
- Load: 4 Ω
- Power In: 200 W
- Power Out: 125 W
- Efficiency: 62.5 %
- Thermal Loss: 75 W
- Thermal Loss: 256 BTU

Power Efficiency Stand By:
- Standby: <500 mW
- Idle @ 230V: 30.2 W
- Idle @ 230V: 103 BTU

Further Product Information Below

Cloud CXA 4250 Manual (PDF)

Cloud CXA-Series Quick Reference Guide (PDF)

Cloud CXA4250 4/8-Channel Digital Power Amplifier Supplied With

- 1x Cloud CXA-4250
- 4x Output connector
- 2x Rack mount ears (fitted)
- 4x Adhesive rubber feet
- Mains power cable
- Document pack
- 4x Input connector
- GPIO socket connector
