Cloud BT-2EB Bluetooth Wireless Audio Module - Black

Name: Cloud BT-2EB Bluetooth Wireless Audio Module - Black
Brand: Cloud
Price: 258.65 GBP
Availability: InStock

Price Each £215.54 (£258.65 Including VAT at 20%)

REF: JP106785

Quantity:

Cloud BT-2EB Bluetooth Wireless Audio Module - Black

The Cloud BT-2EB Bluetooth Wireless Audio Module is a wall-mounting remote input module for use with Cloud DCM1 Series products fitted with an RJ45 Extension Port. The BT-2 enables compatible portable devices such as laptops, tablets and smartphones to stream audio wirelessly into the installed zone.

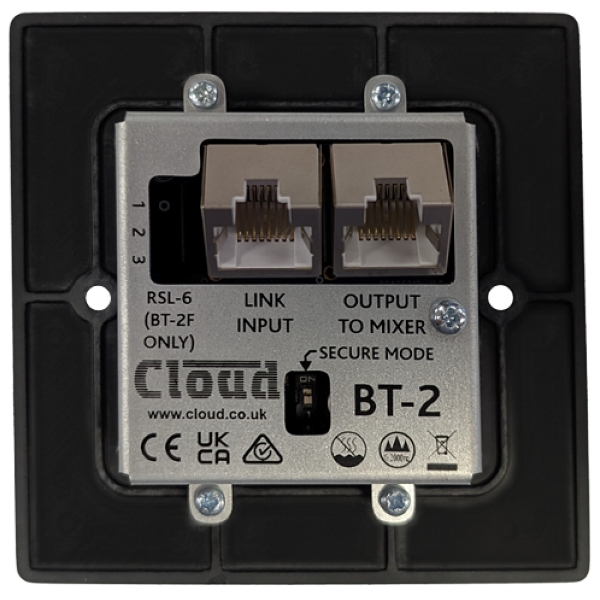

The BT-2 is exceptionally simple to install; the rear RJ45 connector is wired to one of the host unit’s Extension Ports with a single screened Cat 5 cable using standard shielded RJ45 connectors at each end. The Cat 5 cable carries DC power as well as balanced audio.

Click Here for Printer Friendly Version

Cloud BT-2EB Bluetooth Wireless Audio Module Features

- Remote Bluetooth input module for Cloud host units with with Facility Port Capability
- Easy connection to host unit via screened Cat 5 cable
- Uses single-button Bluetooth “pairing” mode for secured operation
- Alternative "unsecured" mode: configurable at installation
- Micro USB Connection for plate naming
- RF power level adjustment to minimise risk of accidental inter-room connection
- Bicolour LED indicating connection progress and streaming activity
- May be daisy-chained to remote input modules (e.g., LM-2) in same Zone
- RSL-6 or RL-1 remote plates may be daisy-chained to BT-2
- UK versions mount into a standard single-gang UK-style electrical back box (85 x 85 mm) and require a back box depth of 35 mm minimum

Cloud BT-2EB Bluetooth Wireless Audio Module Specifications

- Input module: Bluetooth
- Connection: Screened Cat 5 cable (up to 100m)
- Indicators: Bicolour LED
- Colour: Black or White
- UK versions mount into a standard single-gang UK-style electrical back box
Height: 85mm
- Width: 85mm
- Depth: 35mm

Cloud BT-2EB Bluetooth Wireless Audio Module Compatibility

- Cloud DCM1 Digital Control Zone Mixer
- Cloud DCM1e Ethernet Digital Control Zone Mixer
