Cloud CS-C6B Ceiling Speaker - Black

Cloud CS-C6B Ceiling Speaker - Black

Cloud CS-C6B Ceiling Speaker - Black

Price Each 88.24 Exc VAT or (105.89 Inc VAT at 20%)

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Ref: JP33110


Click Here For PDF

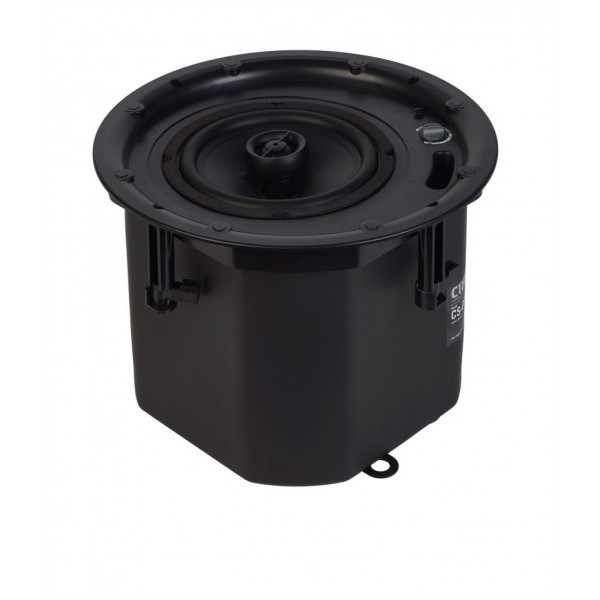

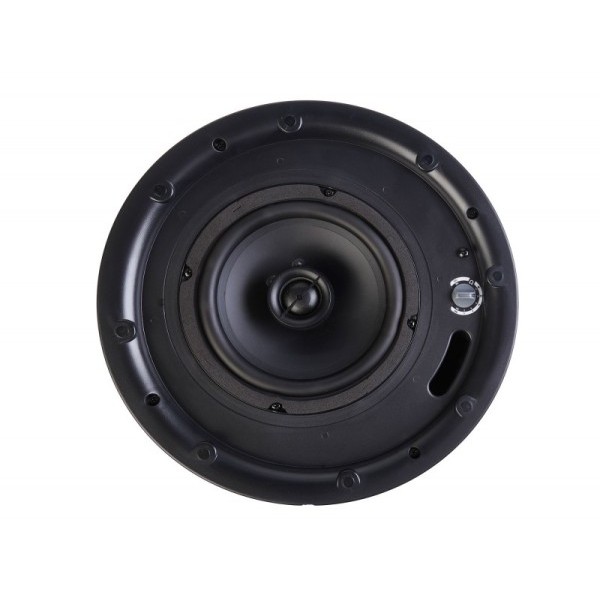

The Cloud CS-C6B In-Ceiling Speaker is a 6-inch coaxial two-way loudspeaker featuring exceptional intelligibility and musical performance. Using premium drivers and electronics, the CS-C6 offers high sensitivity, smooth frequency response and excellent off-axis performance. The 6.5 inch woofer incorporates a large magnet structure, a treated paper cone, and a butyl rubber surround for lasting, low distortion performance. The 1.0 inch tweeter is a silk soft dome with a phase plug to smoothly distribute the high frequency energy. The included 32 W transformer provides plenty of power for even high SPL applications. The 16 ohm impedance allows for easy low impedance daisy chaining. The CS-C6 incorporates several innovative features that make it a truly remarkable speaker. The ZeroEdge grille is magnetically attached for easy installation, and features a completely seamless transition from grille to ceiling. The entire CS-C series of speakers uses the same diameter back can which simplifies installation, and inventory management with only one size hole to cut, one size grille to install, and one size tile bridge to bring to the job site.


Magnetic ZeroEdge grille with removable badge to allow for disrcrete use
Easy inventory management with a single tile bridge and common grilles for the whole CS-C series
Only one hole size to cut for all models within the CS-C series
Premium drivers and electronics for exceptional sound quality and intelligibility
Integrated high power transformer
16 ohm impedance for low impedance daisy chaining
Low profile back can for installation into small ceiling voids
Front mounted tap switch
4-pin quick connector for easy daisy-chaining and secure connections


Description 6.5 2-way in-ceiling with magnetic grille and steel back can.
Response (f3) 87 Hz -20 kHz
Response (f10) 65 Hz -20 kHz
Impedance 16 ohm
Sensitivity (2.83 V/1 m) 88 dB
Sensitivity (1 W/1 m) 91 dB
Power handling 50 W
Maximum SPL 108 dB
Average coverage angle (2 kHz - 10 kHz) 144
Transformer taps 32,16, 8, 4, 2 W
Tweeter 1 inch silk dome with phase plug
Woofer 6.5 inch treated paper with rubber surround
Input 4 pin Euroblock
Included accessories Input cover plate (installed), male Euroblock
Available colours Black, white
Optional accessories Tile bridge
Dimensions: 286.0mm x 210.2mm.
Weight: 3.4kg net, 4.2kg gross.
Packaging 1 per box, cardboard inner packaging, single instruction sheet
Conformance UL1480 / 2043 planned, RoHS, CE approved
