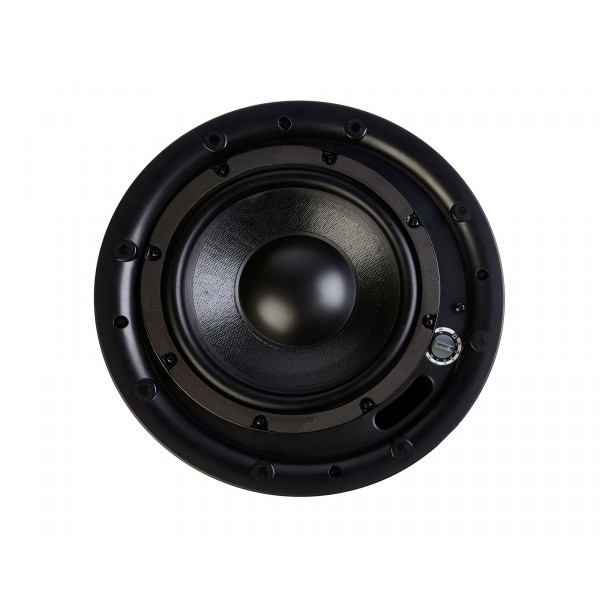

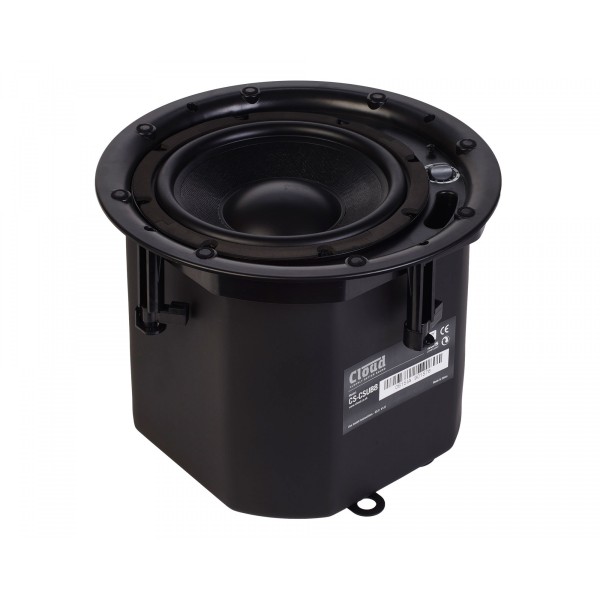

The Cloud CS-CSUB8 is an 8 inch in-ceiling subwoofer featuring deep bass and exceptional musical performance. Using premium drivers and electronics, the CS-CSUB8 offers excellent low frequency reinforcement. The 8.0 inch woofer incorporates a large magnet structure, a treated paper cone, and a butyl rubber surround for lasting, low distortion performance. The included 100 W transformer provides plenty of power for even high SPL applications. The CS-CSUB8 incorporates several innovative features that make it a truly remarkable speaker. The ZeroEdge™ grille is magnetically attached for easy installation, and features a completely seamless transition from grille to ceiling. The entire CS-C series of speakers uses the same diameter back can which simplifies installation, and inventory management with only one size hole to cut, one size grille to install, and one size tile bridge to bring to the job site.
Magnetic ZeroEdge™ grille with removable badge
Easy inventory management with a single tile bridge and common grilles for the whole CS-C series
Only one hole size to cut for all models within the CS-C series
Premium drivers and electronics for exceptional sound quality and intelligibility
Integrated high power transformer with transformer bypass
Integrated back can
Description 8” in-ceiling sub, with magnetic grille and steel back can.
Response (f3) 74 Hz -200 Hz
Response (f10) 58 Hz -500 Hz
Impedance 4 ohm Sensitivity (2.83 V/1 m) 90 dB
Sensitivity (1 W/1 m) 87 dB
Power handling 100 W
Maximum SPL 107 dB
Transformer taps 100, 50, 25,13, 7 W
Tweeter n/a Woofer 8 inch treated paper with rubber surround
Input 4 pin Euroblock
Included accessories Input cover plate (installed), male Euroblock
Optional accessories Tile bridge
Dimensions: 286.0mm x 210.2mm.
Net weight/Gross weight 3.7 kg (8.16 lb) / 4.5 kg (9.2 lb)
Packaging 1 per box, cardboard inner packaging, single instruction sheet
Conformance UL1480 / 2043 planned, RoHS, CE approved
