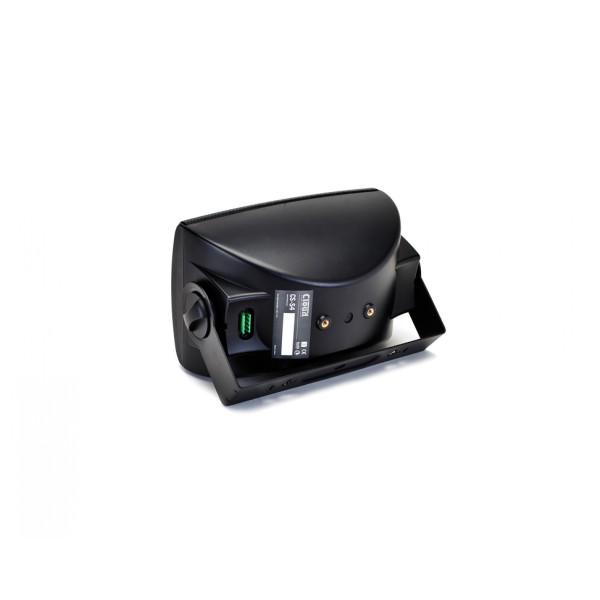

Cloud CS-S4B Surface mount Speakers - Black

Cloud CS-S4B Surface mount Speakers - Black

Cloud CS-S4B Surface mount Speakers - Black

Price Each 82.67 Exc VAT or (99.20 Inc VAT at 20%)

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Ref: JP33119

<Back

Click Here For PDF User Manual

The Cloud CS-S4 is a 4.0 inch coaxial two way surface mount loudspeaker featuring exceptional intelligibility and musical performance. Suitable for internal or outdoor use, the CS-S4 conforms to IP rating IP55 (protection from limited dust ingress, and low pressure water jets from any direction) when fitted with the supplied port plug. Using premium drivers and electronics, the CS-S4 offers high sensitivity, smooth frequency response, and excellent off axis performance. The 4.0 inch woofer incorporates a large magnet structure, a polypropylene cone, and a butyl rubber surround for lasting, low distortion performance. The 19mm (0,75 in) soft dome tweeter contributes to the smooth distribution of off axis HF energy. The included 20 W transformer provides plenty of power for background to foreground applications. The 16 ohm impedance allows for easy low impedance daisy chaining.

Features

Easy access front mounted tap switch
Premium drivers and electronics for exceptional sound quality and intelligibility
Integrated high power transformer with bypass
16 ohm for low impedance daisy chaining
Designed to mount vertically and horizontally
Coaxial drivers for optimal off axis performance
4-pin Euroblock connectors
Corrosion resistant Aluminum grille and U-bracket

Specifications

Description 4 2-way surface-mount, U-bracket
Response (f3) 75 Hz -20 kHz
Response (f10) 60 Hz -20 kHz
Impedance 16 ohm
Sensitivity (2.83 V/1 m) 84 dB
Sensitivity (1 W/1 m) 87 dB
Power handling 20 W
Maximum SPL 100 dB
Average coverage angle (2 kHz -10 kHz) 120
Transformer taps (100 V) 20,10, 5, 2.5, 1.3W
Transformer taps (70 V) 20,10, 5, 2.5, 1.3 W
Transformer taps (25 V) 20,10, 5, 2.5, 1.3 W
Tweeter 0.75 inch silk dome with phase plug
Woofer 4 inch polypropylene with rubber surround
Acoustic description Musical, with high intelligibility. A high efficiency speaker optimised for music and paging
Input Euroblock
Included accessories U bracket, male Euroblock, rubber port plug
Optional accessories n/a
Available colours Black, white
Packaging 1 per box
Dimensions 266.5mm x 187.0mm x 161.0mm.
Net weight/Gross weight 2.5 kg (5.5 lb) / 3.2 kg (7 lb)
Bracket mounting hole spacing 143.5 mm / 5.65 in
Conformance UL1480 / 2043 planned, RoHS, CE approved, IP55
