Cloud MX190 1U Mixer with 6 Line/Mic Inputs

Cloud MX190 1U Mixer with 6 Line/Mic Inputs Features

- 6x Mic/Line Level Inputs (Euro/RCA)
- 3x Dedicated Line Inputs
- 1x Slave FOH or AUX Input (Stereo TRS or 3.5mm Stereo Jack)
- 1x Dedicated Mic Input w/VOX Feature (Euro Con)
- Headphone Pre-Fade Monitor Jack
- Stereo REC Output (RCA)
- Stereo Balanced Output (Euro Con)
- Emergency Line Level Input
- Music Mute Contact (NO only)

Cloud MX190 1U Mixer with 6 Line/Mic Inputs Specifications

Inputs:
- Mic inputs (Chs 1-6): Balanced, 40 dB gain: Combo XLR/¼-inch TRS jacks; 48 V phantom power selectable per input
- Line inputs (Chs 1-6): Balanced, 0 dB gain: Combo XLR/¼-inch TRS jacks
- Line inputs (Chs 7-9): Stereo unbalanced, 0 dB gain: phono/RCA (rear panel) or 3.5 mm TRS jack (front panel)

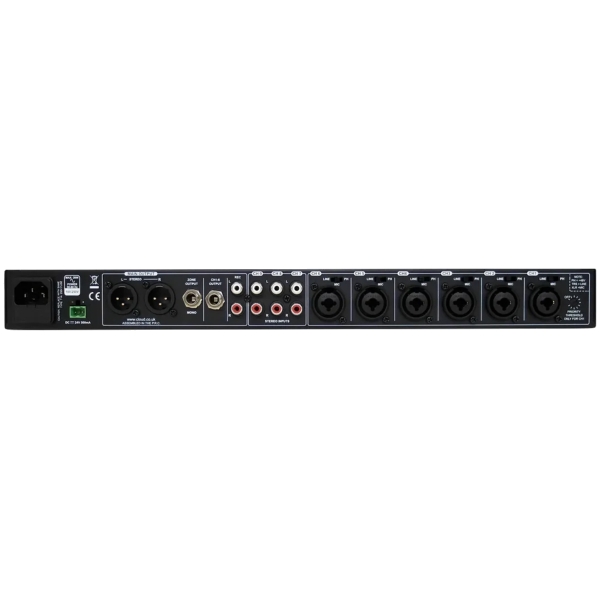

Outputs:
- Main output: Stereo, balanced, max. output level +10 dBu: 2x XLR3M
- Zone Output: Mono, balanced, max. output level +10 dBu: ¼-inch TRS jack
- CH1-6 Output: Mono, balanced, max. output level +10 dBu: ¼-inch TRS jack
- Record Out: Stereo, unbalanced, 0 dBu typical: 2x phono/RCA

Chs 1 - 6 equalisation:
- LF: +/-12 dB @ 60 Hz
- HF: +/-12 dB @ 12 kHz

Main output equalisation:
- LF: +/-10 dB @ 50 Hz
- HF: +/-10 dB @ 10 kHz

Performance:
- Signal-to-noise ratio: >85 dB (line inputs)
- Crosstalk: >75 dB (line inputs)
- THD: <0.06% (output <+10 dBu)
- Frequency response: 20 Hz to 22 kHz, ±3 dB
- Channel balance: <3 dB

General:
- Power input: 100 - 250 VAC @ 50/60 Hz, or 24 V DC
- Power consumption: 9.5 W max.
- Fuse details: T1A 250V, 20 x 5 mm
- Dimensions: 483 mm x 44.5 mm (1U) x 169.5 mm
- Weight: 2.30 kg
