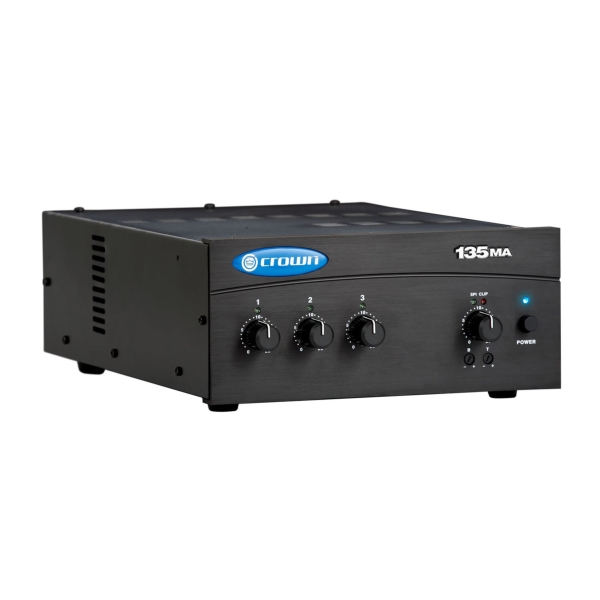

Crown 135MA 3-Input Commercial Mixer-Amplifier, 35W @ 8 Ohms or 70V / 100V Line

Crown 135MA 3-Input Commercial Mixer-Amplifier Features

- 3 inputs (each with a volume control), and one 35W amplifier output channel in 135MA
- Ideal for paging, background music, and music-on-hold

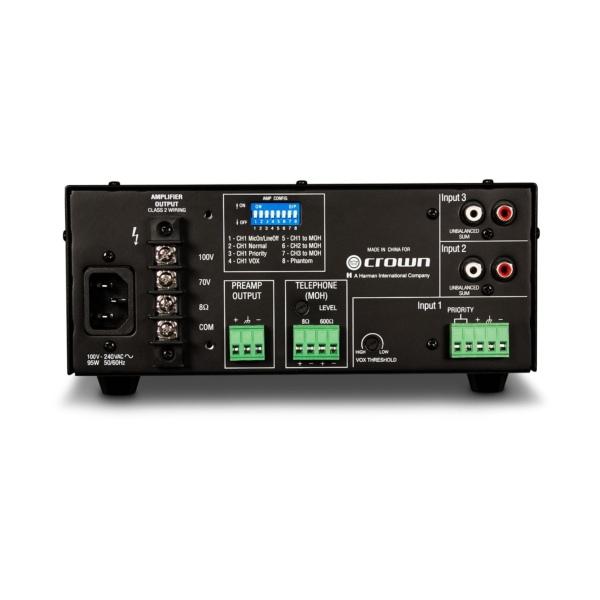

- Balanced Phoenix-type mic/line input, telephone output, dual RCA stereo music inputs, screw-terminal speaker outputs
- Priority muting by VOX or external switch
- Bass and Treble controls on master output
- Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications

Crown 135MA 3-Input Commercial Mixer-Amplifier Specifications

- Frequency Response: (at 1 watt from line out): 50 Hz to 20 kHz +/-1 dB, 19 Hz to 34 kHz - 3 dB
- Signal to Noise Ratio: (ref. to rated power, master volume at minimum):
  - Mic: > 58 dB
  - Line: > 60 dB
  - Telephone: > 60dB
  - Inputs 2 or 3: > 78 dB
- THD+Noise: < 0.5% at rated power at 1 kHz, < 0.1% at 5W at 1 kHz
- Input Sensitivity: (for full output at miximum gain):
  - Input 1: Mic 3mV, Line 800 mV
  - Input 2: 400mV
  - Input 3: 400mV
- Input Impedance (nominal):
  - Mic: 2.2 kilohms
  - Line: 10 kilohms
  - RCA: 10 kilohms
- Crosstalk: -82 dB at 1 kHz (Ch. 1 line inpute 0.8V, Ch. 1 volume at minimum, other channel volumes at maximum)
- Line Output Level (nominal): 1V into 10 kilohms
- Phantom Power: 15 VDC
- AC Line Voltages Available: Universal Power Supply. Line voltage tolerance +15%, -20%
- Operating Temperature/Humidity: 0 degrees C to 40 degrees C at 95% relative humidity (non-condensing)
- Storage Temperature: -20 degrees C to 85 degrees C
- IEC Power Connector: 15A
- Dimensions (W x H x D): 241 x 89 x 352 mm
- Weight: 3.7 kg

Further Product Information Below

Crown 135MA Manual (PDF)

Crown 135MA Data Sheet (PDF)
