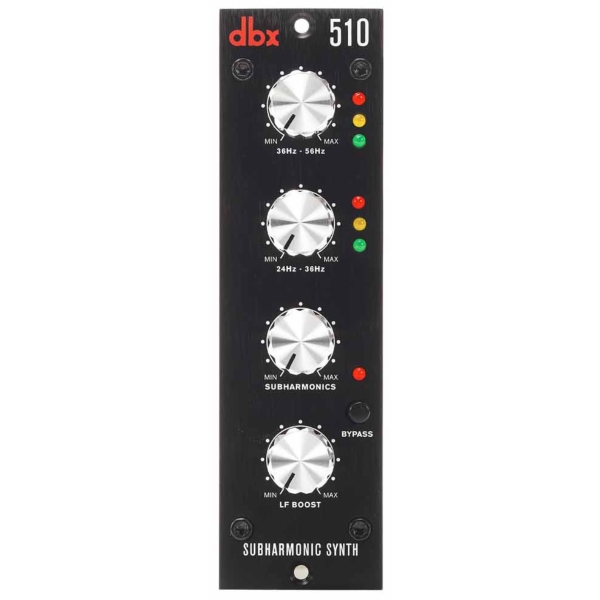

DBX 500 Series - 510 Subharmonic Synthesizer

DBX 500 Series - 510 Subharmonic Synthesizer

DBX 500 Series - 510 Subharmonic Synthesizer

Price Each 136.32 Exc VAT or (163.58 Inc VAT at 20%)

.

Ref: JP65271

<Back

Click Here For PDF User Manual

DBX 510 Subharmonic Synthesizer answers the call of audio professionals everywhere delivering Subharmonic Synthesis in the convenient design of a 500 Series module. The 510s two separate bands of subharmonic synthesis provide the best combination of smoothness and control, while the independent Low Frequency Boost circuit is designed to get the most out of high-performance, low frequency speaker systems. Unlike other attempts at bass synthesis, the dbx process produces musical low frequencies that dont interfere with mid and high-band information, even when the maximum synthesis and boost are applied. The result is a low-end punch that people really feel.

Features

Based on dbx's fabled Subharmonic Synthesizer processors
Simple, intuitive interface
Synthesized frequency level indicator LEDs
Individual controls for two ranges of subharmonic frequencies
Subharmonics level control
Synthesis Bypass switch

Specifications

Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance 20 k O balanced, 10 k O unbalanced
Max Input Level +22 dBu
CMRR >40 dB; typically >55 dB at 1 kHz
Output Type Electronically balanced/unbalanced, RF filtered
Output Impedance Balanced 30O , unbalanced 15O
Max Output Level +22 dBu
Frequency Response 20Hz 20kHz, + 0/-0.5dB; 14 Hz 120 kHz, +0/-3 dB
Noise <-99 dBu, Unweighted (22 Hz 22 kHz)
THD+Noise <0.003% typical from 22 Hz 22 kHz at 0 dBu
Dynamic Range >120 dB
Synthesis Frequency Range 26-56 Hz (from 54-110 Hz input signal)
Power Requirements +/- 16V DC
Power Current Draw 85 mA per power rail
Power Draw 2.7 watts
Rack System Compatibility 500 Series Compatible Power-frame
Rack Space 1 Slot
Dimensions (H x W x D) 5.25 x 1.5 x 6 (13.34 cm x 3.81 cm x 15.24 cm)
Weight 1.3 lbs (0.59 kg)
Shipping Weight 1.7 lbs (0.77 kg)
