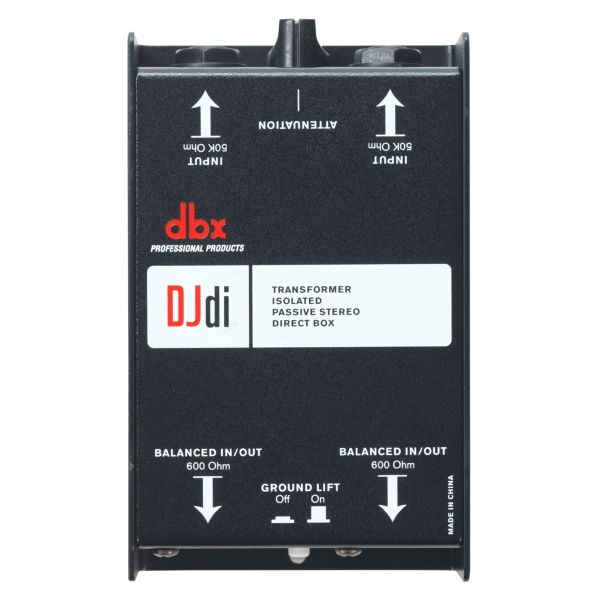

DBX DJDI 2-channel Passive Direct Box

DBX DJDI 2-channel Passive Direct Box

DBX DJDI 2-channel Passive Direct Box

Price Each 37.41 Exc VAT or (44.89 Inc VAT at 20%)

.

Ref: JP65277

<Back

Click Here For PDF User Manual

DBX DJDI 2-channel Passive Direct Box is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncoloured operation with no power required.

Features

Dual Channel
(2) 1/4 50k Ohm TS Inputs
(2) XLR Transformer-Isolated 600 Ohm Input/Outputs
Passive Circuit Design
Continuously Variable Input Attenuator
Ground Lift Switch

Specifications

Circuit Passive
Inputs 2
Input Connectors 1/4 TS (Tip Hot, Sleeve Ground)
Input Type Unbalanced, RF Filtered
Input Impedance 50 kOhm
Outputs 2
Output Connectors Male XLR, Balanced, Pin 2 hot
Output Impedance 600 Ohms
Noise Level -104dBu (22Hz -22kHz, Input Shorted)
THD+N (10Hz-22kHz) 0.23% typical @ +4dBu @ 1kHz
Insertion Loss 21dB typical
