Ecler CA40 Micro Amplifier with RS-232 - 2x 20W @ 4 Ohms

Ecler CA40 Micro Amplifier with RS-232 Features

- 1 balanced MIC input, with Phantom power and high-class preamp, including noise gate and talkover function over the rest of inputs
- 2 unbalanced LINE inputs
- 2-band tone control (Bass, Treble) independent, for the MIC and LINE busses
- 2 x 20 WRMS @ 4Ω amplifier with STEREO, PARALLEL and BRIDGE output modes
- AUX output for external link to other devices or amplifiers
- Digital local control, encoder type
- Infrared remote control included
- Remote control compatible with WpaVOL and WpaVOL-SR wall panels (0-10 VDC)
- RS-232 control port compatible with EclerCOMM software and CA-NET protocol
- MUTE port for external muting of the unit when an evacuation system must be activated
- Presets / sources management via RS-232 or 0-10 VDC remote control port
- AUTO STANDBY function
- Light and silent (fanless) designd

Ecler CA40 Micro Amplifier with RS-232 Specifications

Channels:
- Number of output channels: 2 + 1 AUX
- Output connection type: Euroblock
- Output configuration: 2x 20W RMS @ 4Ω amplifier
- Number of input channels: 3

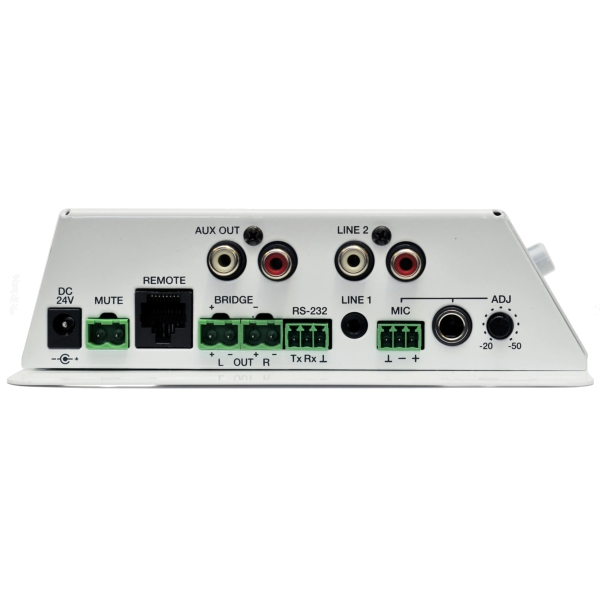

- Input connection type: MIC: balanced Euroblock or jack LINE: unbalanced minijack or double RCA
- Input configuration: 1 MIC input 2 LINE inputs

Output Power - All Channels Driven @ 1%Thd:
- Max output power
  - 8Ω STEREO: 2x 10W
  - 4Ω STEREO: 2x 18W
  - 8Ω bridge mode: 1x 36W

Signal:
- Input sensitivity: LINE: 0dBV (-6dBV internally selectable) MIC: -20 to -50dBV
- Input impedance: Line: >8kΩ Mic: >1kΩ
- Frequency response: 20Hz - 50kHz (-3dB)
- THD + Noise: SPRK OUT: < 0.15% @ 1kHz AUX OUT: < 0.02%
- SNR: LINE: >85dB MIC (BAL): >65dB
- Crosstalk: >55dB @ 1kHz
- CMRR: MICRO (BAL): >65dB @ 1kHz

Electrical:

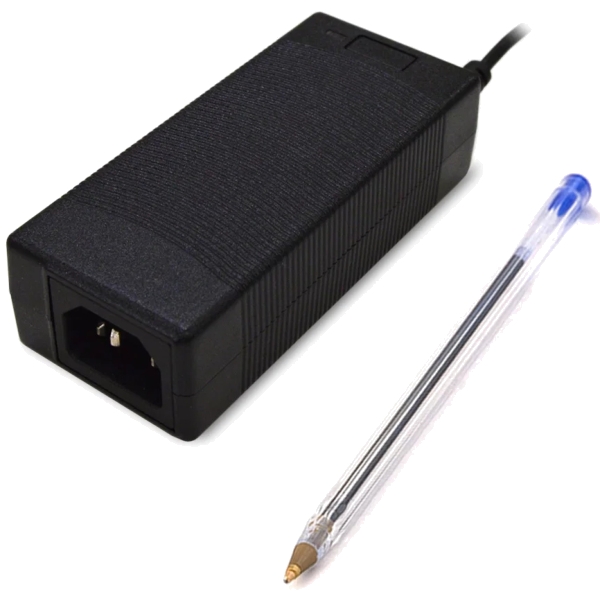

- Power supply: Universal external power source
- AC mains requirement: 100-240V @ 50-60Hz + External PSU 24VDC
- AC mains connector: DC24V power connector

Power Consumption:
- Power Consumption (1/3 POWER, @ 4Ω all channels driven): pink noise, 13W / 32VA
- Power Consumption (1/8 POWER, @ 4Ω all channels driven): pink noise, 7W / 21VA
- Power Consumption (STBY/SLEEP): <3W

Technologies:
- Energy saving: Auto standby function
- Cooling: Convection (fanless)

Protections:
- AC protection: No
- DC protection: No
- VHF protection: No
- Short-circuit protection: No
- Clip limiter: No
- Long term limiter: No
- Thermal protection: No

Remote Control Connections:
- GPIs: Volume & Input selection (0-10V. based)
- External MUTE: Power free contact (infrared remote)

Settings:
- Attenuators: Front panel knob
- Tone control: 2-band independent tone control (Bass, Treble) for the microphone in-jack and 1&2 line-in connection.

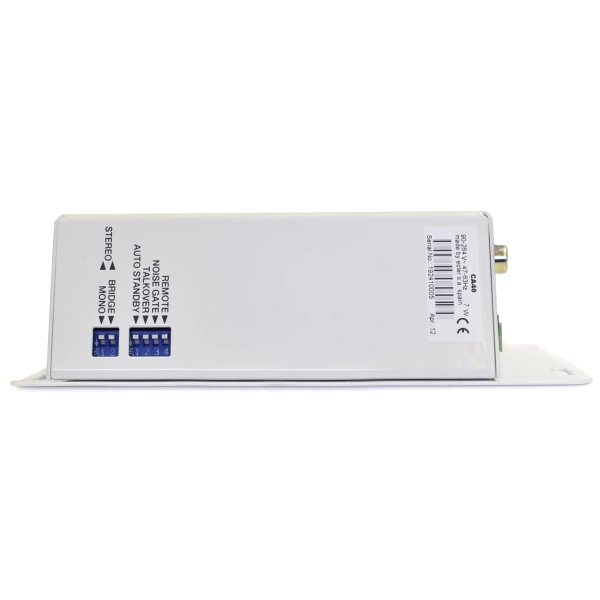

- Output settings: Stereo, parallel, and bridged mono outputs
- Auto standby function: Rear panel micro switch
- Auto standby time: 120 seconds

Connectivity:
- Serial port: RS-232
- Programing and control: EclerCOMM software or CA-NET protocol

Monitoring:

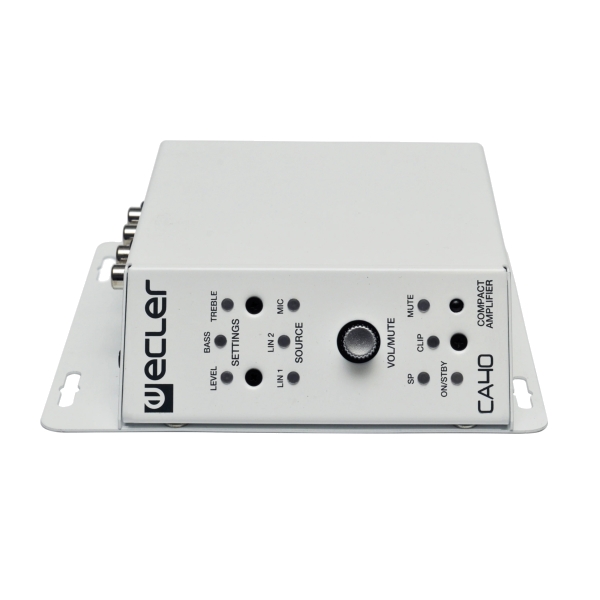

- Signal Present: SP LED (Green)
- Cliping: CLIP LED (Red)
- Standby: STBY LED (Orange)

Physical:
- Operating temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity: <90% HR
- Installation options: Wall or under a surface (table, shelf, cupboard, etc.)
- Dimensions (W x H x D): 155 x 45 x 155 mm
- Weight: 0.65 kg

Further Product Information Below

Ecler CA40 Manual (PDF)

Ecler CA40 Data Sheet (PDF)

Ecler CA40 Technical Drawing (PDF)

Ecler CA40 Micro Amplifier with RS-232 Supplied With

- 1x Ecler CCA40

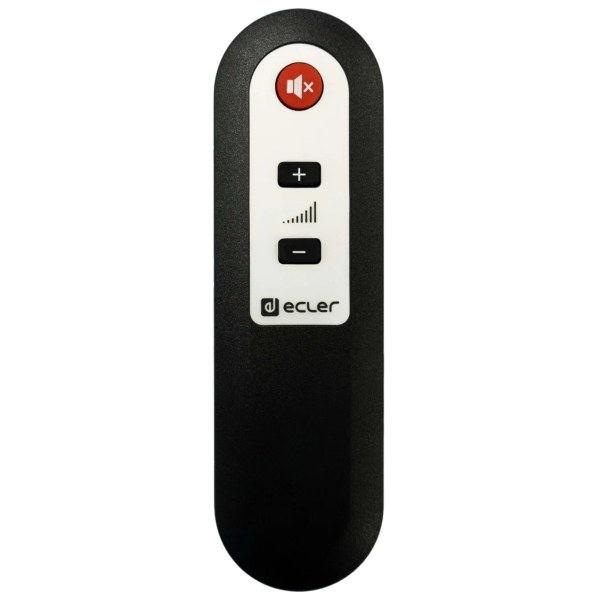

- REVO-IR remote control
