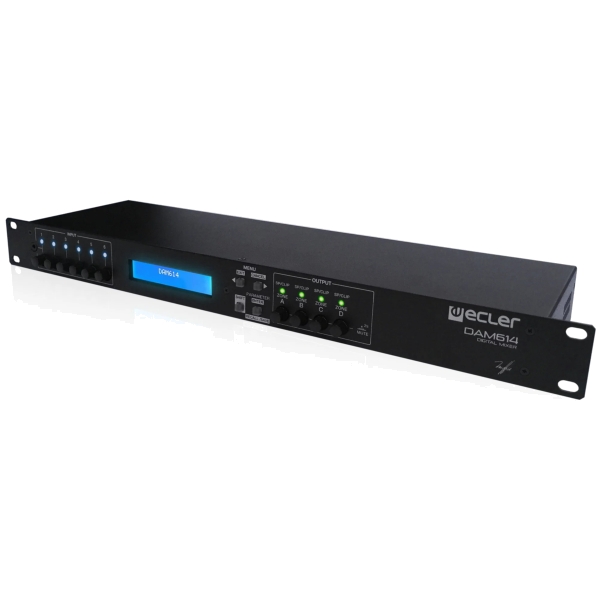

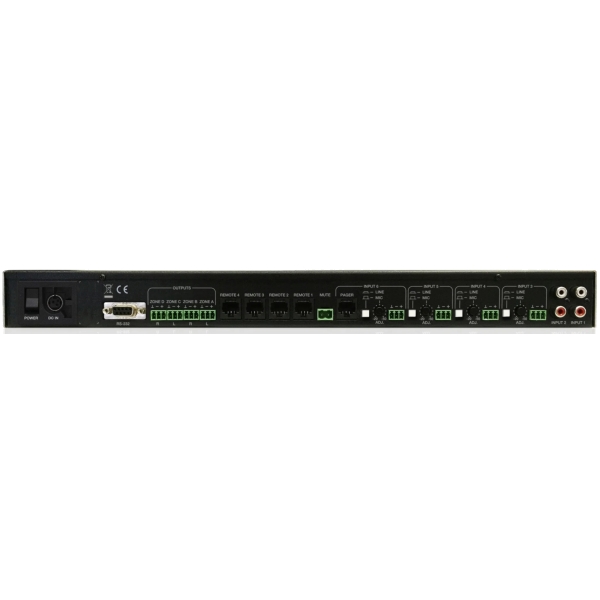

Ecler DAM614 6 Input / 4 Zone Programmable Digital Rack Mixer / Zone Controller

Ecler DAM614 Features

- DSP @ 24 bits / 48kHz
- Front panel LCD display
- 6 front panel input control digital knobs (one per input)
- 4 front panel output control digital knobs (one per output)
- 4 front panel keys, for parameters adjustment and menus navigation
- Independent level control for each input and output
- Independent mixer for each output zone
- Crossover filters available for each output
- Independent 10 band graphic EQ for each output
- Independent and adjustable High-pass filter available for MIC/LINE inputs
- 2 level priority PAGER / DUCKER function, triggered by MIC/LINE inputs
- Independent Noise Gate function for MIC/LINE inputs
- Independent Feedback Suppressor Function for MIC/LINE inputs
- Adjustable delay time for 2 outputs

Ecler DAM614 Specifications

Digital Engine:
- Processor: 24 bits 48kHz

Audio Converters:
- Sampling rate: 48kHz
- Resolution: 24 bit
- Frequency response: <10Hz ~ 20kHz (+0dB / -0.5dB) Analogue Audio Input Ports:
- Number of input ports: IN1-2, LINE IN3-6, MIC/LINE
- Connection type: IN1-2: RCA female (minijack for duplicated IN1) IN3-6: Terminal block (symmetrical)
- Input sensitivity: IN1-2: 0 / -6dBV Internal jumper adjust. 0dBV factory default IN3-6: -20 / -50dBV External potentiometer adjust
- Input impedance: IN1-2: >13kΩ IN3-6: >24k electronically balanced
- THD + Noise: N/A
- CMRR: IN3-6: >55dB (20Hz ÷ 20kHz)
- Phantom power: IN3-6: +17,5 VDC (Internal jumper)

Analogue Audio Output Ports:
- Number of output ports: 4, Line
- Connection type: Terminal block (symmetrical)
- Output impedance: 300Ω electronically balanced
- Crosstalk: >90dB, 20Hz ÷ 20kHz

Connectivity:
- Serial port: RS-232
- Programing and control: EclerCOMM software or CA-NET protocol

Remote Control Connections:
- Digital remote controls: 4, RJ-45 1, MUTE control
- GPIs: x4 GPIs (0-10VDC) for volume control, x1 rear panel MUTE connector

Electrical:
- Power supply: DC supply ± 17,5 VDC
- AC mains requirement: 100-240VAC + External PSU 17.5VDC
- AC mains connector: AC socket connector (IEC)
- Power consumption: 12W

Physical:
- Operating temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity: <90% HR
- Dimensions (W x H x D): 482.6 x 44 x 120 mm
- Weight: 2.0 kg
