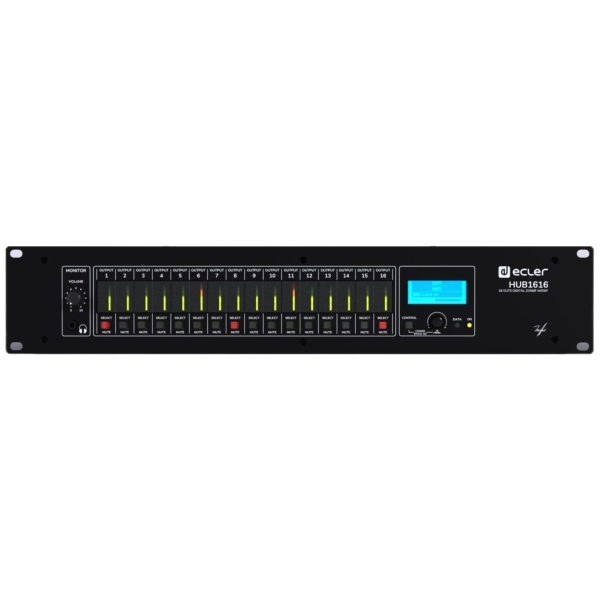

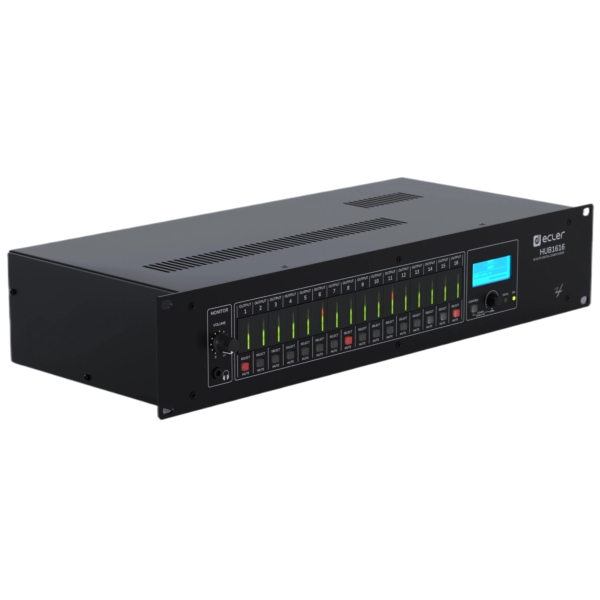

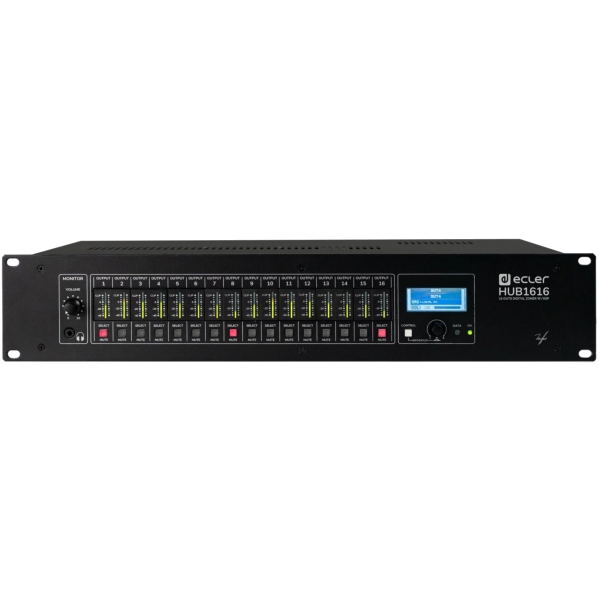

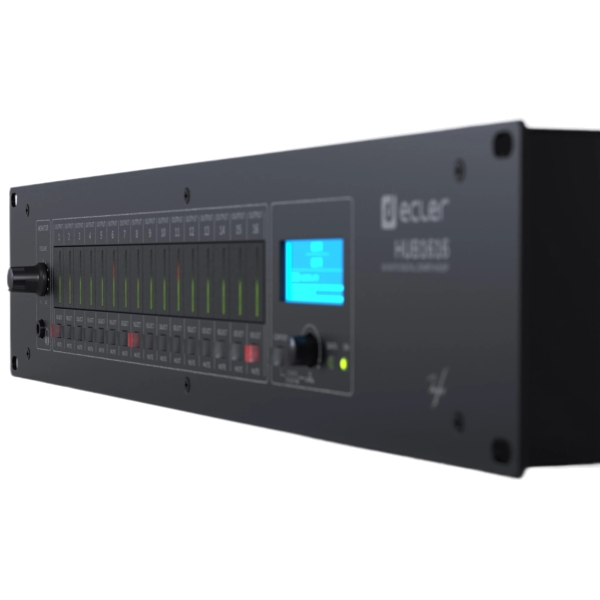

Ecler HUB1616 16x16 Digital Zoner With DSP, Remote Wall Control and Paging Compatibility

Ecler HUB1616 16x16 Digital Zoner With DSP Features

- 16 inputs, 16 outputs digital zoner with integrated DSP
- Easy programming and control by embedded web application, HANGAR, and standard web browser
- Control from the front panel and user remote control by: eMCONTROL1 wall panels (up to 8) / eMPAGE paging consoles (up to 2) / Ecler pilot application, compatible with Android and iOS:control graphic panels set to user needs (pilot panels) / TP-NET protocol (RS-232 interface with DB9 connector)for control and integrating with third party systems
- Control available, by zone (output): selection of audiosource (input), volume adjustment and MUTE, 3 band tone adjustment and general volume
- Four priority levels, ducker/pager functions
- Available DSP: frequency shifter, link stereo, delay,crossover filters, 8-band graphic EQ, compressor/limiterand much more
- Predefined setups for a quick installation (plug and play)
- MUTE port can be activated by closing the external dry contact, affecting programmed outputs to this effect

Ecler HUB1408 14x8 Digital Zoner With DSP Specifications

Digital Engine:
- Processor: Floating point 32/64bit

Audio Converters:
- Sampling rate: 48kHz
- Resolution: 24 bit, AKM
- Latency: <1.5 ms
- Frequency response: <10Hz ~ 20kHz (+0dB / -0.5dB)
- Dynamic range: AD:111dB, DA: 115dB

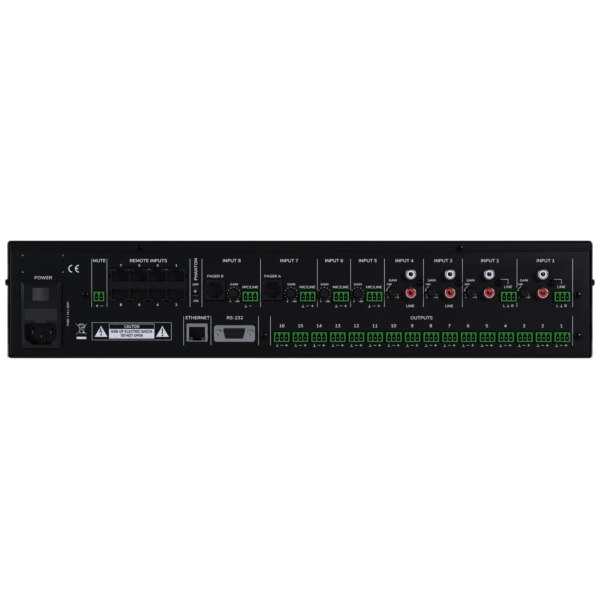

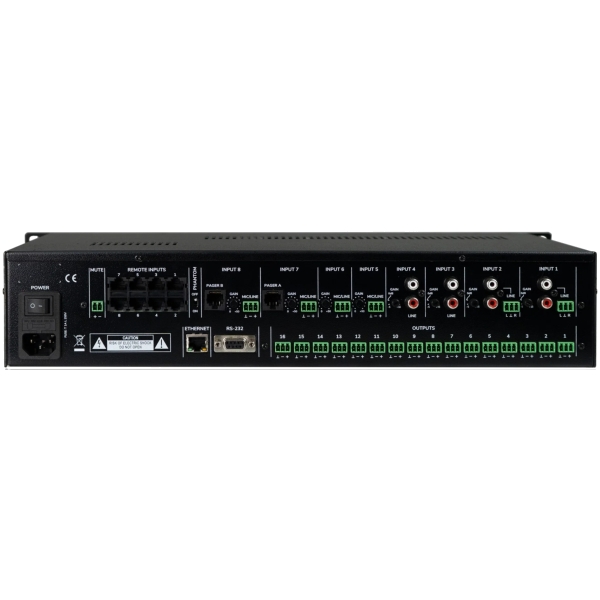

Analogue Audio Input Ports:
- Number of input ports: 4 (IN1-4), Line 4 (IN5-8), Mic/Line 8 (IN9-16), Remote
- Connection type:
  - Line: RCA female. Input 1 and 2 with Euroblock stack, Unbalanced
  - Mic/Line: Euroblock (Symmetrical), Balanced
  - Remote: RJ45 Connector, Balanced
- Input sensitivity:
  - Line: +5 / -15dBV External potentiometer adjust
  - Mic/Line: +0 / -50dBV External potentiometer adjustment
  - Remote: 0 dBV without adjustment
- Input impedance: Line: >13kΩ Mic/Line: >24kΩ electronically balanced Remote: >24kΩ electronically balanced
- Max input level: 12dBV
- THD + Noise: < 0.005% (1kHz, 1Vrms)
- CMRR: Mic/Line: >60dB (20Hz - 20kHz) Remote: >60dB (20Hz - 20kHz)
- Phantom power: Mic/Line: +48VDC (rear panel switch)

Analogue Audio Output Ports:
- Number of output ports: 16, Line
- Connection type: Euroblock, 3-pin, Balanced
- Max output level: 12dBV
- Crosstalk: >90dB, 20Hz - 20kHz

Analogue Monitor Ports:
- Headphones: From Out1 to Out16 selectable, Mini-Jack 3,5mm (>200mW - 200Ω)

Connectivity:
- Ethernet: 1, RJ-45 Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m
- Serial port: RS-232 interface with DB9 connector
- Programing and control: Hangar (embedded web application), Ecler pilot (Android/iOS application), TPNET (UDP/RS232)

Remote Control Connections:
- Digital remote controls: Remote bus, RS485
- GPIs: 1, MUTE port

Electrical:
- Secondary power supply: +12VDC, 0,6A max. (short circuit protected)
- AC mains requirement: 100-240 VAC @ 50-60Hz
- AC mains connector: C14 IEC connector
- Power consumption: 20W

Physical:
- Operating temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity: <90% HR
- Installation options: 19-inch rack format (2RU)
- Optional accessories: eMCONTROL1-type physical wall panels, eMPAGE-type paging stations, WPaMIX-T, WPaBT
- Dimensions (W x H x D): 482.6 x 88.0 x 200.0 mm
- Weight: 3.66 kg
