Ecler Player One MicroSD, Streaming And Airplay Media Player

Ecler Player One MicroSD, Streaming And Airplay Media Player Features

- Single-deck audio player
- Stereo output, RCA connectors and mini-jack
- Internet streaming receiver
- Digital sharing streams receiver (DLNA and Airplay)
- Local media player (from USB and MicroSD card slots)
- Front panel LCD display and local controls
- Programmable and controllable via front panel, embedded web app and Ecler Gallery
- Calendar events trigger, synchronization of contents hosted in the cloud (Cloud Disk Sync) and execution of "scripts" (files of instructions written by the user, Lua language - www.lua.org).
- Compatible with the JSON protocol

Ecler Player One MicroSD, Streaming And Airplay Media Player Specifications

Digital Engine:
- Processor: MIPS Single Core 64bits 580MHz

Audio Converters:
- Sampling rate: 48kHz
- Resolution: 16 bit
- Bit rate: 32 ~ 320 kbps
- Frequency response: 5Hz - 24kHz (-3dB)

Media Player:
- Audio sources: Local storage (USB & microSD), Internet radio, AirPlay, DLNA
- Compatible file formats: mp3, ogg, WAV, FLAC, AIFF
- Compatible playlist formats: m3u, pls
- Dynamic range: From -80dB to 0dB
- THD + Noise: < 0.008% (1kHz, 1Vrms)

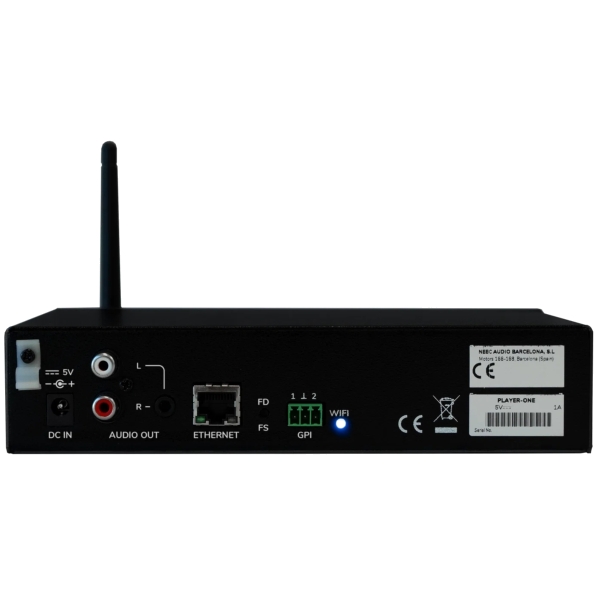

Analogue Audio Outputs:
- Number of outputs: 2x Stereo output (unbalanced)
- Connection type: RCA stereo, minijack 3.5mm
- Max output level: 6dBV / 5kΩ
- Output impedance: 460Ω

Connectivity:
- Ethernet: 1 RJ45 connector 10/100Mbps
- Wi-Fi: 2.4GHz Wi-Fi, 802.11 b/g/n
- Programing and control: Web Application, RePLAYER & Ecler Gallery. Third party integration: JSON

Remote Control Connections:
- GPIs: 2 ports, Dry contact to ground, 3 pin Terminal block

Real-Time Clock:
- Retention time: 240 hours aprox.
- Accuracy: ±1 minute / month

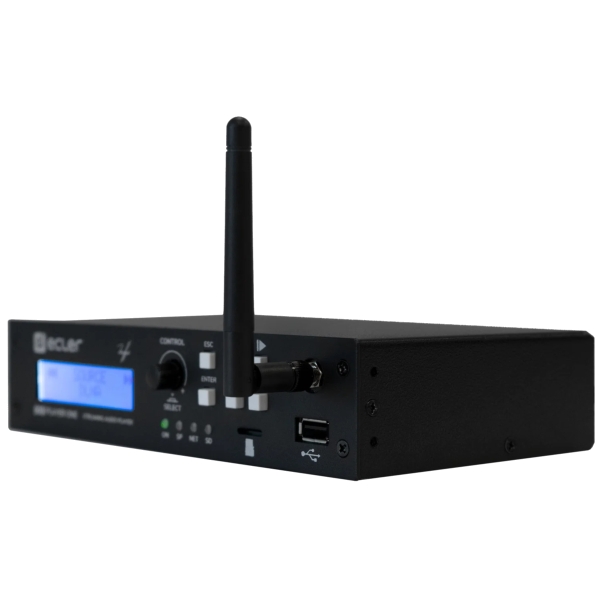

Front Panel Monitoring And Control:
- Display: LCD Alphanumeric 2x 16 cells
- LED indicators: Front panel: NET, SP, SD, Power Rear panel: Wifi
- Front Panel Buttons:
  - Encoder
  - Enter
  - Esc
  - Play/Pause
  - Next
  - Prev
  - Stop
- Rear Panel Buttons: Factoty Defaults / Fail Safe (pin-hole)

Local Storage:
- Micro SD: Supports micro SD SDXC
- USB: Support USB 2.0 High Speed (480 Mbps)
- Capacity: Up to 2TB
- File system: Supports FAT16, FAT 32, VFAT and NTFS (read-only) Multi-partition up to 1
- Playable audio files: mp3, ogg, WAV, FLAC, AIFF, m3u, pls
- Files analysis: 65354 playable folders 65354 playable folders within each folder 65354 playable files within each folder
- Folder hierarchy: Up to 8 containing the root directory
- Sorting: UNICODE Up to 100 folders, 100 files by folder (Folders/files over 100 sorted in the FAT order)

Electrical:
- Power supply: External, universal, 5VDC (included)
- AC mains requirement: 90-264VCA @ 50-60Hz
- AC mains connector: International AC plugs set
- Power consumption: 6 VA / 3W
- Ventilation: Passive

Physical:
- Operating temperature: Min 0°C, +32°F Max +35°C, +95°F
- Operating humidity: < 85% HR
- Storage temperature: Min -10°C, +14°F Max +50°C, +122°F
- Storage humidity: < 90% HR
- Installation options: Desktop, rack (1/2 of 1UR)
- Dimensions (W x H x D): 198.5 x 44 x 132 mm
- Weight: 0.8 kg

Further Product Information Below

Ecler Player One Manual (PDF)

Ecler Player One Data Sheet (PDF)

Ecler Player One SF Tutorial (PDF)

Ecler Player One Technical Drawing (PDF)

Ecler Player One MicroSD, Streaming And Airplay Media Player Supplied With

- 1x Ecler CPLAYERONE
- AD/DC Power Supply
- WiFi antenna
- Adhesive rubber feet
- Rack tray screws (Rack mount kit sold seperately)
- GPI connector
- Warranty card
- Standard user guide
