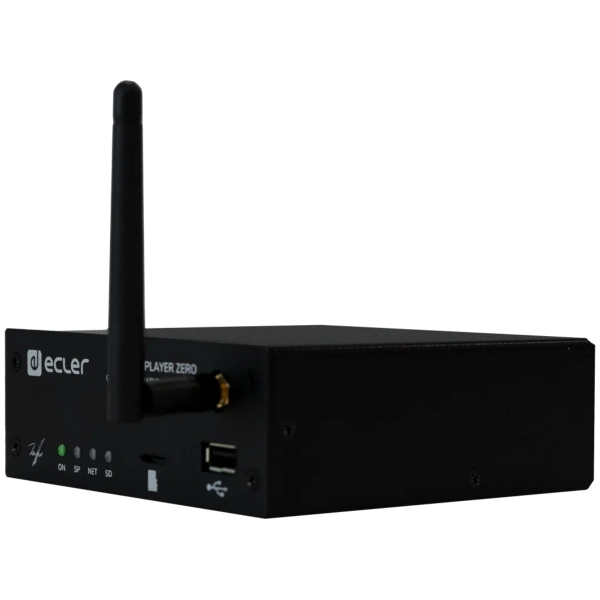

Ecler Player Zero Compact microSD And Streaming Media Player

Ecler Player Zero Compact microSD And Streaming Media Player Features

- Single-deck audio player
- Stereo output, RCA connectors and mini-jack
- Internet streaming receiver
- Digital sharing streams receiver (DLNA and Airplay)
- Local media player (from USB and MicroSD card slots)
- Programmable and controllable via embedded web app and Ecler Gallery
- Calendar events trigger, synchronization of contents hosted in the cloud (Cloud Disk Sync) and execution of "scripts" (files of instructions written by the user, Lua language - www.lua.org).
- Compatible with the JSON protocol

Ecler Player Zero Compact microSD And Streaming Media Player Specifications

Digital Engine:
- Processor: MIPS Single Core 64bits 580MHz

Audio Converters:
- Sampling rate: 48kHz
- Resolution: 16 bit
- Bit rate: 32~320kbps
- Frequency response: 5Hz - 24kHz (-3dB)

Media Player:
- Audio sources: Local storage (USB & microSD), Internet radio, AirPlay, DLNA
- Compatible file formats: mp3, ogg, WAV, FLAC, AIFF
- Compatible playlist formats: m3u, pls
- Dynamic range: From -80dB to 0dB
- THD + Noise: < 0.008% (1kHz, 1Vrms)

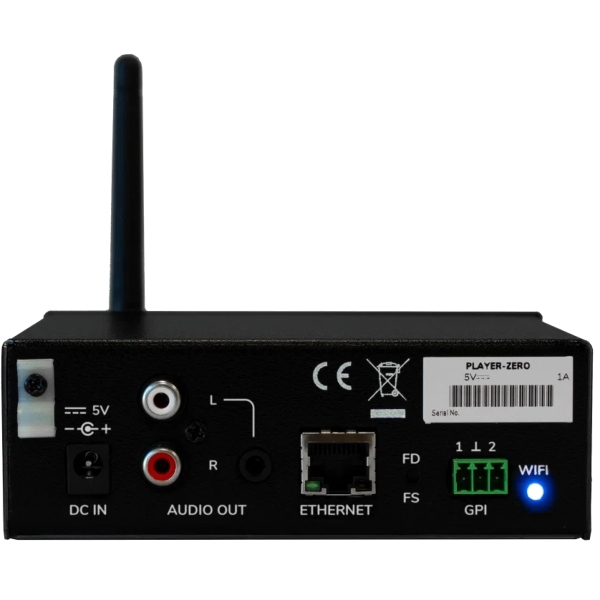

Analogue Audio Outputs:
- Number of outputs: 2 x Stereo output (unbalanced)
- Connection type: RCA stereo, minijack 3,5mm
- Max output level: 6dBV / 5kΩ
- Output impedance: 460Ω

Connectivity:
- Ethernet: 1 RJ45 connector 10/100Mbps
- Wi-Fi: 2.4GHz Wi-Fi, 802.11 b/g/n
- Programing and control: Web Application, RePLayer & Gallery. Third party integration: JSON

Remote Control Connections:
- GPIs: 2 ports, Dry contact to ground, 3 pin Terminal block

Real-Time Clock:
- Retention time: 240 hours aprox.
- Accuracy: ±1 minute / month

Front Panel Monitoring And Control:
- Display: No
- LED indicators: Front panel: NET, SP, SD, Power Rear panel: Wifi
- Buttons: Rear panel: Factoty Defaults / Failse Safe (pin-hole)

Local Storage:
- Micro SD: Supports micro SD SDXC
- USB: Support USB 2.0 High Speed (480 Mbps)
- Capacity: Up to 2TB
- File system: Supports FAT16, FAT 32, VFAT and NTFS (read-only) Multi-partition up to 1
- Playable audio files: mp3, ogg, WAV, FLAC, AIFF, m3u, pls
- Files analysis: 65354 playable folders 65354 playable folders within each folder 65354 playable files within each folder
- Folder hierarchy: Up to 8 containing the root directory
- Sorting: UNICODE Up to 100 folders, 100 files by folder (Folders/files over 100 sorted in the FAT order)

Electrical:
- Power supply: External, universal, 5VDC (included)
- AC mains requirement: 90-264VCA @ 50-60Hz
- AC mains connector: International AC plugs set
- Power consumption: 4.5 VA / 2.2W
- Ventilation: Passive

Physical:
- Operating temperature: Min 0°C, +32°F Max +35°C, +95°F
- Operating humidity: < 85% HR
- Storage temperature: Min -10°C, +14°F Max +50°C, +122°F
- Storage humidity: ≤ 90% HR
- Installation options: Desktop, rack (1/3 of 1UR)
- Dimensions (W x H x D): 126.5 x 44 x 132 mm
- Weight: 0.6 Kg

Further Product Information Below

Ecler Player Zero Manual (PDF)

Ecler Player Zero Data Sheet (PDF)

Ecler Player Zero SF Tutorial (PDF)

Ecler Player Zero Compact microSD And Streaming Media Player Supplied With

- 1x Ecler CPLAYERZERO
- AD/DC Power Supply
- WiFi antenna
- Adhesive rubber feet
- Rack tray screws (Rack Mount Kit sold seperately)
- GPI connector
- Warranty card
- Standard user guide
