Ecler SAMI-603 6-Channel (Mic/Line) 3-Output Rack Mixer

Ecler SAMI-603 6-Channel (Mic/Line) 3-Output Rack Mixer Features

- 6 input channels, 3 outputs 19" installation mixer
- 4 MIC/LINE stereo inputs
- 1 LINE stereo input
- 1 MIC input
- 1 stereo output or 2 x mono output (A and B outputs)
- 1 mono output (C output)
- Independent inputs routing for zones A, B, C
- 1 AUX/REC output
- Independent 3-band EQ control for outputs A/B and output C
- MUTE remote control input enabled by external dry contact closure for connecting fire detection systems and other safety devices.
- Switchable talkover function, from IN1 to IN5 over A, B, C outputs

Ecler SAMI-603 6-Channel (Mic/Line) 3-Output Rack Mixer Specifications

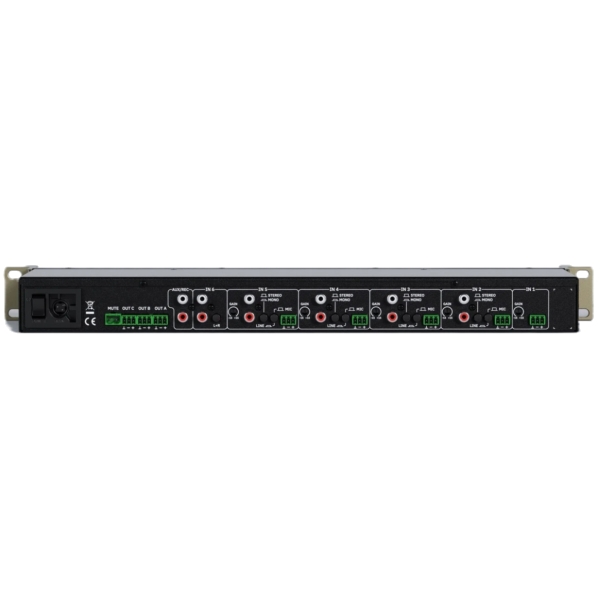

Analogue Audio Input Ports:
- Number of input ports: 4, MIC/LINE 1, MIC 1, LINE STEREO
- Connection type: MIC: 3-pin Euroblock LINE: RCA
- Input sensitivity: LINE 2-5: 0dB LINE 6: 0dB/-6dB (internally selectable) MIC 1-5 BAL: -35dB
- Input sensitivity adjust: MIC/LINE: ±15dB
- Input impedance: LINE 2-5: 50kΩ LINE 6: 50kΩ MIC 1-5 BAL: >1kΩ
- CMRR: MIC: >60dB @ 1kHz
- Phantom voltage: +18VDC

Analogue Audio Output Ports:
- Number of output ports: 1 main mix output 1 main mono output 1 AUX/REC output
- Connection type: Main: 3-pin Euroblock AUX/REC: RCA
- Output type: 1 STEREO/2 MONO main mix output 1 MONO main mix output 1 STEREO AUX/REC
- Nominal output level: OUT: 0dB/+6dB (internally selectable) AUX/REC: 0dB/+6dB (follows MAIN OUT, when AUX OUT=POST)
- Output impedance: OUT: 600Ω AUX/REC: 10kΩ

Signal:
- Frequency response: LINE: 10Hz-50kHz -1dB MIC BAL: 10Hz-30kHz -1dB
- THD + Noise: LINE: <0.005% MIC BAL: <0.04%
- Signal noise ratio: LINE: >100dB MIC BAL: >85dB

Device Control:
- Tone Control: 2 x 3-way tone control (For section A/B and C)
- Tone Frequency Cut: BASS: 100Hz ±15dB MID: 2kHz ±15dB TREBLE: 10kHz ±15dB
- Talkover: TIME: 2 seconds EFFECT: -30dB
- Control Buttons:
  - Power ON
  - Talkover
  - LINE/MIC
  - L+R (input)
  - Gain knob
  - Volume knob
  - Output destination switches
  - STEREO (level a)/Single (level a/b), MONO/STEREO
- Status Indicators: Power ON LED, MUTE LED, SP/CLIP LEVEL LED

Remote Control Connections:
- GPIs: MUTE control port NO/NC

Electrical:
- Power supply: ±17.5VDC External PSU
- AC mains requirement: 100-240V @ 50-60Hz (External PSU: 17.5VDC)
- AC mains connector: IEC inlet connector
- Power consumption: 13.9VA / 6.3W
- Cooling: Passive

Physical:
- Operating temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity: <90% HR
- Installation options: 19-inch rack format (1RU)
- Included accessories: ±17.5VDC multi-plug PSU, EuroBlocks, Rubber Foot, Mini Jumpers
- Dimensions (W x H x D): 482.5 x 44 x 153.7 mm
- Weight: 2 kg

Further Product Information Below

Ecler SAMI 603 Manual (PDF)

Ecler SAMI 603 Data Sheet (PDF)

Ecler SAMI 603 Technical Drawing (PDF)

Ecler SAMI-603 6-Channel (Mic/Line) 3-Output Rack Mixer Supplied With

- 1x Ecler CSAMI603
- ±17.5VDC multi-plug PSU
- EuroBlocks
- Rubber Foot
- Mini Jumpers
