Ecler VEO-SPS48 4K Zero Latency 8-Way CAT6 Extender/Splitter Kit (up to 70m)

Ecler VEO-SPS48 Features

- Signal distribution and extension over a single Cat 5e or higher cable
- Support for HDMI 18Gbps 4K 60Hz 4:4:4 as specified in HDMI 2.0b
- Transmission distance for 4K/60Hz up to 35 meters, 4K/30Hz up to 50m and 1080p /60Hz up to 70m
- Stereo unbalanced audio extraction via Euroblock connectors
- Includes an HDMI Loop Out and eight RJ-45 extension outputs
- Support for HDR10, HDR10+, Dolby Vision, and HLG video signals
- Support for audio formats LPCM 2.0, LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- EDID Management
- HDCP 2.2 compliant
- IR control extension
- Support for RS-232 remote control
- PoC function for the included receivers

Ecler VEO-SPS48 Specifications

Video Perfomances:
- Video Input Connectors : 1x HDMI Type A Female, 2.0, 18Gbps

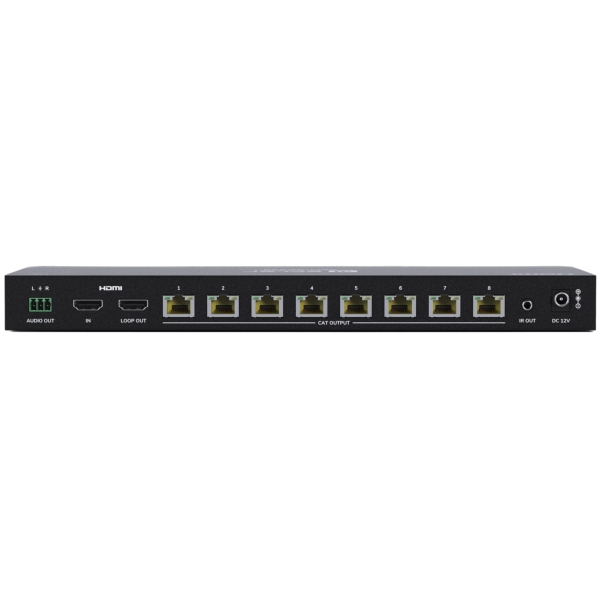

- Video Output Connectors: 1x HDMI Type A Female, 2.0, 18Gbps; 8x RJ-45 Female
- Video Input Resolutions : 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
- Video Output Resolutions: HDMI OUT on VEO-SPS4 RX & HDMI Loop Out: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Colour Depth: 8-bit (4K 60Hz 4:4:4), 10-bit / 12-bit (4K 60Hz 4:2:2 - 4:2:0)
- Colour Space: RGB, YCbCr, YUV
- HDCP: 2.2 / 1.4
- HDR: HLG,HDR 10, HDR10+,Dolby vision
- Scaling Features: No
- HDMI Distance: Up to 4K/60Hz: 5m with IN/OUT HDMI Cable Up to 1080p/60Hz, 4K/30Hz: 10m with IN/OUT HDMI Cable

Audio Performances:
- Audio Output Connectors: 1x 3-pin unbalanced Euroblock
- Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- Sample Rate: 48KHz, 96KHz, 192KHz
- Bit Depth: Up to 24-bit
- Frequency Response: 20Hz-20KHz (±3dB)

Device Control:

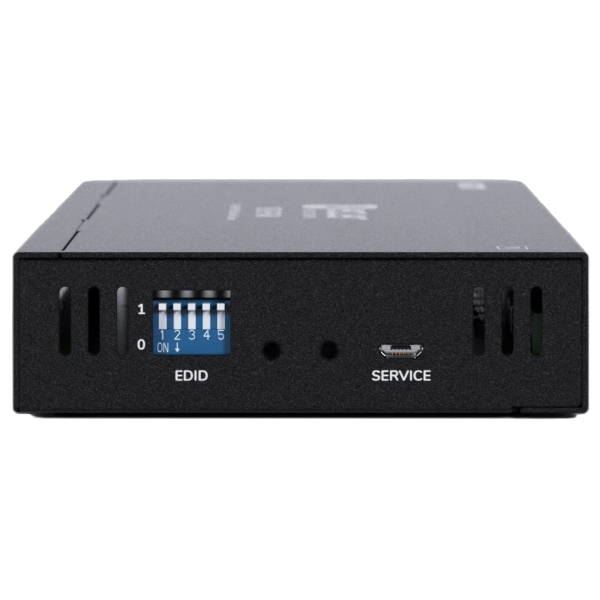

- Control Conectors: 1x Micro USB Type B, 1x DIP Switch
- Control Protocols: RS-232
- EDID Management: EDID Copy, Internal EDID Options

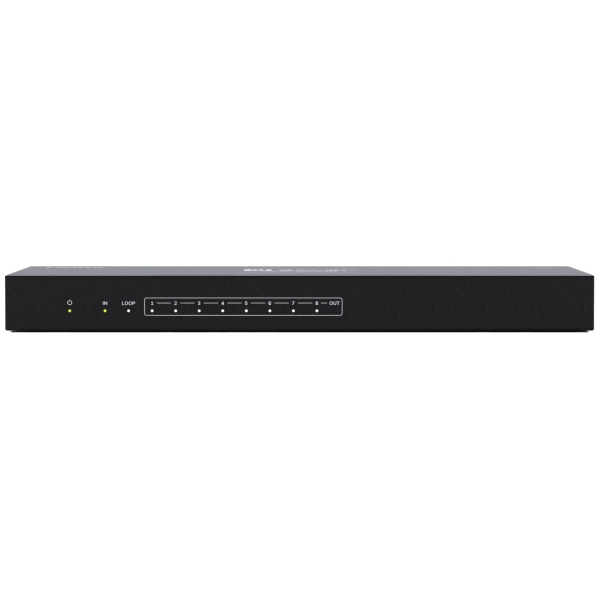

- Status Indicators: Power LED, Link Status LED

Pass-Through Control:
- Pass-through Connectors: 1x IR Jack 3.5mm
- Pass-through Protocols: IR

Connection Specification:
- HDMI extension: Point-to-Point extension with zero latency
- Transmission Distance: 4K/60Hz up to 35m with Cat 5e or higher (600Mhz) 4K/30Hz up to 50m with Cat 5e or higher (300Mhz) 1080p/60Hz up to 70m with Cat 5e or higher (148.5Mhz)

Electrical:
- Power supply: External: Input 100-240VAC 50-60Hz 0.3A, Output 12VDC-2.5A
- AC mains connector: External PSU. Included 4 region power blades (UK,US,AU,EU)
- DC mains connector: DC Locking
- Power consumption: 25.44W

Physical:
- Operating temperature: Min: 0°C ; 32°F Max: 40°C ; 104°F
- Operating humidity: 20% to 90% HR, non-condensing
- Storage temperature: Min: -20°C; -4°F Max: 60°C; 140°F
- Storage humidity: 40% to 60% HR, non-condensing
- Chassis material: Metal
- Finished colour: Black
- Dimensions (W x H x D):

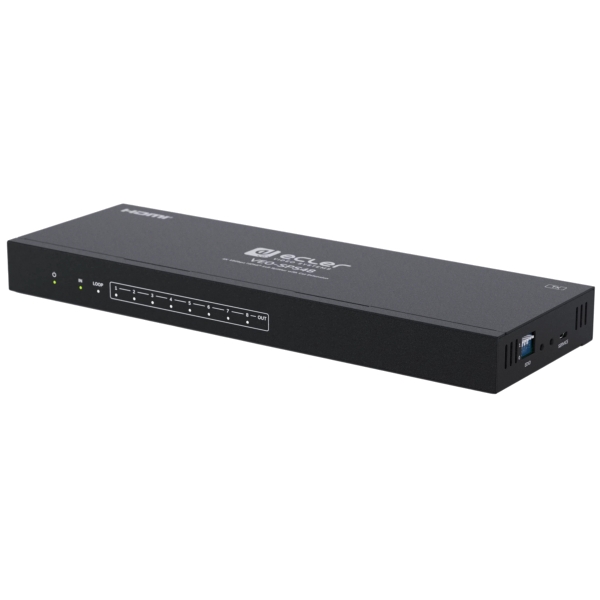

  - VEO-SPS48 (Splitter TX): 300 x 28 x 100 mm

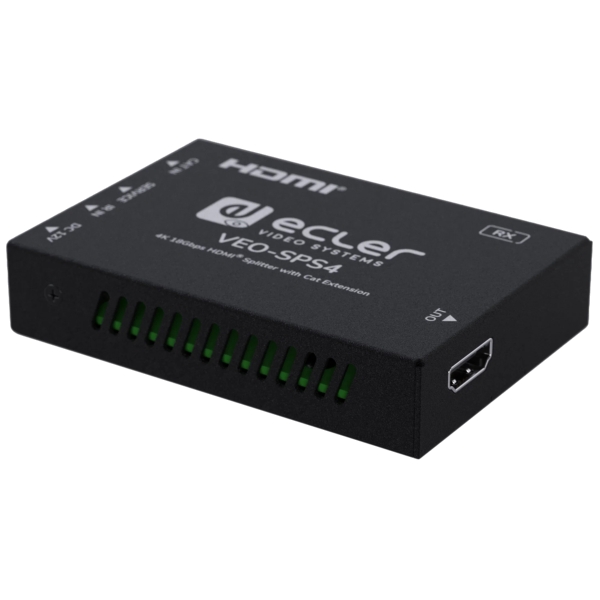

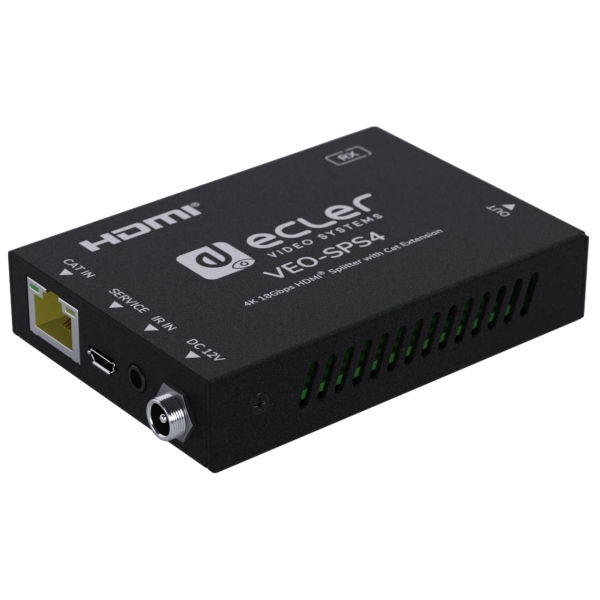

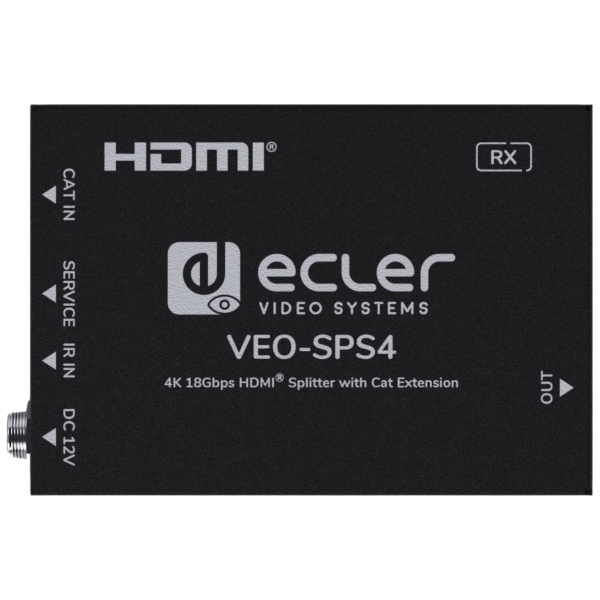

  - VEO-SPS4 (Receiver RX): 88 x 18 x 61 mm
- Weight:
  - VEO-SPS48 (Splitter TX): 0.823 Kg
  - VEO-SPS4 (Receiver RX): 0.155 Kg

Further Product Information Below

Ecler VEOSPS48 Driver Manual (PDF)

Ecler VEOSPS48 Data Sheet (PDF)

Ecler VEOSPS48 Technical Drawing (PDF)

Ecler VEO-SPS48 Supplied With

- 1x Ecler CVEOSPS48
- 8x VEO-SPS4 Receiver
- 8x IR Receiver cable (1.5 meters)
- 1x IR Blaster cable (1.5 meters)
- 1x 3-pin 3.5mm Euroblock connector
- 16x Mounting ears (Receiver)
- 2x Mounting ears (Splitter)
- 36x Mounting screw
- 1x PSU 12V/2.5A
