Ecler VEO-SWC45TH Wireless HDMI Dongle for Ecler VEO-SWC45

Name: Ecler VEO-SWC45TH Wireless HDMI Dongle for Ecler VEO-SWC45
Brand: Ecler
Price: 258.62 GBP
Availability: InStock

Price Each £215.52 (£258.62 Including VAT at 20%)

REF: JP115466

Quantity:

Ecler VEO-SWC45TH Wireless HDMI Dongle for Ecler VEO-SWC45

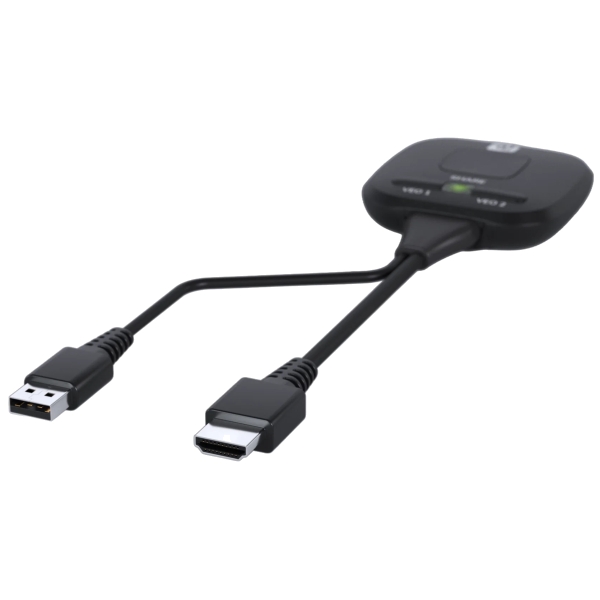

The Ecler VEOSWC45TH Wireless HDMI Dongle for Ecler VEOSWC45 is a professional 4K HDMI wireless transmitter for screen mirroring in 4K resolution from a computer or media player to the VEO SWC45 switcher. Once the device is paired with a VEO SWC45 unit, the 3 available buttons will allow the user to start and stop a given transmission. Two of the buttons are customizable.

Click Here for Printer Friendly Version

Ecler VEO-SWC45TH Features

- Pure wireless presentation experience. Bring your own device, no cable messy
- Wireless connection between laptop and room USB peripherals like camera, mic and speakers for easy video conference
- Fully compatible with mainstream VC platforms like Teams, Zoom, Webex, etc
- Wireless content input up to 4K with HDMI connector
- 2 customizable buttons

Ecler VEO-SWC45TH Specifications

Video Perfomances:
- Video Output Connectors: HDMI Type A Male, 1.4, 10.2Gbps
- Video Input Resolutions : 720p/60Hz,1080p up to 60Hz, 2K up to 60Hz, 4K UHD up to 30Hz
- Video Output Resolutions: 720p/60Hz,1080p up to 60Hz, 2K up to 60Hz, 4K UHD up to 30Hz, Latency: 1080p/60Hz: 80-120ms, 4K/30Hz: 130-170ms
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Colour Depth: 8-bit (4K 60Hz 4:4:4)
- Colour Space: RGB, YCbCr, YUV
- HDCP: 1.4
- Wireless Conferencing: Yes (Video Playback Frame Rate: 20-60fps)
- Other Features: USB HID

Audio Performances:
- Audio Formats: PCM
- Sample Rate: 44.1KHz, 48KHz
- Bit Depth: Up to 24-bit
- Frequency Response: 20Hz-20KHz (±3dB)

Device Control:
- Control Connectors: 1x USB Type A
- Control Protocols: USB 2.0
- Status Indicators: Input LED Multicolour

Network:
- Network Connectors: WIFI IEEE 802.11 a/g/n/ac/ax (Antennas MIMO 2x2, MIMO 1x1)
- Network Requirements: Compatible with 2.4 Ghz and 5GHz frequency bands, Security:AES, WPA PSK, WPA2 PSK, HTTPS
- Average Streaming Bitrate: Up to 1200Mbps
- Transmission Distance: Wireless Typical Coverage: 35m without obstacle (environment dependant)

Electrical:
- Power supply: USB power 5V
- DC mains connector: USB Type A
- Power consumption: 2.5W

Physical:
- Operating temperature: Min: -20°C ; -4°F Max: 60°C ; 140°F
- Operating humidity: 20% - 90% RH, no condensing
- Chassis material: Metal
- Finished colour: Black
- Dimensions (W x H x D): 221.2 x 15 x 65 mm
- Weight: 0.095 Kg

Further Product Information Below

Ecler VEOSWC45 Manual (PDF)

Ecler VEOSWC45TH Data Sheet (PDF)

Ecler VEOSWC45TH Technical Drawing (PDF)
