Ecler VEO-XPS43 4K Zero Latency Single CAT6 Extender Kit (up to 60m)

Name: Ecler VEO-XPS43 4K Zero Latency Single CAT6 Extender Kit (up to 60m)
Brand: Ecler
Price: 113.08 GBP
Availability: InStock

Price Each £94.23 (£113.08 Including VAT at 20%)

REF: JP115467

Quantity:

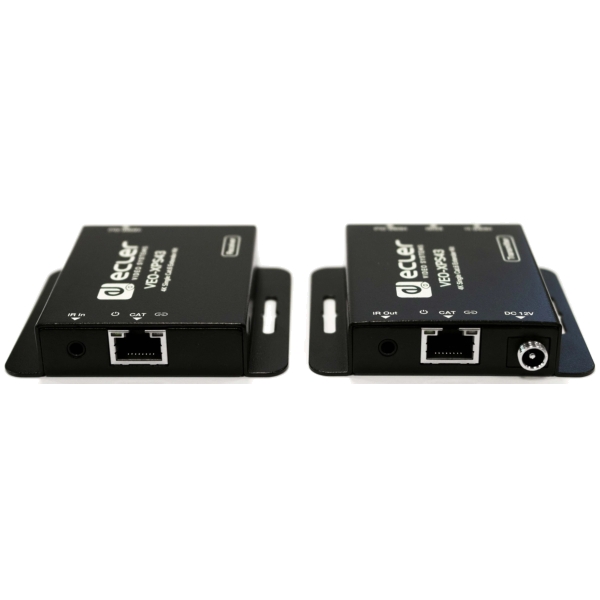

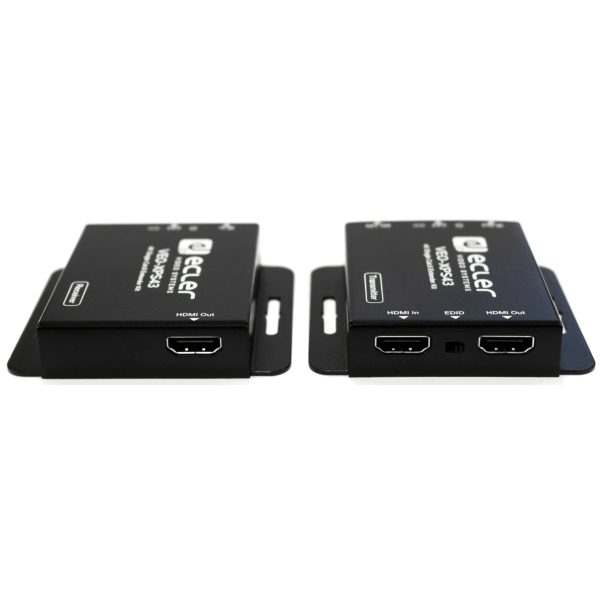

Ecler VEO-XPS43 4K Zero Latency Single CAT6 Extender Kit (up to 60m)

The Ecler VEOXPS43 4K Zero Latency Single CAT6 Extender Kit is an HDMI extender kit that allows to extend 4K/UHD video signals up to 30m of distance and Full HD signals up to 60m with zero-latency, over a single Cat. 6 cable or higher. It includes EDID management features and IR pass through making it a simple and cost effective solution for professional extension applications.

Click Here for Printer Friendly Version

Ecler VEO-XPS43 Features

- Complete HDMI extender kit for HDMI Audio Video and IR signals extension over single Cat.6 cable or higher
- Supports up to 4K @ 30Hz video resolution
- Compact design for easy and flexible installation
- Allows for cascading via additional HDMI loop out port
- Supports EDID copying from receiver display or loop out display
- Support Power over cable function (receiver is powered by transmitter)
- HDCP compliant

Ecler VEO-XPS43 Specifications

Video Perfomances:
- Video Input Connectors : HDMI Type A Female
- Video Output Connectors: HDMI Type A Female
- Video Input Resolutions : 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 30Hz
- Video Output Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 30Hz
- Chroma Subsampling: 4:4:4 / 4:2:2
- Colour Depth: 8-bit, 10-bit, 12-bit
- Colour Space: RGB, YCbCr
- HDCP: 1.4 compliant
- HDMI Distance: 10m with Ecler VEO Cables

Audio Performances:
- Audio Formats: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS 5.1, PCM;
- Sample Rate: up to 192KHz
- Bit Depth: up to 24-bit
- Frequency Response: 20Hz-20KHz (±3dB)

Device Control:
- EDID Management: EDID Switch Selector
- Status Indicators: Power ON LED Status Connection LED

Pass-Through Control:
- Pass-through Connectors: 3.5mm Minijack connector
- Pass-through Protocols: IR Pass-through

Connection Specification:
- HDMI extension: Point-to-Point extension with zero latency
- Transmission Distance: CAT6a/7 @4K up to 30m / up to 98ft CAT6a/7 @1080p up to 60m / up to 197ft

Electrical:
- Power supply: External: AC 100V ~ 240V 50/60Hz Output: DC 12V/1A
- AC mains connector: External PSU. Included 4 region power blades
- DC mains connector: DC coaxial
- Power consumption: Transmitter: 1.86W, Receiver: 0.87W

Physical:
- Operating temperature: 0 to +40°C (32 to +104°F)
- Operating humidity: 20 - 90% RH (no condensation)
- Installation options: Surface mount, VEO-RACK19
- Chassis material: Metal
- Finished colour: Black
- Dimensions (W x H x D): 79.5 x 69 x 16.5 mm
- Weight:
- TX: 0.132 kg
- RX: 0.130 kg

Further Product Information Below

Ecler VEOSWC45TH Driver Manual (PDF)

Ecler VEOSWC45TH Data Sheet (PDF)

Ecler VEO-XPS43 Supplied With

- 1x Ecler CVEOXPS43
- 1x IR Blaster unit
- 1x IR Receiver unit
- 1x 12VDC 1A International Power Supply (One PSU for both units)
