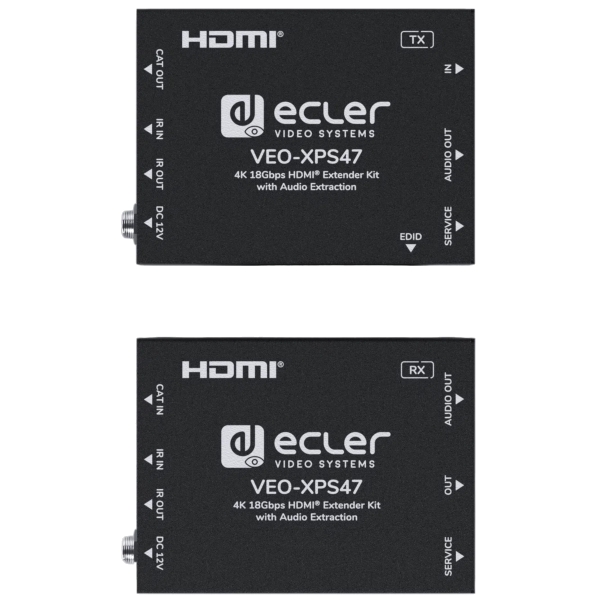

Ecler VEO-XPS47 4K Zero Latency Single CAT6 Extender Kit (up to 120m)

Ecler VEO-XPS47 Features

- Transmitter and receiver set for signal extension over a single Cat 5e or higher cable
- Support for HDMI 18Gbps 4K 60Hz 4:4:4 as specified in HDMI 2.0b
- Transmission distance for 4K/50Hz up to 70 meters and 4K/60Hz up to 30 meters
- Stereo unbalanced audio extraction via Euroblock connectors on both the transmitter and receiver
- Support for HDR10, HDR10+, Dolby Vision, and HLG
- Support for audio formats LPCM 7.1, Dolby True HD, DTS HD Master
- Bidirectional IR control extension
- EDID management
- HDCP 2.2 compliant
- Bidirectional PoC function

Ecler VEO-XPS47 Specifications

Video Perfomances:

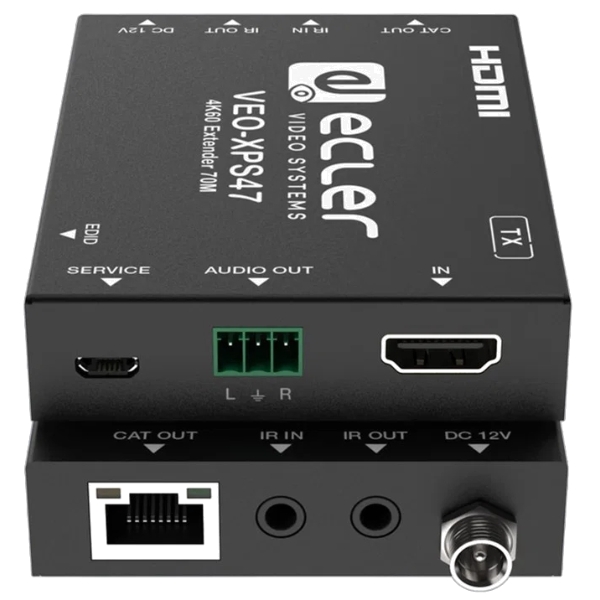

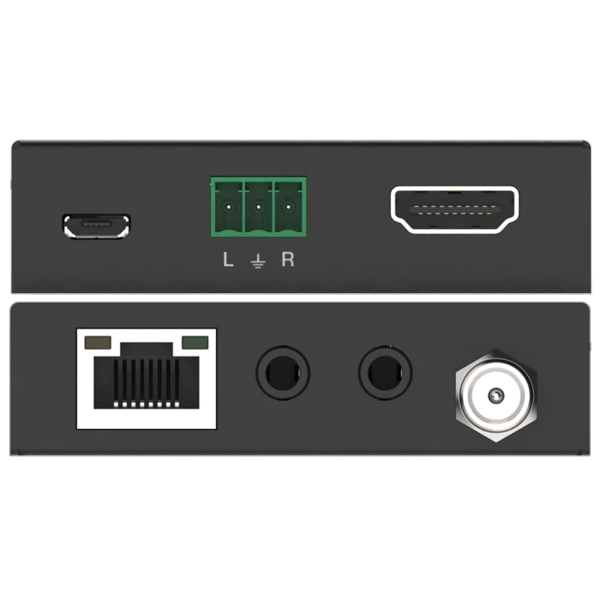

- Video Input Connectors: Transmitter: 1x HDMI Type A Female, 2.0, 18Gbps; 1x RJ-45 Female

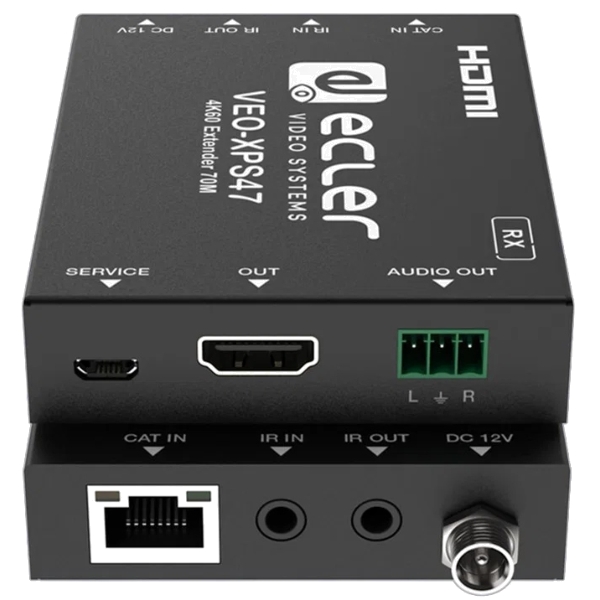

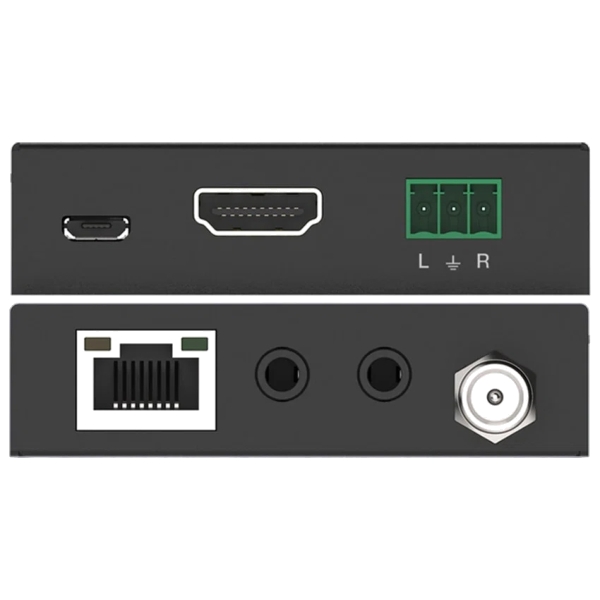

- Video Output Connectors: Receiver: 1x HDMI Type A Female, 2.0, 18Gbps; 1x RJ-45 Female
- Video Input Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
- Video Output Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
- Chroma Subsampling: 4:4:4,4:2:2,4:2:0
- Colour Depth: 8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 - 4:2:0)
- Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- HDCP: HDCP 2.2
- HDR: HDR10, HDR10+, Dolby Vision, HLG
- HDMI Distance: Up to 4K/60Hz: 5m with IN/OUT HDMI Cable Up to 1080p/60Hz: 15m with IN/OUT HDMI Cable

Audio Performances:
- Audio Output Connectors: 1x 3-pin Euroblock
- Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- Sample Rate: 48 KHz, 96 KHz, 192 KHz
- Bit Depth: Up to 24-bit
- Frequency Response: 20Hz-20KHz (±3dB)

Device Control:
- Control Connectors: 1x DIP Switch
- EDID Management: EDID Copy, EDID Setting
- Status Indicators: Link Status LEDs

Pass-Through Control:
- Pass-through Connectors: 1x Jack 3.5mm
- Pass-through Protocols: IR

Connection Specification:
- HDMI extension: Point-to-Point extension with zero latency
- Transmission Distance: 4K/50Hz up to 70m with Cat 5e or higher 4K/30Hz up to 30m with Cat 5e or higher

Electrical:
- Power supply: PoC bidirectional; External:Input 100-240VAC 50/60Hz 0.3A, Output DC 12VDC-1A
- AC mains connector: External PSU. Included 4 region power blades (UK,US,AU,EU)
- DC mains connector: DC Locking
- Power consumption: 3.36W

Physical:
- Operating temperature: Min: 0°C; 32°F Max: 40°C; 104°F
- Operating humidity: 20 - 80% RH, non-condensing
- Storage temperature: Min: -20°C ; -4°F Max: 60°C ; 140°F
- Storage humidity: 10% - 90% RH, non-condensing
- Installation options: Mounting ears for table, wall or screwed
- Chassis material: Metal
- Finished colour: Black
- Dimensions (W x H x D): Transmitter & Receiver: 90 x 18 x 68 mm
- Weight:
  - Transmitter: 0.160 Kg
  - Receiver: 0.155 Kg

Further Product Information Below

Ecler VEOXPS47 Driver Manual (PDF)

Ecler VEOXPS47 Data Sheet (PDF)

Ecler VEOXPS47 Technical Drawing (PDF)

Ecler VEO-XPS47 Supplied With

- 1x Ecler CVEOXPS47
- 1x IR Receiver cable (1.5 meters)
- 1x IR Blaster cable (1.5 meters)
- 2x 3-pin 3.5mm Euroblock connector
- 4x Mounting ears
- 8x Mounting screw
- 1x USB 2.0 Cable
- 1x PSU 12V/1A
