Ecler VEO-XPT412 4K HDBaseT Extender Kit (up to 150m)

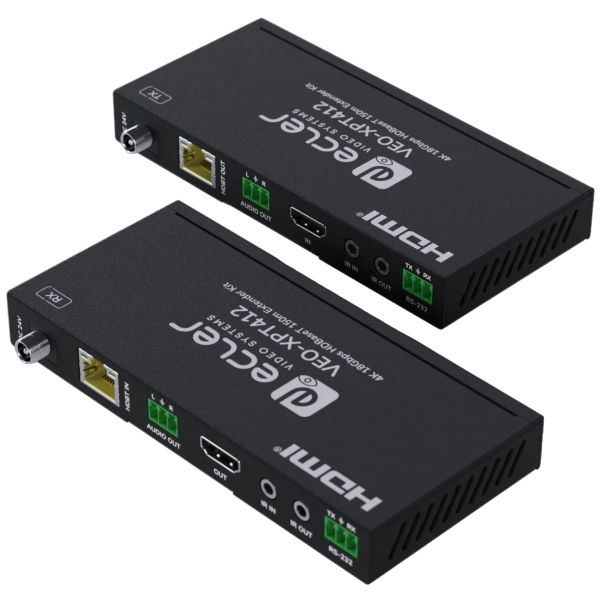

The Ecler VEOXPT412 4K HDBaseT Extender Kit is a professional HDBaseT extension kit that includes both a transmitter and a receiver. Its 18 Gbps HDMI connectors allow for the extension of 4K video signals at 60Hz 4:4:4 up to 120 meters, or 1080p signals up to 150 meters, over a single Cat 5e or higher cable.

Both the transmitter and receiver feature a stereo unbalanced output on an Euroblock connector for easy integration. Additionally, the VEO XPT412 includes a bidirectional PoH feature, enabling the transmitter to be powered by the receiver and vice versa. It also supports RS-232 and bidirectional IR extension, making it a compact, flexible, and easy-to-use solution for applications requiring AV and control signal extensions.

Click Here for Printer Friendly Version

Ecler VEO-XPT412 Features

- Transmitter and receiver set for HDBaseT signal extension over a single Cat 5e or higher cable
- Support for HDMI 18Gbps 4K 60Hz 4:4:4 (with Colour Space Conversion technology) as specified in HDMI 2.0b
- Transmission distance for 4K/60Hz up to 120 meters and 1080p/60Hz up to 150 meters
- Stereo unbalanced audio extraction via Euroblock connectors on both the transmitter and receiver
- Support for HDR10, HDR10+, Dolby Vision, and HLG video signals
- Support for audio formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- HDCP 2.2 compliant
- Bidirectional IR control extension
- Bidirectional PoH function

Ecler VEO-XPT412 Specifications

Video Perfomances:

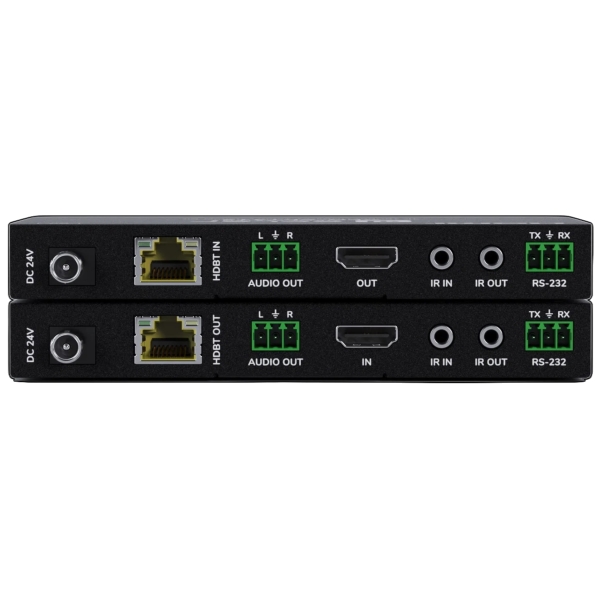

- Video Input Connectors: Transmitter: 1x HDMI Type A Female, 2.0, 18Gbps; 1x RJ-45 Female, HDBaseT 1.0
- Video Output Connectors: Receiver: 1x HDMI Type A Female, 2.0, 18Gbps; 1x RJ-45 Female, HDBaseT 1.0
- Video Input Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1920 x 1200/60Hz, 4K up to 60Hz
- Video Output Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1920 x 1200/60Hz, 4K up to 60Hz (with Colour Space Conversion Technology)
- Chroma Subsampling: 4:4:4,4:2:2,4:2:0
- Colour Depth: 8-bit (4K 60Hz 4:4:4), 10-bit / 12-bit (4K 60Hz 4:2:2 - 4:2:0)
- Colour Space: RGB, YCbCr, YUV
- HDCP: 2.2, 1.4
- HDR: HDR10, HDR 10+, Dolby Vision,HLG
- HDMI Distance: Up to 4K/60Hz: 5m with IN/OUT HDMI Cable Up to 1080p/60Hz: 10m with IN/OUT HDMI Cable

Audio Performances:
- Audio Output Connectors: 3-pin Euroblock
- Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- Sample Rate: 48KHz, 96KHz, 192KHz
- Bit Depth: Up to 24-bit
- Frequency Response: 20Hz-20KHz (±3dB)

Device Control:
- EDID Management: Pass-through

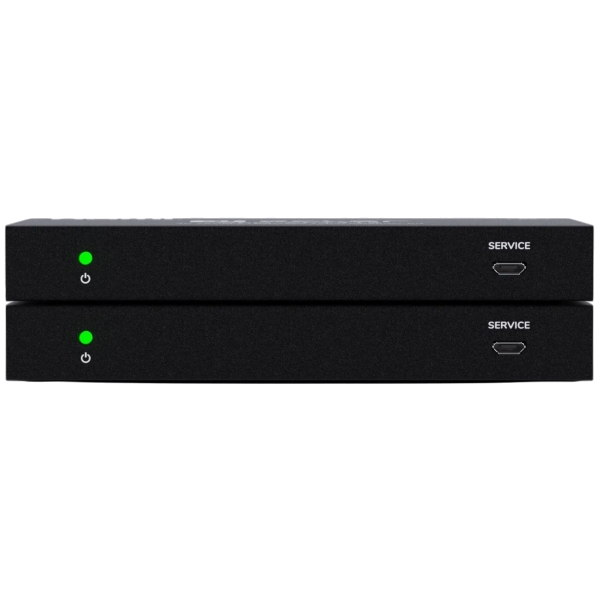

- Status Indicators: Power LED, HDBaseT status LED's

Pass-Through Control:
- Pass-through Connectors: 1x 3-pin Euroblock, 1x Jack 3.5mm, 1x HDMI
- Pass-through Protocols: RS-232, IR, CEC

Hdbaset Specification:
- HDBaseT Version: HDBaseT 1.0
- Transmission Distance: 4K/60Hz up to 120m with Cat 5e or higher 1080p/60Hz up to 150m with Cat 5e or higher

Electrical:
- Power supply: PoH; External: Input 100-240VAC @ 50/60Hz 0.6A, Output 24VDC-1A
- AC mains connector: External PSU. Included 4 region power blades (UK,US,AU,EU)
- DC mains connector: DC Locking
- Power consumption: 9.36W

Physical:
- Operating temperature: Min: 0°C; 32°F Max: 40°C; 104°F
- Operating humidity: 20% to 90% HR, non-condensing
- Storage temperature: Min: -20°C ; -4°F Max: 60°C ; 140°F
- Storage humidity: 40% to 60% HR, non-condensing
- Installation options: Mounting ears for table, wall or screwed
- Chassis material: Metal
- Finished colour: Black
- Dimensions (W x H x D): Transmitter & Receiver: 140 x 19 x 65 mm
- Weight:
- Transmitter: 0.160 Kg
- Receiver: 0.155 Kg

Further Product Information Below

Ecler VEOXPT412 Driver Manual (PDF)

Ecler VEOXPT412 Data Sheet (PDF)

Ecler VEOXPT412 Technical Drawing (PDF)

Ecler VEO-XPT412 Supplied With

- 1x Ecler CVEOXPT412
- 1x IR Receiver cable (1.5 meters)
- 1x IR Blaster cable (1.5 meters)
- 4x 3-pin 3.5mm Euroblock connector
- 4x Mounting ears
- 8x Mounting screw
- 1x PSU 24V/1A
