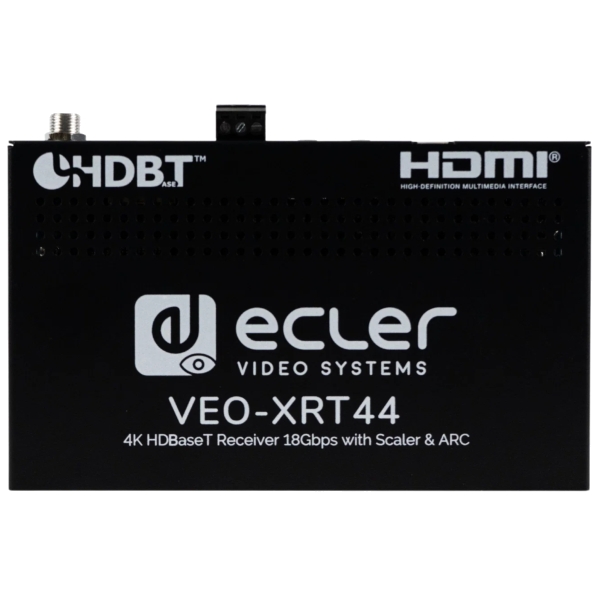

Ecler VEO-XRT44 4K HDBaseT Extender/Scaler Receiver (up to 70m)

Ecler VEO-XRT44 Features

- Supports HDMI and HDMI video resolutions up to 4K@60Hz 4:4:4 HDR
- Supports HDCP 2.2 and 1.4
- Extends 4K signals up to 40m and 1080p signals up to 70m over a single CATx cable
- Supports video resolution upscaling, allowing a 1080p input to be automatically upgraded to a 4K output
- SPDIF output on the receiver for source audio de-embedding
- 18Gbps high bandwidth
- Advanced EDID management with multiple built-in settings or customised EDID selection
- Test pattern provides a built-in 4K/1080p image for troubleshooting
- Bidirectional IR, RS-232 and 24V PoH
- Supports ARC
- Supports CEC pass-through
- LEDs indicate the current operating status
- Firmware upgrade via micro-USB port
- ESD protection

Ecler VEO-XRT44 Specifications

Video Perfomances:

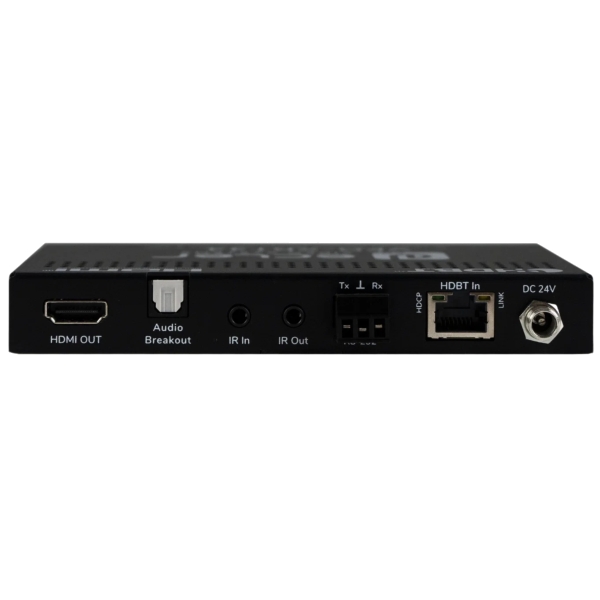

- Video Output Connectors: HDMI Type A Female, 18 Gbps
- Video Output Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Colour Depth: 8-bit, 10-bit, 12-bit, 16-bit only @4K30
- Colour Space: RGB, YCbCr
- HDCP: 2.2/1.4 Compliant
- HDR: HDR10
- Scaling Features: Yes
- HDMI Distance: up to 10 meters / 33 ft with Ecler VEO cables

Audio Performances:
- Audio Input Connectors: Toslink
- Audio Output Connectors: Audio Breakout
- Audio Formats: PCM 2Ch, PCM 5.1, PCM 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio
- Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Depth: up to 24-bit
- Frequency Response: 20Hz - 20KHz, ±3dB
- ARC/eARC: Yes

Device Control:
- Control Connectors: Jack 3.5mm, 3-pin Euroblock, Micro-USB
- Control Protocols: IR, RS-232
- Control Buttons: ARC On/Off button
- EDID Management: Multiple built-in EDID settings or customized through the FW port

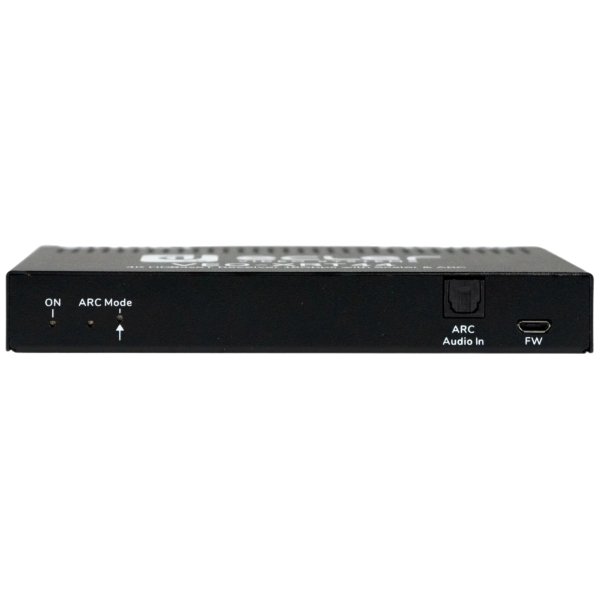

- Status Indicators: Power LED, ARC mode LEDs

Pass-Through Control:
- Pass-through Connectors: Jack 3.5mm
- Pass-through Protocols: IR, CEC

HDBaseT Specification:
- Transmission Distance:
  - CAT5e/6 @ 4K up to 35 m / up to 115 feet
  - CAT6a/7 @ 4K up to 40 m/ up to 130 feet
  - CAT5e/6 @ 1080p up to 60 m / up to 197 feet
  - CAT6a/7 @ 1080p up to 70 m / up to 230 feet

Electrical:
- Power supply: PoH; External: AC 100V - 240V @ 50-60Hz Output: DC 24V-1.25A
- DC mains connector: DC 24V connector
- Power consumption: 12W Maximum

Physical:
- Operating temperature: Min: -5°C ; 23°F / Max: 55°C ; 131°F
- Operating humidity: 10 to 90 % RH (no condensation)
- Storage temperature: Storage humidity
- Chassis material: Metal
- Finished colour: Black
- Dimensions (W x H x D): 140 x 20 x 84 mm
- Weight: 0.290 kg

Further Product Information Below

Ecler VEOXRT44 Driver Manual (PDF)

Ecler VEOXRT44 Data Sheet (PDF)

Ecler VEOXRT44 Technical Drawing (PDF)

Ecler VEO-XRT44 Supplied With

- 1x Ecler CVEOXRT44
- 2x RX Mounting Ears with 4 Screws
- 4x RX Rubber feet
- 1x RS232 Cable (3-pin to DB9)
- 1x Power Adapter (24V DC 1.25A)
- 1x Quick guide and warranty
