Ecler VIDA-16Q Digital Amplifier with Dante, AES67, DSP and Player - 4x 1600W @ 4 Ohms or 70V / 100V Line

Ecler VIDA-16Q Digital Amplifier with Dante, AES67, DSP and Player Features

- 4 amplified outputs VersaPower asymmetrical 1600W power management
- 4 Dante outputs and 4 Dante/AES67 inputs
- 2 auxiliary outputs
- 4 analogue inputs
- MicroSD/SDHC audio player
- Internal matrix and signal processing
- Web application for device configuration
- Smart power management VersaPower
- Control and scheduled events for automation
- Customized User Panels

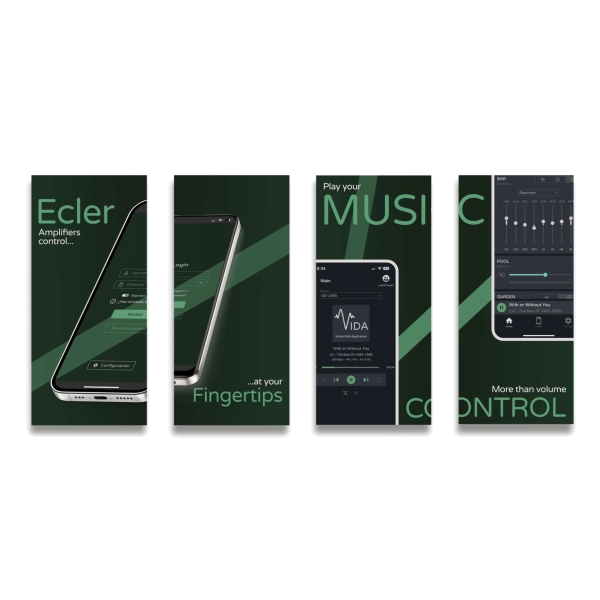

- Remote control user application for iOS/Android/Web
- Ultra low power consumption mode "Sleep Mode"

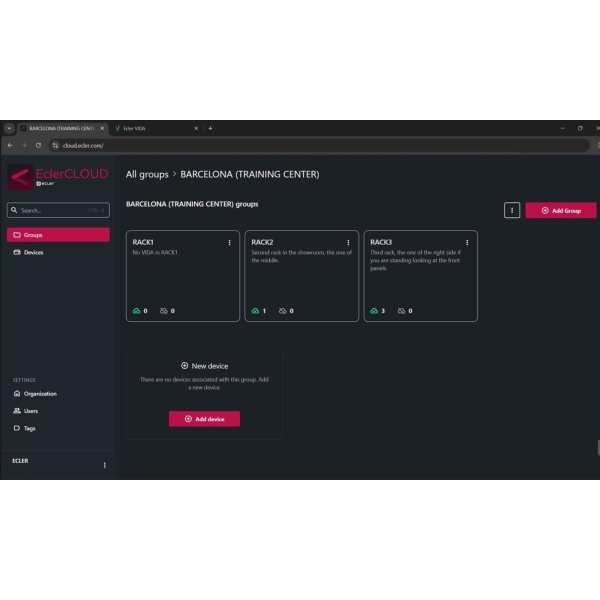

- Compatible with the Remote Monitoring & Control Platform EclerCLOUD

Ecler VIDA-16Q Digital Amplifier with Dante, AES67, DSP and Player Specifications

Channels:
- Number of output channels: 4
- Output connection type: 2-pin Euroblock. Pitch: 7.62mm Ref: DEGSON 5EDGRC-7.62
- Output configuration: Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω. Output mode selection per channel
- Number of input channels: 4 analogue input channels. 4 DANTE/AES67 Network Rx channels. 1 embedded player, 1 embedded signal generator
- Input connection type: Digital: Ethernet, managed via Dante/AES67 Controller Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3.5mm
- Input configuration: Digital matrix 4 in x 6 out

Auxiliar Outputs:
- Number of auxiliar outputs: 2
- Auxiliar output connection type: AUX1-2: 3-pin Euroblock, balanced

Digital Outputs:
- Number of digital outputs: 4
- Digital output connection type: Ethernet, managed via Dante/AES67 Controller

Versapower - Symmetrical All Channels Driven @1Khz @Cf9Db @ 1%Thd:
- Max output power @ 8Ω: 400W
- Max output power @ 4Ω: 400W
- Max output power @ 2Ω: 400W
- Max output power @ 100V: 400W
- Max output power @ 70V: 400W

Versapower - Asymmetrical Single Channel Driven @1Khz @Cf9Db @ 1%Thd:
- Max output power @ 8Ω: 1400W
- Max output power @ 4Ω: 1600W
- Max output power @ 2Ω: 1600W
- Max output power @ 100V: 1600W
- Max output power @ 70V: 1600W

Signal:
- Voltage gain: 28 to 40 dBV 30.2 to 42.2 dBu
- Input sensitivity: -6 to +6 dBV -3.78 to 8.2 dBu 0.5 to 2 Vrms
- Input impedance: >24kΩ
- Max input level: +18 dBV +20.2 dBu
- Frequency response: 15Hz-25kHz
- THD + Noise: < 0.1% 0.015 Typ
- SNR: 95 dBA
- Crosstalk: >80dB
- CMRR: >65 Typ
- Damping factor: >500

Electrical:
- Power supply: Universal, regulated SMPS with PFC
- AC mains requirement: 100-240V @ 50-60Hz (±10%)
- Power factor correction: > 0.96
- AC mains connector: IEC C14 inlet

Power & Heat @230Vac - ¼ Power, @ 4Ω (All Channels Driven):
- Power: 607W 640 VA
- Current Draw: 2.8 Arms
- Thermal Loss: 178.0kcal/h 706.5BTU/h

Power & Heat @230Vac - ⅛ Power, @ 4Ω (All Channels Driven):
- Power: 362W 414 VA
- Current Draw: 1,8 Arms
- Thermal Loss: 139.3kcal/h 552.9BTU/h

Power & Heat @230Vac - Idle:
- Power: 72W 122 VA
- Current Draw: 0.52 Arms
- Thermal Loss: 61.9 kcal/h 245.7 BTU/h

Power & Heat @230Vac - Standby/Sleep Mode:
- Power: 4.1W 23,8 VA
- Current Draw: 0.1 Arms
- Thermal Loss: 3.5 kcal/h 14 BTU/h

Technologies:
- Amplification technology: Class D
- Energy saving: Auto standby function programmable per channel Sleep Mode function selectable
- Efficiency: 68%
- Cooling: Fan
- Maximum fan noise: 53dB

DSP:
- Latency: 2.8 ms
- Digital processing: 32/64 bit
- Inputs processing: Noise gate, HPF, Freq. Shifter, compressor/limiter
- Outputs processing: Delay, Parametric EQ, Graphic EQ independent for every amp out and aux out Limiters independent for every amp out Smart VersaPower management
- Others: Preset management, Internal matrix, priority & backup signals managemnet, local & network groups, events management incl. calendar

Protections:
- DC protection: Yes
- HF protection: Yes
- Short-circuit protection: Yes
- Clip limiter: Yes
- Long term limiter: Yes
- Thermal protection: Yes

Remote Control Connections:
- ON / OFF: No
- GPIs: x4 GPIs (0-10V)
- GPOs: x4 NC / NO contacts
- External MUTE: Yes, contact

Local Control:
- Attenuators: Programmable Front panel knobs
- Output mode settings: Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω Output mode selection per channel
- RUN/SLEEP mode: Yes, front panel push-button
- Power ON/OFF: Yes, back panel switch

Connectivity:
- Ethernet: Ethernet Base-Tx 10/100/1000Mb Auto X-Over
- DANTE Protocol: Dante/AES67 4x Tx / 4x Rx channels (2/2 flows) Primary and secondary capability. RJ-45 ports (Settings by embedded web application)
- Programing and control: Embedded web application

Monitoring:
- Signal Present: SP LED (White) per channel
- Cliping: CLIP LED (Red) per channel
- Protect: PROT LED (Red) per channel
- Standby / Mute: STBY/MUTE LED (White) per channel
- Limit: LIMIT LED (Red) per unit
- Thermal: THERMAL LED (Red) per unit
- Dante: DANTE/AES67 LED (White) per unit
- Data: DATA LED (White) per unit
- On: ON LED (White) per unit

Digital Engine:
- Processor: Quad core 64bits 1.5GHz

Audio Converters:
- Sampling rate: 48kHz
- Resolution: 24 bit
- Dynamic range: 114dB

Real-Time Clock:
- Retention time: > 5 years
- Accuracy: ±1 minute / month
- Battery: VARTA CR2032 3V, 230mAh

Local Storage:
- Micro SD: SDXC
- Capacity: Up to 2TB
- File system: FAT16, FAT 32, VFAT (read/wirte) NTFS (read) Multi-partition up to 1
- Playable audio files: mp3, ogg, WAV, FLAC, AIFF
- Files analysis: 65354 playable folders 65354 playable folders within each folder 65354 playable files within each folder
- Folder hierarchy: Up to 8 containing the root directory
- Sorting: UNICODE, in alphabetical order Up to 100 folders / files by folder Folders/files over 100 sorted in the FAT order

Physical:
- Operating temperature: Min: -10?C ; 14?F Max: 50?C ; 122?F
- Operating humidity: 5 - 85% RH, non-condensing
- Storage temperature: Min: -10?C ; 14?F Max: 50?C ; 122?F
- Storage humidity: 5 - 85% RH, non-condensing
- Installation options: Rack 19-inch installation & desktop
- Dimensions (W x H x D): 482.6 x 88 x 410 mm
- Weight: 9.3 kg

Further Product Information Below

Ecler VIDA16Q Manual (PDF)

Ecler VIDA16Q Data Sheet (PDF)

Ecler VIDA16Q Manual (PDF)

Ecler VIDA-16Q Digital Amplifier with Dante, AES67, DSP and Player Supplied With

- 1x Ecler CVIDA16Q
- Mains cords
- Euroblock Connectors (inputs /outputs)
- Desktop feet
- 19-inch rack installation hardware
