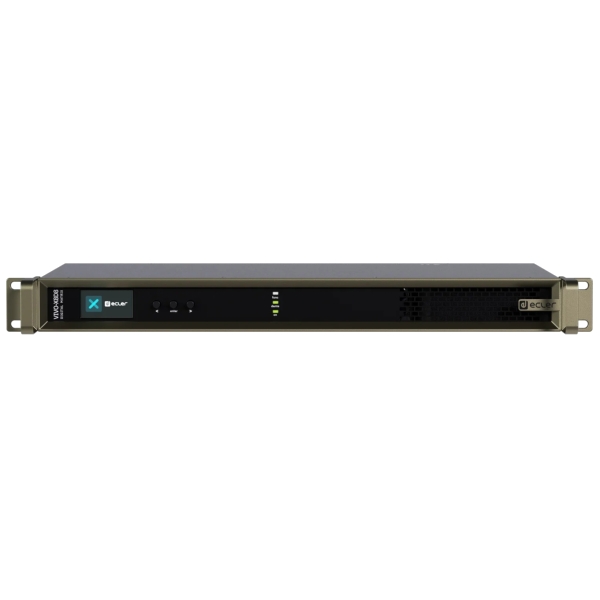

Ecler VIVO-X8D8 16x16 Expandable Audio Matrix with Dante/AES67

Ecler VIVO-X8D8 16x16 Expandable Audio Matrix Features

- EclerPLEX ecosystem host matrix unit.
- 8x MIC / LINE analogue audio input ports (+48V Phantom selectable per port).
- 8x LINE analogue audio output ports.
- 8x Dante/AES67 digital input ports (4 flows).
- 8x Dante/AES67 digital output ports (4 flows).
- 8x GPI ports.
- 8x GPO ports.
- 1x microSD card slot (for the 4 players).
- 2x X-link audio & control expansion ports (each port allows to locally connect an external BIO Series expansion unit).
- Scalable up to a 32x32 audio matrix size, including:
- 24x24 analogue audio ports (by adding 2x BIO-X8 or BIO-X8G units).
- 24x24 GPIO ports (by adding 2x BIO-X8 or BIO-X8G units).
- 8x8 digital audio ports (Dante/AES67).
- 2x Ethernet (NET1 control, NET2 Control + Dante/AES67).
- 1x RS-232 control port.
- 1x 1.9-inch Colour TFT Display.
- Flexible processing structure (allows for custom-size matrix size matrices and custom-DSP power projects).
- Embedded EclerPLEX application that includes:
- A Workspace, including multiple types of custom-size simultaneous projects running simultaneously, events, calendars, presets and more.
- An editor, manager and server of User Control Panels.
- Scripting automation & control system.
- 4 Internal SW audio players.
- 2 Internal audio generators.
- EclerCLOUD monitor and control native device.
- Auto update feature

* The hardware is designed to support all the features described in this document. Some are available from version 1.0, while others will be enabled progressively through future software updates

Ecler VIVO-X8D8 16x16 Expandable Audio Matrix Specifications

Digital Engine:
- Processor: Quad core 64bits 1,5GHz

Audio Converters:
- Sampling rate: 48kHz
- Resolution: 32 bit
- Latency: 3.87ms
- Frequency response: 10Hz to 20kHz (-0.5dB)
- Dynamic range: ADC:115dB, DAC: 115dB

Analogue Audio Input Ports:
- Number of input ports: 8, MIC/LINE level
- Connection type: Euroblock, 3-pin, balanced
- Input sensitivity: -32.5 dBV to +18.5 dBV -30.3 dBu to +20.7 dBu
- Input impedance: 8kΩ (balanced), 4kΩ (unbalanced)
- Max input level: 18.5 dBV / 20.7dBu
- Mic preamp EIN: <-129.5 dBV <-127.3 dBu
- Dynamic range: Gain 0dB: >110.2dB; Gain 21dB: >109.5dB; Gain 42dB: >105.5dB; Gain 51dB: >99.5dB
- THD + Noise:
  - Gain 0dB & Vin 0 dBV: 0.0025%
  - Gain 21dB & Vin -21 dBV: 0.0026%
  - Gain 42dB & Vin -42 dBV: 0.0044%
  - Gain 51dB & Vin -51 dBV: 0.0085%
  - Gain 0dB & Vin +17 dBV: 0.0010%
  - Gain 21dB & Vin -4 dBV: 0.0015%
  - Gain 42dB & Vin -25 dBV: 0.0010%
  - Gain 51dB & Vin -34 dBV: 0.0015%
- CMRR: >70dB typ (1kHz) >60dB typ (20Hz - 20kHz)
- Phantom power: +48VDC, 10mA per input max

Analogue Audio Output Ports:
- Number of output ports: 8, LINE level
- Connection type: Euroblock, 3-pin, balanced
- Max output level: 18.5dBV / 20.7dBu
- Output impedance: 300Ω (balanced), 150Ω (unbalanced)
- Dynamic range: > 112.5dB
- Crosstalk: > 95dB

Audio Over IP:
- Protocols: Dante/AES67 (4/4 flows)
- Number of digital input ports: 8
- Number of digital output ports: 8
- Interfaces: 1x RJ-45 - NET2

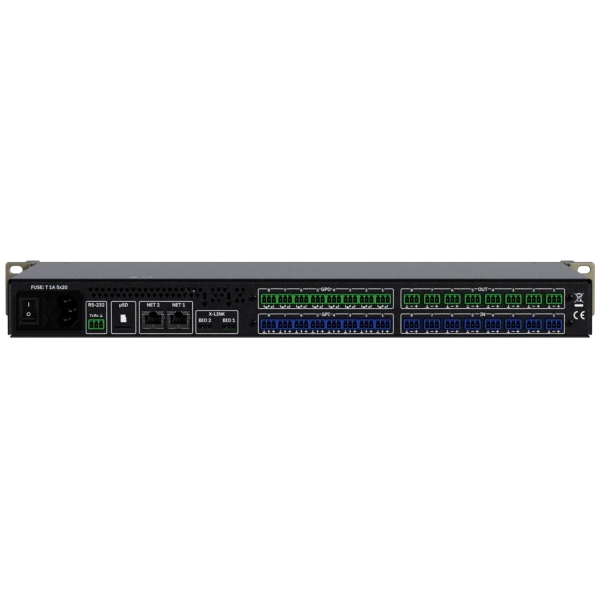

Connectivity:
- Ethernet: 2, RJ-45 connector NET1 & NET2 (no switch capability)
- X-LINK: 2, X-LINK ports. USB-C connector
- Serial port: RS-232, Euroblock, 3-pin connector
- Programing and control: EclerPLEX (Web application), TPNET (UDP/RS232), UCP control panelsA

Remote Control Connections:
- GPIs: 8, 0 to 12VDC
- GPOs: 8, 3 poles isolated relay; Contact rating: 2A, 30VDC; 0.5A, 125 VAC

Real-Time Clock:
- Retention time: > 5 years
- Accuracy: ±1 minute / month

Local Storage:
- Micro SD: SDXC
- Capacity: Up to 2TB
- File system: FAT16, FAT 32, VFAT (read/write) NTFS (read) Multi-partition up to 1
- Playable audio files: mp3, ogg, WAV, FLAC, AIFF
- Files analysis: 65354 playable folders 65354 playable folders within each folder 65354 playable files within each folder
- Folder hierarchy: Up to 8 containing the root directory
- Sorting: UNICODE, in alphabetical order Up to 100 folders / files by folder Folders/files over 100 sorted in the FAT order

Electrical:
- Power supply: Internal. Universal, regulated switching mode supply
- AC mains requirement: 100-240 VAC @ 50-60Hz
- AC mains connector: IEC C14 inlet
- Power consumption: <19W Typ, <23.5W Max <36 VA, <41.5 VA Max
- Heat load: <65 BTU/h Typ, <80 BTU/h Max
- Ventilation: FAN

Physical:
- Operating temperature: Min: 0°C ; 32°F Max: 50°C ; 122°F
- Operating humidity: 5-85% RH, non-condensing
- Storage temperature: Min: 0°C ; 32°F Max: 50°C ; 122°F
- Storage humidity: 5-85% RH, non-condensing
- Installation options: Desktop, 19-inch racks (1RU)
- Dimensions (W x H x D): 482.4 x 44 x 214 mm
- Weight: 3.2 kg

Further Product Information Below

Ecler VIVOX8D8 Manual (PDF)

Ecler VIVOX8D8 Data Sheet (PDF)

Ecler VIVOX8D8 Manual (PDF)

Ecler VIVO-X8D8 16x16 Expandable Audio Matrix Supplied With

- 1x Ecler CVIDA24Q
- 1x EU Mains cord
- 1x Multiplug Mains cord
- 4x Washers
- 4x Rubber feet
- 17x Euroblock connectors (green colour)
- 16x Euroblock connectors (blue colour)
- 2 USB holders
- 2x Screws
