Ecler WPa-BT Bluetooth Wall Panel Receiver for eMCONTROL1 / HUB Series

Name: Ecler WPa-BT Bluetooth Wall Panel Receiver for eMCONTROL1 / HUB Series
Brand: Ecler
Price: 209.71 GBP
Availability: InStock

Price Each £174.76 (£209.71 Including VAT at 20%)

REF: JP115417

Quantity:

Ecler WPa-BT Bluetooth Wall Panel Receiver for eMCONTROL1 / HUB Series

The Ecler WPaBT Bluetooth Wall Panel Receiver is a Class 1 Bluetooth receiver with balanced stereo Euroblock output. Surface-mount installation box included (WxHxD = 86 x 86 x 38mm). WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.

Click Here for Printer Friendly Version

Ecler WPa-BT Bluetooth Wall Panel Receiver Features

- Bluetooth receiver in WPa wall panel format (standard UE).
- Bluetooth class 1 (range 25m), version V5.0. A2DP profile.
- Balanced stereo Euroblock output dual-mono configurable.
- PAIR button with blue LED activity indicator. This can be turned off in dark rooms so as not to disturb.
- Easy device name configuration, PIN, stereo/mono output and other adjustments via the Ecler Bluetooth Manager application for Windows devices.
- External 24VDC power supply (WP24-PSU, optional), via terminal strip or via eMCONTROL1 power supply bus
- GPO: to indicate that an A2DP audio connection is active (automatic priority management)
- USB-C configuration port: not visible, behind the front cover. Easily accessed by removing only the front cover; it is not necessary to remove the device from the wall. USB-C cable not included
- Compatible with round electrical boxes that are 60mm in diameter.
- Surface mounting box included
- Compatible with WPa2FMBOX and WPa2SMBOX mounting boxes
- It can be combined with an eMCONTROL1 to work as a remote audio input for HUB Series digital zoner

Ecler WPa-BT Bluetooth Wall Panel Receiver Specifications

- Type: Bluetooth Receiver
- Format: Double Gang EU Forma
- Installation options: Surface, In-wall
- Enclosure material: Zincor front panel, plastic frame
- Operating temperature: Min: 0°C ; 32°F Max: 35°C ; 95°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 50°C ; 122°F
- Storage humidity: <90% HR
- Included accessories:
- Optional accessories: WP-PSU 24V
- Finished colour: White (RAL 9003)
- Dimensions (W x H x D): 86 x 86 x 25 mm
- Weight: 0.14 kg
- Pieces per box: 1 unit

Further Product Information Below

Ecler WPa-BT Manual (PDF)

Ecler WPaBT Data Sheet (PDF)

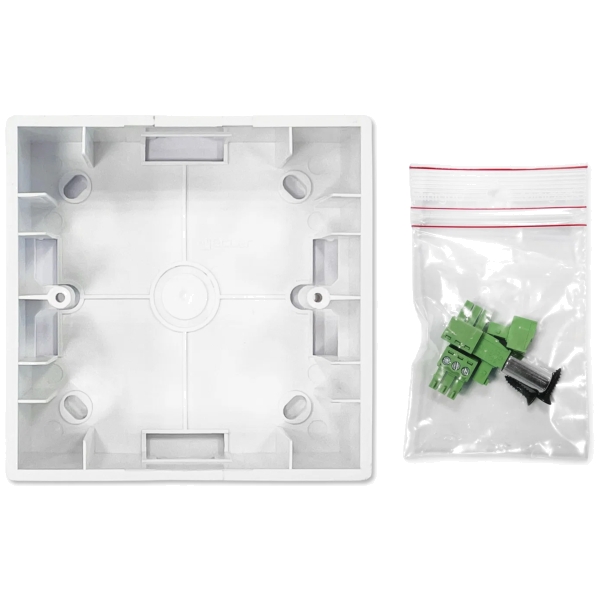

Ecler WPa-BT Bluetooth Wall Panel Receiver Supplied With

- 1x Ecler CWPABT
- Euroblock connectors
- Surface mount box
- Warranty card
- Getting started card
- Magnet and Screws

Please Note: Images are representative only. Final product may vary.
