Ecler WPaMIX-T Remote Wall Input Panel with Micro Mixer, Mic/Line Input & Talkover

Name: Ecler WPaMIX-T Remote Wall Input Panel with Micro Mixer, Mic/Line Input & Talkover
Brand: Ecler
Price: 124.76 GBP
Availability: InStock

Price Each £103.97 (£124.76 Including VAT at 20%)

REF: JP115420

Quantity:

Ecler WPaMIX-T Remote Wall Input Panel with Micro Mixer, Mic/Line Input & Talkover

The Ecler WPaMIXT Remote Wall Input Panel is a 2-channel micro-mixer which keeps the wall-panel format of the WPa series. It allows mixing a stereo unbalanced signal (2xRCA) with MIC signal (XLR), getting a balanced mono output that can be sent to preamplifiers, amplifiers, digital or analogue matrix, etc., thus saving inputs in the receiver device.

The MIC input includes a 2 band EQ (Bass, Treble) and it can use the talk-over function to override the line signal when the microphone exceeds the talk-over detection signal.

WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.

Click Here for Printer Friendly Version

Ecler WPaMIX-T Remote Wall Input Panel Features

- Unbalanced stereo line input (2xRCA)
- Balanced MIC input with BASS and TREBLE controls and selectable Phantom power
- Independent volume controls for LINE and MIC inputs
- Talk-over function available (MIC over LINE)
- External PSU required (15 VDC or 24VDC). Compatible with WP24-PSU power supply unit
- It can be combined with an eMCNTROL1 to work as a remote audio input for HUB Series digital zoner or eMIMO1616 digital matrix
- Surface-mount box included

Ecler WPaMIX-T Remote Wall Input Panel Specifications

- Input Sensitivity/Impedance:
  - Line: -10dBV / 10kΩ
  - Mic: -40 or -20dBV* / >1kΩ
- Output Level/ Minimum Load: 0dBV / 600Ω (max. +17dBV)
- Frequency Response:
  - Line: 5Hz - 30kHz
  - Mic: 10Hz - 40kHz
- THD:
  - Line: <0.005%
  - Mic: <0.01%
- CMRR Mic: >55dB @ 1kHz
- Signal Noise Ratio:
  - Line: >105dB
  - Mic: >l;90dB
- Tone Control:
  - Bass: 100Hz ± 10dB
  - Treble: 10kHz ± 10dB
- Talk-over: -30dB/ 3s aprox.
- Phantom voltage: +15VDC
- External power supply: 15VDC (min. 30mA) or 24VDC (min. 30mA)
- Recommended external power supply: Ecler WP24-PSU
- Power Consumption: 25mA
- Finished colour White: (RAL 9016)
- Dimensions (W x H x D): 86 x 86 x 30 mm
- Weight: 0.13 kg
- Pieces per box: Unit

Further Product Information Below

Ecler WPa-Series Manual (PDF)

Ecler WPaMIXT Data Sheet (PDF)

Ecler WPaMIX-T Remote Wall Input Panel Supplied With

- 1x Ecler CWPAMIXT
- Euroblock connector

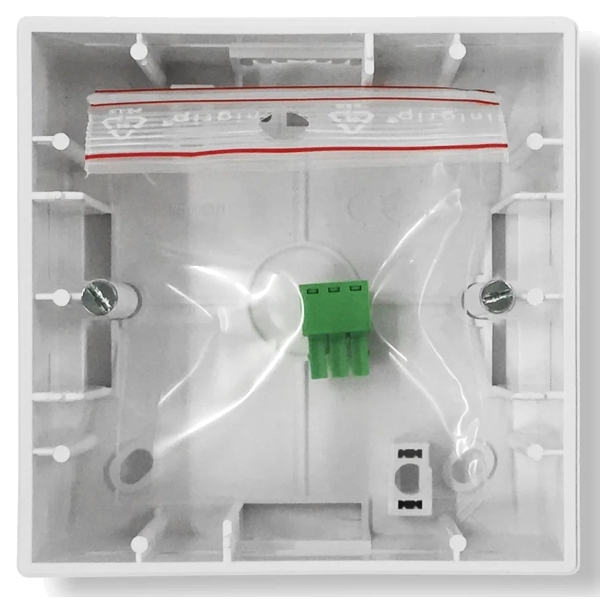

- Surface mount box

Please Note: Images are representative only. Final product may vary.
